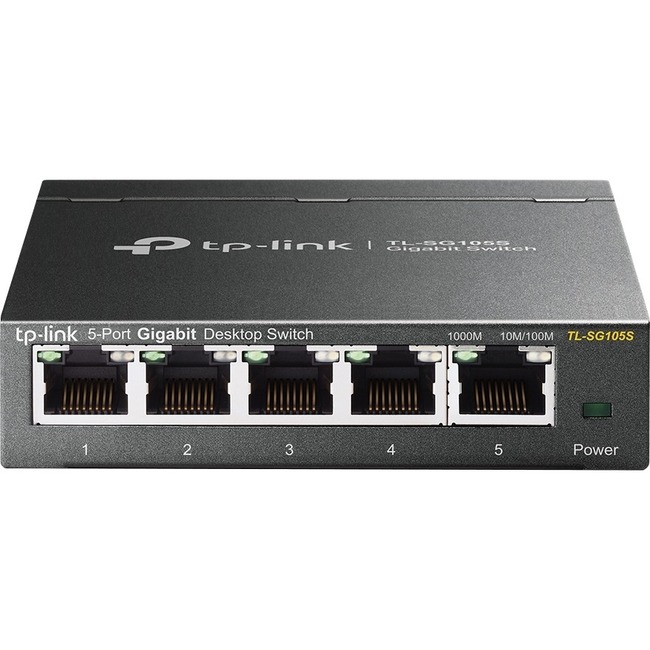

TP-Link 5-Port 10/100/1000Mbps Desktop Switch
| $16.67 Retail $19.99 |
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Gigabit Ethernet port for ultra-fast network speeds
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- The desktop installation makes it ideal for deployments outside the wiring closet
5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - Power Adapter - 2.40 W Power Consumption - Twisted Pair - Desktop, Wall Mountable - Lifetime Limited Warranty
Product Specifications
| Product Material | Metal |
| Total Number of Network Ports | 5 |
| Brand Name | TP-Link |
| Country of origin | Vietnam |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Desktop |
| Form factor | Wall Mountable |
| Height | 1" |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Manageable | No |
| Manufacturer | TP-LINK Technologies Co. Ltd |
| Manufacturer Part Number | TL-SG105S |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | What This Product Does The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections or make Gigabit to the desktop a reality. Plug and Play design with no configuration required makes the product easy to use. Moreover TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology the TL-SG105S can save power consumption making it an eco-friendly solution for your home or office network. Gigabit Switch Featured with 5 10/100/1000Mbps ports TL-SG105S greatly expands your network capacity enabling instant large files transferring. So power users in the home office workgroup or creative production environment can now move large bandwidth-intensive files faster. Transfer graphics CGI CAD or multimedia files across the network instantly. Go Green With Your Ethernet You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. Traffic Optimization 802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video and IGMP Snooping optimizes the Multicast data stream. Easy to use The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover fanless design ensures quiet operation. |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3i |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3x |
| Package Contents |
|
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Power consumption | 2.40 W |
| Power source | Power Adapter |
| Product Name | 5-Port 10/100/1000Mbps Desktop Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 845973083519 |
| Width | 3.9" |
