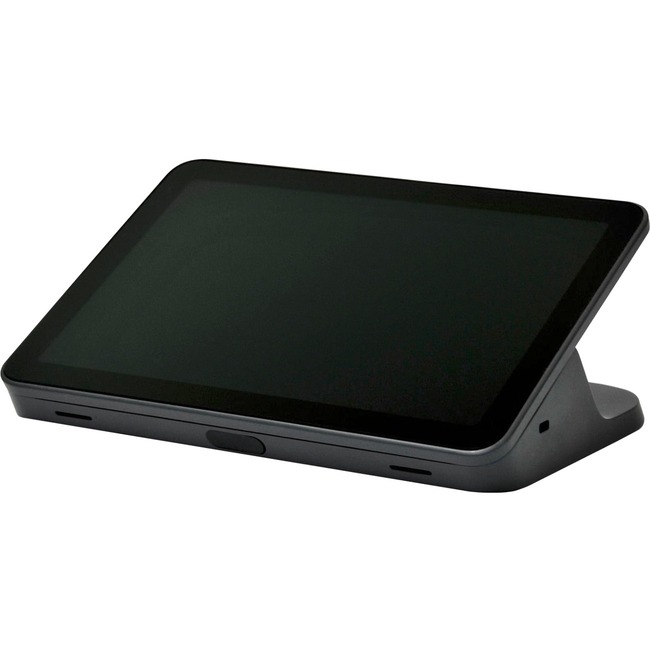

Mimo Monitors MY-1090CV 10.1" LCD Touchscreen Monitor - 10" Class - Projected Capacitive - 1280 x 800 - WXGA - 400 Nit - Speakers - HDMI - USB - Gray - RoHS
10" Class - Projected Capacitive - 1280 x 800 - WXGA - 400 Nit - Speakers - HDMI - USB - Gray - RoHS
| Touchscreen Type | Projected Capacitive |
| Brand Name | Mimo Monitors |
| Brightness | 400 Nit |
| Depth | 3.9" |
| Environmental Certification | RoHS |
| Features | Ambient Light Sensor |
| Features | Cable Lock Slot |
| Features | 3H Surface Hardness |
| Features | Anti-glare |
| Height | 6.3" |
| Horizontal Viewing Angle | 170° |
| Manufacturer | Mimo Monitors Inc |
| Manufacturer Part Number | MY-1090CV |
| Manufacturer Website Address | http://www.mimomonitors.com |
| Marketing Information | Designed with today's modern conference room in mind the 10.1" Mimo Myst Link is the First AV over-IP display with HDMI capture that features easy-to-use Ethernet connectivity (CAT5e) with PoE allowing for installation up to 100 meters from the PC without the hassles of extenders complicated installation and needing power at the table. This means the Myst Link provides unparalleled convenience ultimate flexibility and an unmatched price point.
Sleek and sophisticated with a high-end low-profile design this innovative conference room solution is recognized by PCs as a regular display maximizing usable space and productivity without increasing complexity and IT requirements. Due to its ubiquitous cabling which also supplies power (no power at the table needed!) it is seamless for IT to set up and simple to maintain cutting long-term costs and the need for technical know-how. Since it also allows for long distance installations it paves the way for flexible and moveable furniture configurations necessary for today's evolving work environment. In addition the capacitive touch display provides a USB connection through to the host computer for connecting hardware such as a speaker/mic without requiring any additional extenders cables or power.
Features
- AV-over-IP connected 1280x800 touch display that is recognized by PCs as a regular display.
- 2 piece solution (Display at the table and box at the PC connected via Ethernet).
- Compatible with Windows 8 (and higher) Linux Chrome and Mac OS.
- Integrated HDMI Capture up to 1080p in standard UVC and UAC protocol for wide software support.
- Can transmit 4k video from display side to PC side.
- USB input to optionally USB accessories such as a speaker/mic
Applications
- Conference rooms.
- Control interface where HDMI capture is needed
|
| Maximum resolution | 1280 x 800 |
| Mount Type | Desk Mountable |
| Mount Type | Wall Mountable |
| Native Contrast Ratio | 1000:1 |
| Operating Power Consumption | 16 W |
| Placement | Tabletop |
| Product color | Gray |
| Product Name | 10.1" Myst Link Capacitive Touch Display |
| Product Type | LCD Touchscreen Monitor |
| Screen Mode | WXGA |
| Screen Size Class | 10" |
| Speakers | Yes |
| Viewable Screen Size | 10.1" |
| Weight (Approximate) | 3.20 lb |
| Width | 9.9" |
