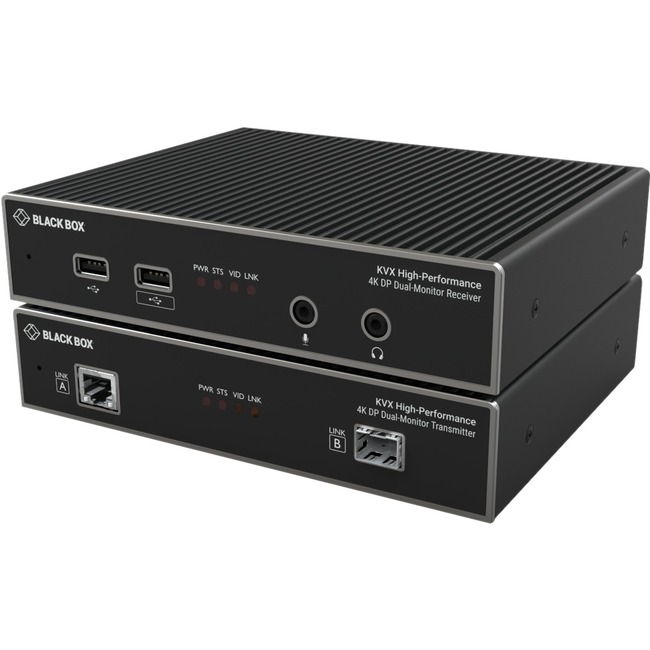

Black Box KVXHP-200 KVM Extender - 2 Computer(s) - 2 Local User(s) - 13123.36 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 6 x USB - DisplayPort - 12 V DC Input Voltage - Rack-mountable - 1U - TAA Compliant
2 Computer(s) - 2 Local User(s) - 13123.36 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 6 x USB - DisplayPort - 12 V DC Input Voltage - Rack-mountable - 1U - TAA Compliant
| Receiver Weight (Approximate) | 2.73 lb |
| Transmitter Depth | 5.83" |
| Transmitter Height | 1.54" |
| Transmitter Weight (Approximate) | 2.84 lb |
| Transmitter Width | 7.32" |
| Brand Name | Black Box |
| Connectivity technology | Wired |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Form factor | Rack-mountable |
| Graphic Mode | 4K |
| Input voltage | 12 V DC |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVXHP-200 |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | True Plug and play High-Performance point-to-point KVM extension. Using DisplayPort 1.2 KVXHP-200 supports dual monitor setups with up to 4096x2160 @ 60Hz using 8 bits per color 4:4:4 chroma sampling and High-Speed Transparent USB 2.0 - all transmitted over a single cable. Whether your requirements are CATx or fiber KVXHP is equipped to handle both interfaces providing a single solution for all use cases. 19" Rackmount Option
The optional rackmount tray (KVXHP-RMK) holds up to two KVX-HP extender units for quick mounting into any 19" rack and leaves enough space to hold the power supplies and cable management. To concentrate multiple KVM extensions in your rack use our Central Power Hub solution (ACR1000-CPH8R-R2/ ACR1000-CPH16R-R2) for a clutter-free space-saving installation in 1RU. The hub powers up to eight or sixteen 12VDC devices replacing multiple single power supplies. Single-head models for two monitor connections or quad-head models with support for four DisplayPort monitors are also available. |
| Maximum Operating Distance | 13123.36 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Microphone | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 6 |
| Package Contents | - 1 x Transmitter
- 1 x Receiver
- 2 x 12V 1.5A Power Supply
- 2 x DisplayPort cables M/M 1.8m (6 ft.)
- 2 x USB Type A to B cables M/M 1.8m (6 ft.)
- 1 x 3.5mm audio cable MM 3m (10 ft.)
- 2 x US Power Cords
|
| Product Name | KVXHP-200 KVM Extender |
| Product Series | KVXHP |
| Product Type | KVM Extender |
| Rack Height | 1U |
