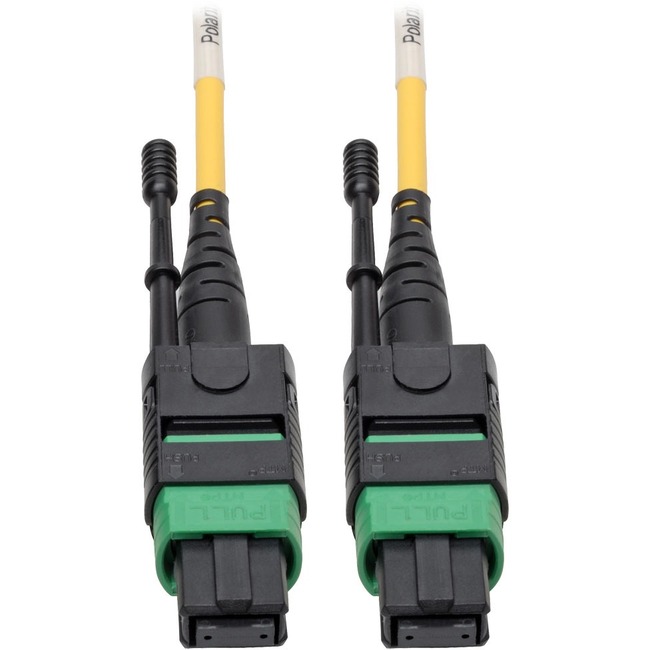

Tripp Lite MTP/MPO (APC) SMF Fiber Patch Cable 12 Fiber QSFP+ 40/100Gbe 2M
| $193.77 Retail $302.40 |
- Push/pull tab connectors easily install/remove with one hand
- 12-fiber MTP/MPO connectors with 12x density of SC connectors
- 100% tested for low insertion loss and back reflection
- Angled APC connectors protect laser against destabilization
- Yellow color for easy singlemode identification
Fiber Optic for Network Device, Switch, Hub, Router, Patch Panel - 12.50 GB/s - Patch Cable - 6.56 ft - 1 x MTP/MPO Female Network - 1 x MTP/MPO Female Network - 8.3/125 µm - Yellow
Product Specifications
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector Type on First End | MTP/MPO Network - Female |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Cable Characteristic | Patch Cable |
| Cable Characteristic | Patch Cable |
| Cable length | 6.60 ft |
| Cable length | 6.60 ft |
| Cable type | Fiber Optic |
| Cable type | Fiber Optic |
| Color | Yellow |
| Color | Yellow |
| Connector on First End | MTP/MPO Female Network |
| Connector on First End | MTP/MPO Female Network |
| Connector on First End | 1 x MTP/MPO Female Network |
| Connector on First End | 1 x MTP/MPO Female Network |
| Core/Cladding Diameter | 8.3/125 µm |
| Core/Cladding Diameter | 8.3/125 µm |
| Country of origin | China |
| Country of origin | China |
| Data transfer rate | 100 Gbit/s |
| Data transfer rate | 100 Gbit/s |
| Device Supported | Network Device |
| Device Supported | Switch |
| Device Supported | Patch Panel |
| Device Supported | Router |
| Device Supported | Router |
| Device Supported | Network Device |
| Device Supported | Switch |
| Device Supported | Patch Panel |
| Device Supported | Hub |
| Device Supported | Hub |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Features | Angled Connector |
| Features | Angled Connector |
| Fiber Optic Mode | Single-mode |
| Fiber Optic Mode | Single-mode |
| Limited Warranty | Lifetime |
| Limited Warranty | Lifetime |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | N39002M12AP |
| Manufacturer Part Number | N390-02M-12-AP |
| Manufacturer Part Number | N390-02M-12-AP |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The N390-02M-12-AP MTP/MPO Singlemode Patch Cable (F/F) supports 40/100 Gb Ethernet speeds and is designed for QSFP+ applications in enterprise installations in wiring closets telecom rooms and data centers. With two female MTP/MPO connectors this singlemode fiber optic cable with plenum-rated jacket is recommended for connecting switches hubs routers and other high-speed network components in ceilings walls and ducts. |
| Marketing Information | The N390-02M-12-AP MTP/MPO Singlemode Patch Cable (F/F) supports 40/100 Gb Ethernet speeds and is designed for QSFP+ applications in enterprise installations in wiring closets telecom rooms and data centers. With two female MTP/MPO connectors this singlemode fiber optic cable with plenum-rated jacket is recommended for connecting switches hubs routers and other high-speed network components in ceilings walls and ducts. |
| Product color | Yellow |
| Product Model | N390-02M-12-AP |
| Product Name | N390-02M-12-AP MTP/MPO Singlemode Patch Cable (F/F) Yellow 2 m |
| Product Name | N390-02M-12-AP MTP/MPO Singlemode Patch Cable (F/F) Yellow 2 m |
| Product Type | Network Cable |
| Product Type | Network Cable |
| UPC Alternates | 037332205353 |
| UPC Alternates | 037332205353 |
