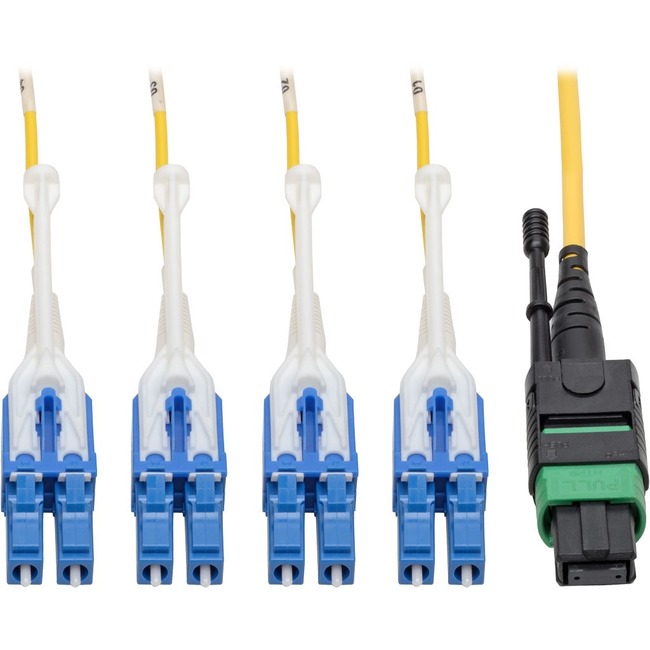

Tripp Lite MTP/MPO (APC) to 8xLC SMF Fiber Breakout Cable QSFP+ 40/100Gb 5M
New
Tripp Lite MTP/MPO (APC) to 8xLC SMF Fiber Breakout Cable QSFP+ 40/100Gb 5M - Fiber Optic for Network Device, Switch, Hub, Router - 12.50 GB/s - Patch Cable - 16.40 ft - 1 x MTP/MPO Female Network - 8 x LC Male Network - 8.3/125 µm - Yellow
| $225.46 Retail $352.00 |
- Push/pull tab connectors install/remove with one hand
- 12-fiber MTP/MPO connectors with 12x density of SC connectors
- Slim space-saving uniboot design for easy cable management
- Angled APC connectors protect laser against destabilization
- Yellow color for quick singlemode identification
You may be also interested
$413.32
$700.00
$85.05
$144.00
$29.52
$50.00
$1,171.33
$1,942.65
$1.83
$320.00
$80.58
$133.64
$63.75
$82.00
$155.15
$198.00
$6,056.12
$8,370.00
$75.29
$91.45
$2.60
$6.11
$141.77
$240.00
$126.29
$162.00
$4.76
$13.99
$27.66
$35.00
$98.63
$142.00
$223.71
$286.00
$389.92
$660.00
$100.65
$170.00
$25.26
$32.00
Tripp Lite MTP/MPO (APC) to 8xLC SMF Fiber Breakout Cable QSFP+ 40/100Gb 5M - Fiber Optic for Network Device, Switch, Hub, Router - 12.50 GB/s - Patch Cable - 16.40 ft - 1 x MTP/MPO Female Network - 8 x LC Male Network - 8.3/125 µm - Yellow
Fiber Optic for Network Device, Switch, Hub, Router - 12.50 GB/s - Patch Cable - 16.40 ft - 1 x MTP/MPO Female Network - 8 x LC Male Network - 8.3/125 µm - Yellow
Fiber Optic for Network Device, Switch, Hub, Router - 12.50 GB/s - Patch Cable - 16.40 ft - 1 x MTP/MPO Female Network - 8 x LC Male Network - 8.3/125 µm - Yellow
Product Specifications
| Brand Name | Tripp Lite |
| Cable Characteristic | Patch Cable |
| Cable length | 16.40 ft |
| Cable type | Fiber Optic |
| Color | Yellow |
| Connector on First End | MTP/MPO Female Network |
| Connector on First End | 1 x MTP/MPO Female Network |
| Connector on Second End | 8 x LC Male Network |
| Connector on Second End | LC Male Network |
| Core/Cladding Diameter | 8.3/125 µm |
| Country of origin | China |
| Data transfer rate | 100 Gbit/s |
| Device Supported | Network Device |
| Device Supported | Switch |
| Device Supported | Router |
| Device Supported | Hub |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Slimline |
| Features | Uniboot Connector |
| Features | Angled Connector |
| Fiber Optic Mode | Single-mode |
| Limited Warranty | Lifetime |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | N390-05M-8LC-AP |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The N390-05M-8LC-AP MTP/MPO to 8xLC Singlemode Breakout Patch Cable supports 40/100 Gb Ethernet speeds and is designed for high-density fiber patching between data center MDFs (main distribution frames) and IDFs (intermediate distribution frames) in enterprise installations. It's optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks. Its plenum-rated jacket makes it ideal for connecting switches hubs routers and other high-speed network components in ceilings walls and ducts. The 12-fiber MTP/MPO connector is about the same size as an SC connector but is 12 times denser freeing up rack space for other cables. The APC connector is angled to prevent infrared light entering the fiber from bouncing back into the laser. The N390-05M-8LC-AP is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. The N390-05M-8LC-AP uses eight fibers to fully transmit 40GBASE-PLR4 with four fibers transmitting at 10 Gbps in each direction. Its slim space-saving uniboot design allows easier cable management. The LC UPC connector's premium-grade ceramic ferrule is designed for fast applications of 10 GbE and higher. The singlemode cable is colored yellow for instant identification in a crowded switch or patch panel. Push/pull tab connectors are easily accessible in high-density data center environments and make the plug-and-play cable easy to install and remove with one hand. |
| Product Name | N390-05M-8LC-AP MTP/MPO to 8xLC Singlemode Breakout Patch Cable Yellow 5 m |
| Product Type | Network Cable |
| UPC Alternates | 037332205605 |
