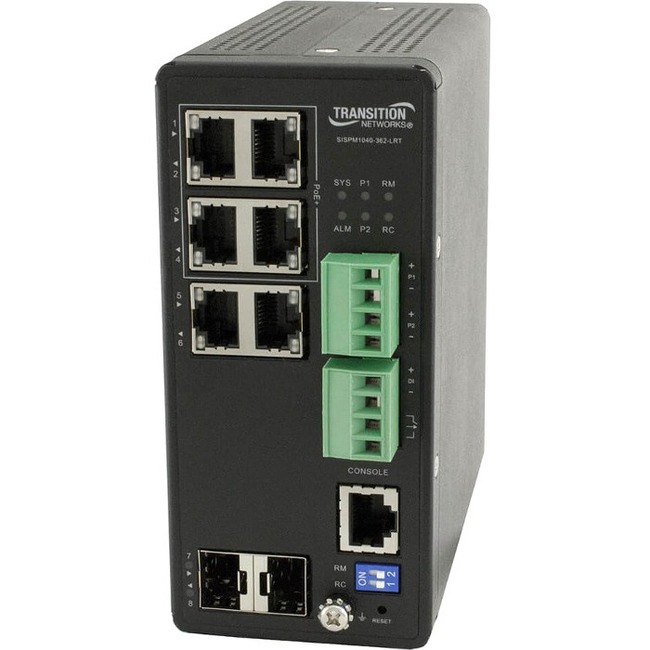

Transition Networks Managed Hardened PoE+ Switch
| $772.92 Retail $1,057.35 |
- Store-and-Forward Architecture with 16 Gbps Switching Bandwidth
- Supports Jumbo frames up to 9.6K Bytes
- Ring Protections: Industry standard G.8032 Ethernet Ring Protection Switching (ERPS), Support G.8031 Ethernet Linear Protection Switching (EPS), Rapid Ring with recovery time less than 20ms
- Radius, TACACS+, User Authentication
- Supports LLDP Protocol
- HTTPS/SSH v1/v2 Network Security
- Temperature Detection and Alarm
- Support HW Watchdog to resume operation from CPU hang up
- IEEE 1588 v2 PTP
- Port Mirroring
6 Ports - Manageable - 2 Layer Supported - Modular - 2 SFP Slots - Twisted Pair, Optical Fiber - 5 Year Limited Warranty
Product Specifications
| Total Number of Network Ports | 6 |
| Brand Name | Transition Networks |
| Country of origin | Taiwan |
| Depth | 5.3" |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Height | 5.4" |
| Layer Supported | 2 |
| Limited Warranty | 5 Year |
| Manageable | Yes |
| Manufacturer | Transition Networks Inc |
| Manufacturer Part Number | SISPM1040-362-LRT |
| Manufacturer Website Address | http://www.transition.com |
| Marketing Information | The SISPM1040-362-LRT is a full managed PoE+ switch suitable for connecting and powering devices in hardened environments. The switch can supply up to 30 Watts per port on all four PoE ports simultaneously. The switch also includes the embedded Device Management System (DMS) software that provides the advanced tools necessary for total management of all IP addressable devices. The unique DMS provides security integrators with lower overall cost less downtime and easier management of the entire PoE+ network. Transition Networks' hardened switches are certified to operate reliably in harsh environments such as those found on factory floors outdoor enclosures or other challenging environments. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-T |
| Port/Expansion Slot Details | 6 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Power source | Power Supply |
| Product Name | Managed Hardened PoE+ Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 648177041152 |
| Uplink Port | No |
| Weight (Approximate) | 2 lb |
| Width | 2.4" |
