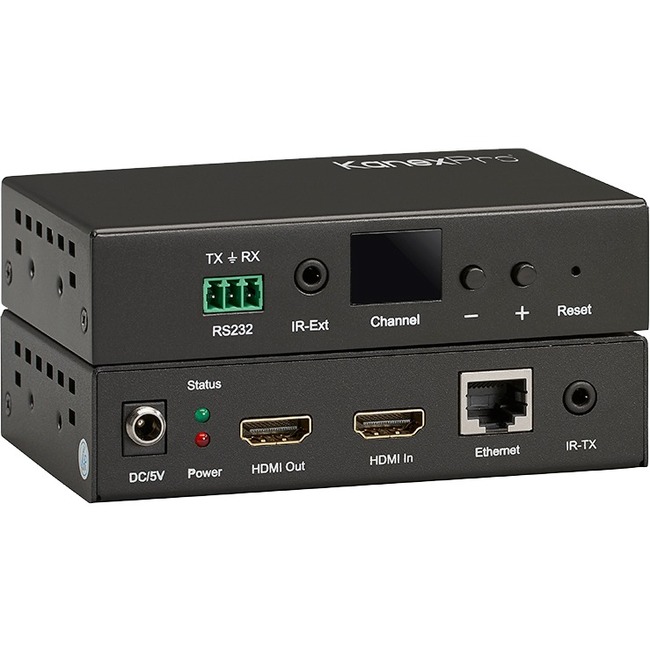

KanexPro NetworkAV H.264 HDMI Transmitter over IP w/ POE & RS-232
| $212.69 Retail $314.95 |
- Encode and extend pure 1080p resolutions up to 394' / 120 meters
- Features real-time AV coding and decoding to broadcast 1080p
- H.264 Compression technology
- Can be used with DVI connection
- Supports one to many, many to many and point to point broadcasting
- Dual power input: 802.3af compliant w/ POE & DC 5V
- (No need power supply when connecting with POE Switch)
- Can be cascaded to multiple AV over IP Extenders
- Support LPCM audio format
- Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP)
1 Input Device - 393.70 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - Rack-mountable
Product Specifications
| Network (RJ-45) | Yes |
| Network (RJ-45) | Yes |
| Transmitter Depth | 3.13" |
| Transmitter Depth | 3.13" |
| Transmitter Height | 1.10" |
| Transmitter Height | 1.10" |
| Transmitter Weight (Approximate) | 9.88 oz |
| Transmitter Weight (Approximate) | 9.88 oz |
| Transmitter Width | 4.69" |
| Transmitter Width | 4.69" |
| Connectivity technology | Wired |
| Connectivity technology | Wired |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Graphics Modes | Full HD |
| Graphics Modes | Full HD |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | KanexPro |
| Manufacturer | KanexPro |
| Manufacturer Part Number | EXT-AVIPH264TX |
| Manufacturer Part Number | EXT-AVIPH264TX |
| Manufacturer Website Address | http://www.kanexpro.com |
| Manufacturer Website Address | http://www.kanexpro.com |
| Marketing Information | The KanexPro EXT-AVIPH264TX is an AV over IP transmitter with an HDMI input and Ethernet out which uses advanced H.264 compression algorithm to transmit full HD 1080p from HDMI based sources with less bandwidth over LAN network. It supports PoE (power over Ethernet) with distances over a single CATx up to 394 ft. (120m) delivering one to one one to many and many to many over the Ethernet switch. Applications: Ideal for digital signage and networked AV applications where full HD 1080p can be passed over IP network delivering full audio video power data and control using a single Ethernet cable. |
| Marketing Information | The KanexPro EXT-AVIPH264TX is an AV over IP transmitter with an HDMI input and Ethernet out which uses advanced H.264 compression algorithm to transmit full HD 1080p from HDMI based sources with less bandwidth over LAN network. It supports PoE (power over Ethernet) with distances over a single CATx up to 394 ft. (120m) delivering one to one one to many and many to many over the Ethernet switch. Applications: Ideal for digital signage and networked AV applications where full HD 1080p can be passed over IP network delivering full audio video power data and control using a single Ethernet cable. |
| Maximum Operating Distance | 393.70 ft |
| Maximum Operating Distance | 393.70 ft |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Video Resolution | 1920 x 1080 |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Product Line | NetworkAV |
| Product Line | NetworkAV |
| Product Name | NetworkAV H.264 HDMI Transmitter over IP w/ POE & RS-232 |
| Product Name | NetworkAV H.264 HDMI Transmitter over IP w/ POE & RS-232 |
| Product Type | Video Extender Transmitter |
| Product Type | Video Extender Transmitter |
| Twisted Pair Cable Standard | Category 6 |
| Twisted Pair Cable Standard | Category 6 |
| UPC Alternates | 813982021198 |
| UPC Alternates | 813982021198 |
