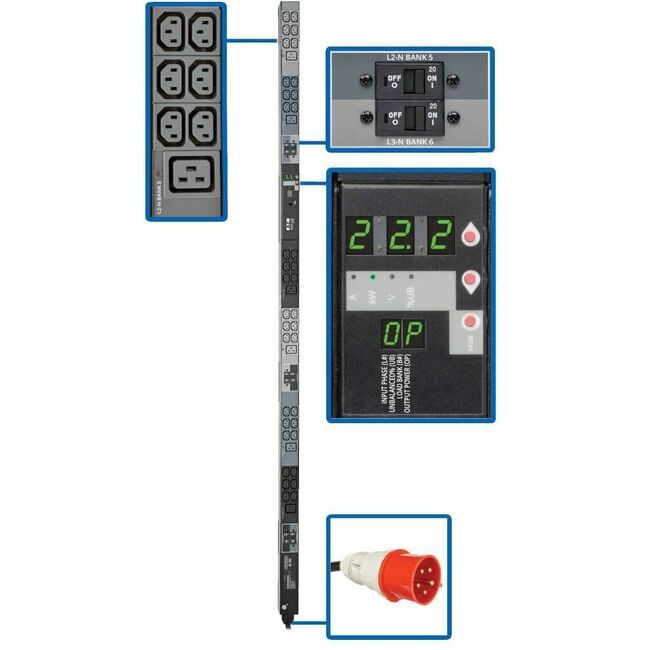

Tripp Lite PDU 3-Phase Metered 220/230V 22.2kW 32A IEC309 36 C13; 6 C19 0U
New
Tripp Lite PDU 3-Phase Metered 220/230V 22.2kW 32A IEC309 36 C13; 6 C19 0U - IEC 309 32A Red 3P+N+E - 6 x IEC 60320 C19, 36 x IEC 60320 C13 - 0UVertical Rackmount
| $847.00 Retail $1,336.60 |
- Metered 22.2kW 3 Phase 380/400V input 220/230V output PDU
- Visual meter reports output amps per bank, total kW and input voltage
- IEC309 32A Red (3P+N+E) 3 phase 380/400V input, 6 ft. / 1.8m line cord
- 42 220/230V outlets (36 C13, 6 C19) with included plug-lock cord retention sleeves
- 0U Vertical Rackmount with Toolless button-mount installation
- TAA Compliant
You may be also interested
$891.49
$1,448.92
$1,834.44
$2,670.00
$1,428.88
$2,080.00
$174.16
$369.99
$2,455.44
$3,740.00
$182.81
$282.68
$32.57
$54.08
$594.27
$869.00
$892.09
$999.95
$118.78
$220.00
$137.72
$159.12
$145.56
$193.00
$245.57
$350.06
$114.87
$145.00
$754.99
$919.95
$4,150.42
$5,750.00
$898.40
$1,305.00
$118.81
$116.57
$1,196.12
$1,740.00
$929.48
$1,211.00
Tripp Lite PDU 3-Phase Metered 220/230V 22.2kW 32A IEC309 36 C13; 6 C19 0U - IEC 309 32A Red 3P+N+E - 6 x IEC 60320 C19, 36 x IEC 60320 C13 - 0UVertical Rackmount
IEC 309 32A Red 3P+N+E - 6 x IEC 60320 C19, 36 x IEC 60320 C13 - 0UVertical Rackmount
IEC 309 32A Red 3P+N+E - 6 x IEC 60320 C19, 36 x IEC 60320 C13 - 0UVertical Rackmount
Product Specifications
| Mounting Orientation | Vertical |
| Power Rating (Watt) | 23 kW |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Detail | 36 x IEC 60320 C13 |
| Brand Name | Tripp Lite |
| Circuit Breaker | Yes |
| Country of origin | Taiwan |
| Depth | 2.5" |
| Environmental Certification | RoHS |
| Height | 70" |
| Input current | 32 A |
| Input Voltage Range | 380 V AC - 400 V AC |
| Limited Warranty | 2 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDU3XMV6G32 |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of output current output kW and input voltage via built-in multifunction digital display. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. |
| Mount Type | Rack-mountable |
| Output voltage | 200 V AC |
| Output voltage | 220 V AC |
| Output voltage | 240 V AC |
| Output voltage | 230 V AC |
| Package Contents |
|
| Plug/Connector Type | IEC 60309 32A Red 3P+N+E |
| Product Line | Metered |
| Product Name | Metered PDU3XMV6G32 42 Outlets PDU |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Rack Height | 0U |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| UPC Alternates | 037332182753 |
| Weight (Approximate) | 14.29 lb |
| Width | 2.2" |
