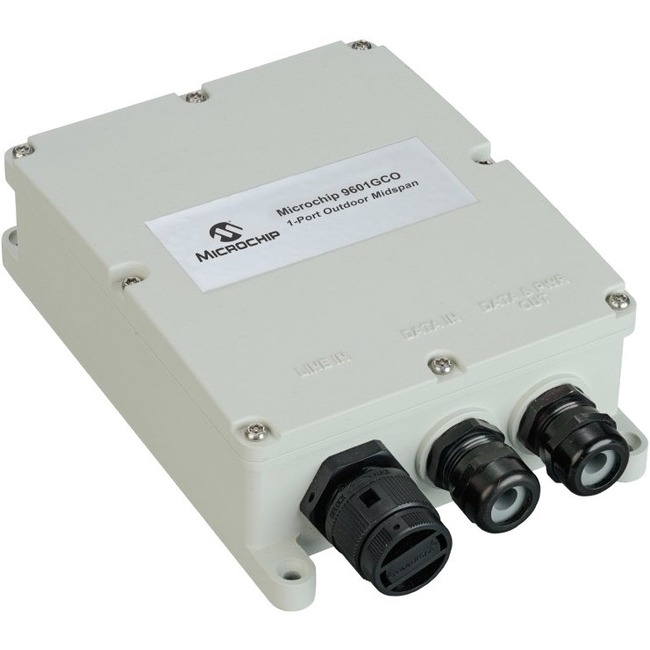

Microchip PD-9601GCO Outdoor PoE Midspan
New
Microchip PD-9601GCO Outdoor PoE Midspan - 1-Port, IP67, IEEE® 802.3bt Type 4, 90W Outdoor PoE Midspan
| $245.90 Retail $300.38 |
- Outdoor rated: IP67
- Extended temperature range ?40?C to +60?C
- Supports IEEE 802.3bt type 4 standard PDs
- IEEE 802.3af/at backward compatible
- One part number for worldwide use (AC connector)
- Output power of 90W over 4-pairs is guaranteed
- Supports 10/100/1000Base-T applications
- Plug-and-play installation
- Safe: low-power devices receive only the power they need
- Automatic detection and protection of non?standard Ethernet terminals
- Complies with the latest EMI and safety standards
You may be also interested
$1,296.62
$1,559.95
$828.87
$2,387.28
$56.82
$69.99
$714.82
$995.00
$2,704.03
$3,429.00
$362.64
$495.00
$794.35
$1,207.99
$821.41
$1,182.89
$1,505.08
$2,095.00
$1,345.59
$1,873.00
$3,461.98
$4,470.00
$1,008.08
$1,451.72
$835.11
$1,008.00
$527.98
$768.88
$1,724.92
$2,484.06
$50.58
$59.00
$1,822.51
$31.37
$28.00
$2,854.05
$4,233.19
$112.54
Microchip PD-9601GCO Outdoor PoE Midspan - 1-Port, IP67, IEEE® 802.3bt Type 4, 90W Outdoor PoE Midspan
1-Port, IP67, IEEE® 802.3bt Type 4, 90W Outdoor PoE Midspan
1-Port, IP67, IEEE® 802.3bt Type 4, 90W Outdoor PoE Midspan
Product Specifications
| Input Ports | 1 x Gigabit Ethernet |
| Brand Name | Microchip |
| Height | 2.4" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Length | 6.7" |
| Manufacturer | Microchip Technology Inc. |
| Manufacturer Part Number | PD-9601GCO/AC |
| Manufacturer Website Address | http://www.microchip.com |
| Marketing Information | Microchip's PD-9601GCO Power over Ethernet (PoE) single-port midspan offers a cost effective IEEE 802.3bt type 4 compliant solution for outdoor installations guaranteeing 90 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points security network cameras and other IP terminals to receive power along with data over stan- dard Ethernet cables leaving network infrastructure completely unaltered. The PD-9601GCO also offers surge protection for both the AC and the PoE ports ensuring the indoor equip-ment is protected from outdoor surges. |
| Maximum Input Current | 1.35 A |
| Maximum Output Power | 95 W |
| Product Model | PD-9601GCO |
| Product Name | PD-9601GCO PoE Injector |
| Product Type | PoE Injector |
| UPC Alternates | 844117004113 |
| Weight (Approximate) | 3.80 lb |
| Width | 5.5" |
