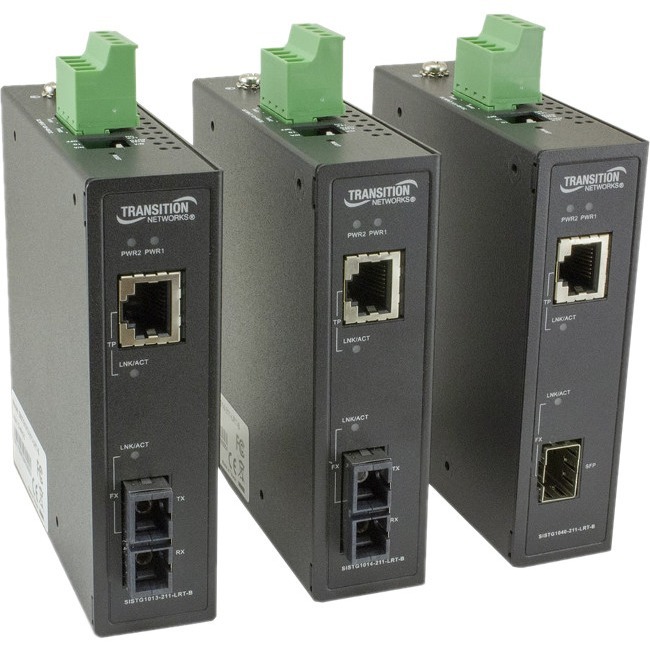

Transition Networks Unmanaged Hardened Gigabit Ethernet Media Converter
New
Transition Networks Unmanaged Hardened Gigabit Ethernet Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - Rail-mountable
| $348.72 Retail $477.00 |
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Extended operating temperature (-40°C to 75°C)
- Dual, Redundant, 12-48 VDC Power Inputs
- Reverse Polarity Power Input Protection
- Overload Current Protection
- DIN Rail Mounting Brackets Included
- Class 1, Div 2 Certified
- Jumbo Frame: 9K bytes
You may be also interested
$748.90
$1,194.34
$24.00
$25.99
$292.64
$349.99
$106.78
$180.00
$71.88
$122.00
$391.34
$544.00
$114.00
$149.00
$59.72
$246.28
$354.65
$109.08
$25.00
$150.48
$227.00
$22.99
$32.00
$22.99
$32.00
$183.41
$305.14
$1,213.83
$1,782.14
$278.99
$457.60
$45.70
$120.55
$153.50
$262.00
$21.01
$24.00
$62.81
$71.00
Transition Networks Unmanaged Hardened Gigabit Ethernet Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - 1804.46 ft - Power Supply - Rail-mountable
1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - 1804.46 ft - Power Supply - Rail-mountable
1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - 1804.46 ft - Power Supply - Rail-mountable
Product Specifications
| Fiber Mode Supported | Multi-mode |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Standard | 62.5/125 µm |
| Fiber Optic Cable Standard | 62.5/125 µm |
| Fiber Optic Cable Standard | 50/125 µm |
| Fiber Optic Cable Standard | 50/125 µm |
| Fiber Optic Wavelength | 850 nm |
| Fiber Optic Wavelength | 850 nm |
| Maximum Distance Supported | 1804.46 ft |
| Maximum Distance Supported | 1804.46 ft |
| Brand Name | Transition Networks |
| Brand Name | Transition Networks |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 3.9" |
| Depth | 3.9" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rail-mountable |
| Form factor | Rail-mountable |
| Height | 4.3" |
| Height | 4.3" |
| Limited Warranty | 5 Year |
| Limited Warranty | 5 Year |
| Manufacturer | Transition Networks Inc |
| Manufacturer | Transition Networks Inc |
| Manufacturer Part Number | SISTG1013-211-LRT-B |
| Manufacturer Part Number | SISTG1013-211-LRT-B |
| Manufacturer Website Address | http://www.transition.com |
| Manufacturer Website Address | http://www.transition.com |
| Marketing Information | The SISTG10xx-211-LRT-B Series is a new generation of unmanaged hardened Gigabit Ethernet media converter. The converter can provide multimode or single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber. The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module to match your communication and distance needs. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas manufacturing and the chemical industry. |
| Marketing Information | The SISTG10xx-211-LRT-B Series is a new generation of unmanaged hardened Gigabit Ethernet media converter. The converter can provide multimode or single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber. The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module to match your communication and distance needs. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas manufacturing and the chemical industry. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-SX |
| Number of Network (RJ-45) Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents |
|
| Package Contents |
|
| Power source | Power Supply |
| Power source | Power Supply |
| Product Name | Unmanaged Hardened Gigabit Ethernet Media Converter |
| Product Name | Unmanaged Hardened Gigabit Ethernet Media Converter |
| Product Series | SISTG10xx-211-LRT-B |
| Product Series | SISTG10xx-211-LRT-B |
| Product Type | Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| Total Number of Ports | 2 |
| UPC Alternates | 648177042340 |
| UPC Alternates | 648177042340 |
| Weight (Approximate) | 15.52 oz |
| Weight (Approximate) | 15.52 oz |
| Width | 1.2" |
| Width | 1.2" |
