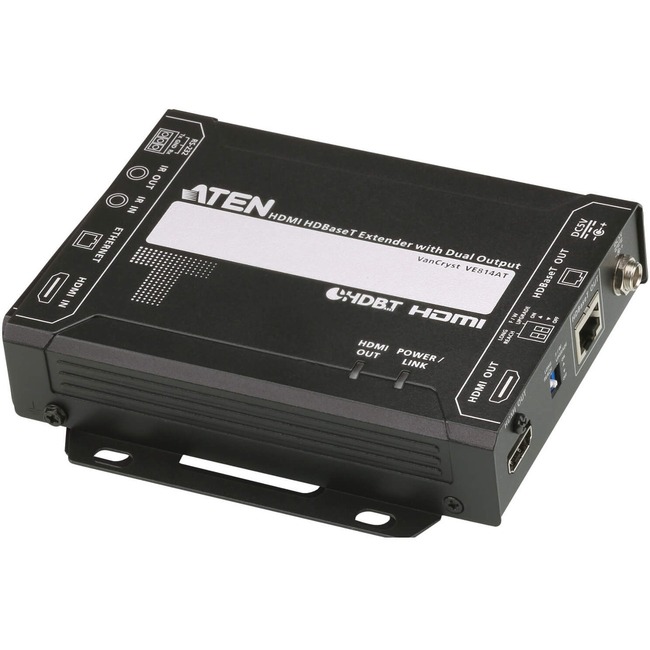

ATEN HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A)-TAA Compliant
| $381.34 Retail $409.00 |
- Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
- Superior video quality:
- 4K up to 100 m
- 1080p up to 150 m when in HDBaseT Long Reach Mode
- Extends Ethernet communication using the Ethernet pass-through port
- Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
- ATEN EDID Technology -- when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output
- RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Supports wide screen format
1 Input Device - 492.13 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable
Product Specifications
| Transmitter Depth | 5.35" |
| Transmitter Height | 1.14" |
| Transmitter Weight (Approximate) | 15.87 oz |
| Transmitter Width | 3.98" |
| Brand Name | ATEN |
| Connectivity technology | Wired |
| Country of origin | Taiwan |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Graphics Modes | 4K |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | VE814AT |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | ATEN VE814AT is an HDBaseT Video Transmitter that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs the VE814AT can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant transmitter meets the HDMI Specification including 3D Deep Color the maximum data rate of (10.2 Gbps) and 4K video quality up to 100 m. The VE814AT supports RS-232 and IR signaling pass-through allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition it supports Long Reach Mode that extends HDMI signals up to 150 m 1080p via a single Cat 5e/6 cable. |
| Maximum Operating Distance | 492.13 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents |
|
| Product Line | VanCryst |
| Product Name | HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A) |
| Product Type | Video Extender Transmitter |
| Twisted Pair Cable Standard | Category 6a |
| UPC Alternates | 672792007989 |
