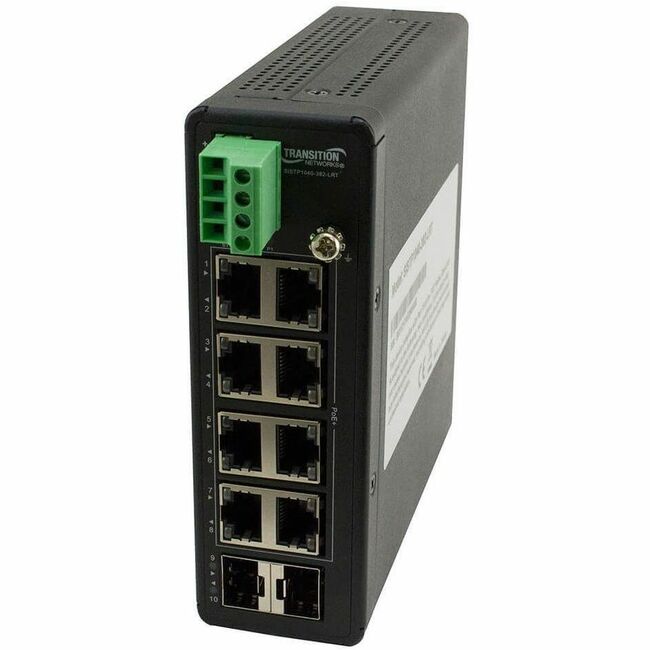

Transition Networks Unmanaged Hardened Gigabit Ethernet PoE+ Switch
| $383.89 Retail $524.70 |
- Support Jumbo Frame up to 9K bytes
- Layer 2 wire-speed switching engine
- Ruggedized metal closure
- IEEE 802.3az Energy Efficient Ethernet
- Fan-less design
- Wide operating temperature range (-40°C to +75°C)
- Dual Power input
- Din Rail and Wall Mount options
8 Ports - Gigabit Ethernet - 2 Layer Supported - Modular - 2 SFP Slots - Power Supply - Twisted Pair, Optical Fiber - Wall Mountable, Rail-mountable - 5 Year Limited Warranty
Product Specifications
| Modular | Yes |
| Modular | Yes |
| Total Number of Network Ports | 8 |
| Total Number of Network Ports | 8 |
| Brand Name | Transition Networks |
| Brand Name | Transition Networks |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 5.4" |
| Depth | 5.4" |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP (mini-GBIC) |
| Expansion Slot Type | SFP (mini-GBIC) |
| Form factor | Rail-mountable |
| Form factor | Wall Mountable |
| Form factor | Wall Mountable |
| Form factor | Rail-mountable |
| Height | 1.7" |
| Height | 1.7" |
| Layer Supported | 2 |
| Layer Supported | 2 |
| Limited Warranty | 5 Year |
| Limited Warranty | 5 Year |
| Manageable | No |
| Manageable | No |
| Manufacturer | Transition Networks Inc |
| Manufacturer | Transition Networks Inc |
| Manufacturer Part Number | SISTP1040-382-LRT |
| Manufacturer Part Number | SISTP1040-382-LRT |
| Manufacturer Website Address | http://www.transition.com |
| Manufacturer Website Address | http://www.transition.com |
| Marketing Information | This switch is an unmanaged full Gigabit Ethernet hardened PoE+ switch that complies with IEEE 802.3at and IEEE 802.3af. The switch has (8) 10/100/1000Base-T PoE+ ports with two 100/1000 dual speed SFP slots. It can deliver up to 30 Watts on each PoE+ port simultaneously. The SISTP1040-382-LRT can be used at the edge of a hardened network to provide connections for PoE devices in hazardous locations. The two fiber uplink ports can also be used in a daisy chain for maximum network reliability. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified to operate reliably in harsh environments such as those found on factory floors outdoor enclosures or other hazardous environments. |
| Marketing Information | This switch is an unmanaged full Gigabit Ethernet hardened PoE+ switch that complies with IEEE 802.3at and IEEE 802.3af. The switch has (8) 10/100/1000Base-T PoE+ ports with two 100/1000 dual speed SFP slots. It can deliver up to 30 Watts on each PoE+ port simultaneously. The SISTP1040-382-LRT can be used at the edge of a hardened network to provide connections for PoE devices in hazardous locations. The two fiber uplink ports can also be used in a daisy chain for maximum network reliability. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified to operate reliably in harsh environments such as those found on factory floors outdoor enclosures or other hazardous environments. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-X |
| Network Technology | 1000Base-X |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Power source | Power Supply |
| Power source | Power Supply |
| Product Name | Unmanaged Hardened Gigabit Ethernet PoE+ Switch |
| Product Name | Unmanaged Hardened Gigabit Ethernet PoE+ Switch |
| Product Type | Ethernet Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 648177041718 |
| UPC Alternates | 648177041718 |
| Weight (Approximate) | 1.01 lb |
| Weight (Approximate) | 1.01 lb |
| Width | 5.3" |
| Width | 5.3" |
