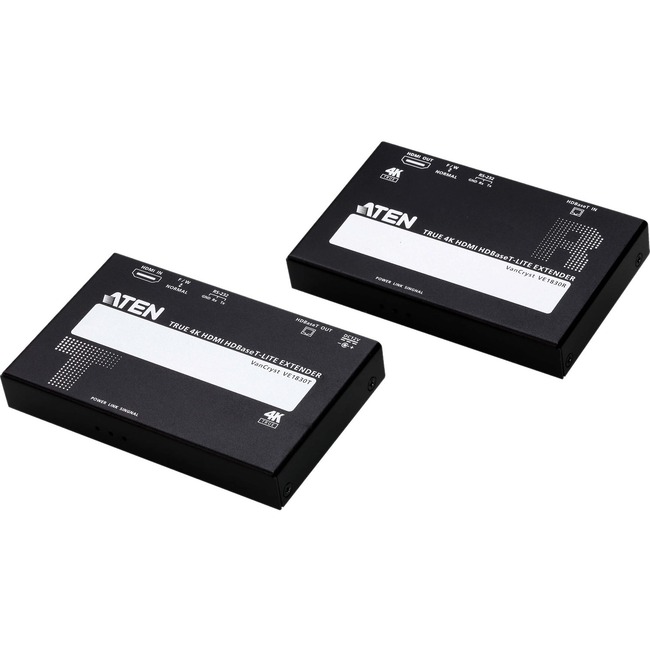

ATEN True 4K HDMI HDBaseT-Lite Extender (True 4K@35m) (HDBaseT Class B) New
| $363.05 Retail $529.00 |
- HDMI 2.0a (3D, Deep Color, True 4K); HDCP 2.2 compliant
- Superior video quality : Extends True 4K HDMI signals (3840 x 2160 @ 60Hz 4:4:4) up to 35 m : Extends full HD 1080p signals up to 70 m
- Supports HDR10+
- Features PoC (Power over Cable) - supplies power from the VE1830T unit to the VE1830R unit
- Features RS-232 serial port for connecting peripherals such as touch screens, and barcode scanners
- Plug-and-play
- Compact size for space saving
- Rack-mountable with attached rack mounting kit in the package
1 Input Device - 1 Output Device - 229.66 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K UHD - 3840 x 2160 - Twisted Pair - Category 6 - Rack-mountable
Product Specifications
| Receiver Weight (Approximate) | 4.23 oz |
| Transmitter Depth | 4.67" |
| Transmitter Height | 0.66" |
| Transmitter Weight (Approximate) | 5.29 oz |
| Transmitter Width | 2.83" |
| Brand Name | ATEN |
| Connectivity technology | Wired |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Graphics Modes | 4K UHD |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | VE1830 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The VE1830 True 4K HDMI HDBaseT-Lite Extender provides great flexibility in professional A/V installation with its high-quality transmitter VE1830T and receiver VE1830R. Powered by HDBaseT™ technology the VE1830 transmits True 4K HDMI signals up to 35m using a single Cat 5e/6 cable. ThisHDBaseT-Lite Extender supports HDCP 2.2 and meets the HDMI 2.0a specifications (3D Deep Color 4k) to ensure visually loseless high quality video and image. In addition it features PoC (Power over Cable) which can power the receiver unit from the transmitter side with power supply. The VE1830 offers an easy-to-use and cost-effective solution for professional A/V installations that require superior HDMI video quality such as in digital classrooms video conference rooms and home theater. |
| Maximum Operating Distance | 229.66 ft |
| Maximum Video Resolution | 3840 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents |
|
| Product Line | VanCryst |
| Product Name | True 4K HDMI HDBaseT-Lite Extender (True 4K@35m) (HDBaseT Class B) New |
| Product Type | Video Extender Transmitter/Receiver |
| Twisted Pair Cable Standard | Category 6 |
| UPC Alternates | 672792005978 |
