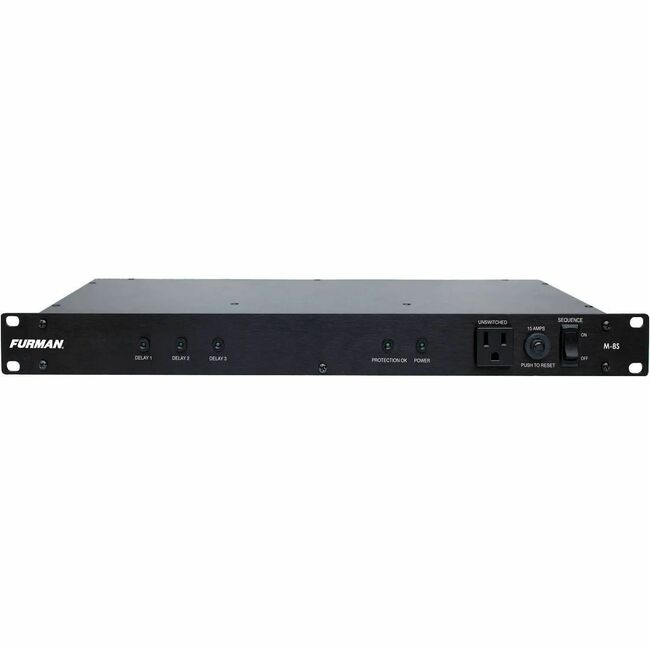

Furman POWER SEQUENCER

Furman POWER SEQUENCER

New
Furman POWER SEQUENCER - Surge protection - AC Power - 120 V AC Input
0 Review(s) Item: M-8S | By: Furman |  5 In Stock
$260.31 Retail $469.95

100% Quality & Money Back Guaranteed!


You may be also interested
Furman POWER SEQUENCER - Surge protection - AC Power - 120 V AC Input
Surge protection - AC Power - 120 V AC Input

Product Specifications

Receptacles Detail9 x AC Power
Additional Information
  • Standard level AC Surge Protection : Merit Class (sacrificial)
  • Spike Protection Mode : Line to neutral zero ground leakage
  • Max Continuous Operating Voltage : 130V RMS
  • Max Clamp Voltage : 500 Volts Peak
  • Peak Impulse Current : 12000 Amps
  • AC Filtering : Standard level Pi LCR Filter
  • Noise Attenuation : >26dB 100 Khz to 1 MHz
  • Operating Temperature Range : 5C (40F) to 40C (105F) degrees
  • Humidity Range : <90% rH (Relative Humidity)
  • Rocker Switch : Front panel Sequence (ON OFF)
  • Thermal Circuit Breaker : Front panel push to reset
  • Front Panel Indicators : Delay 1 Delay 2 Delay 3 Power Protection OK
  • Rear Panel DIP Switches : 12V Mode On/Off GND Mode On Momentary/Maintained
  • Potentiometer : Rear panel time calibration fine tune delay adjust
  • Remote Terminal : Phoenix type 4-Pin Connector with Screw terminals; +12V STAT REM GND (Class 2 Wiring)
  • Safety Agency : C/CSA/US
CompatibilityRack
Cord Length10 ft
Depth8.8"
Height1.8"
Input voltage120 V AC
Limited Warranty3 Year
ManufacturerFurman
Manufacturer Part NumberM-8S
Manufacturer Website Addresshttp://www.furmansound.com
Marketing InformationMerit M-8S Power Sequencer is the perfect low-cost AC power solution for any rack mount system. Install an M-8S in your rack and the eight outlets in the rear panel will power up in sequence and protect all your equipment up to a 15-amp load.
Maximum Line Current15 A
Output voltage30 V DC
Plug/Connector TypeNEMA 5-15P
Product NamePOWER SEQUENCER
Product TypeLine Conditioner
Protection TypeSurge
Receptacle TypeAC Power
Surge energy rating225 J
UPC Alternates613815617358 654061041078 818224995107 997847417798
Width19"
