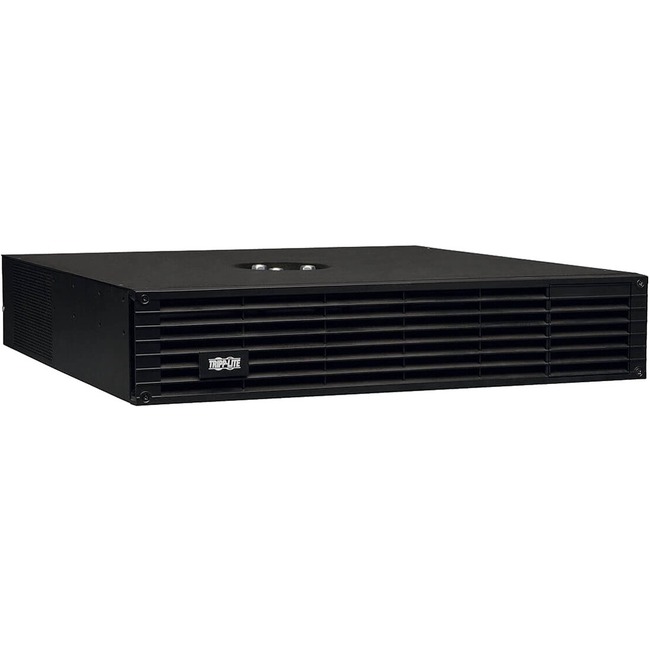

Tripp Lite 6kVA Smart Online Step-Down Isolation Transformer 208/240V-120V
| $1,480.12 Retail $2,381.18 |
- Converts high-voltage AC output into low voltage for powering low-voltage equipment
- 8 5-15/20R & 4 5-15R outlets for connecting components with 5-15P or 5-20P plugs
- Resettable circuit breakers protect connected equipment from hazardous overloads
- NEMA L6-30R outlet accepts high-voltage equipment
- Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
6000 VA - 230 V AC Input - 120 V AC, 208 V AC, 240 V AC Output - 2U - TAA Compliant
Product Specifications
| Input Receptacles | Hardwired |
| Output Receptacle Detail | 1 x NEMA L6-30R |
| Output Receptacle Detail | 8 x NEMA 5-15/20R |
| Output Receptacle Detail | 4 x NEMA 5-15R |
| Output Receptacles | NEMA L6-30R |
| Output Receptacles | NEMA 5-15R |
| Output Receptacles | NEMA 5-15/20R |
| Shipping Depth | 27" |
| Shipping Height | 8.80" |
| Shipping Width | 22" |
| Brand Name | Tripp Lite |
| Compatibility | Tripp Lite Devices:
|
| Country of origin | Taiwan |
| Depth | 21.8" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Tower/Rack Mountable |
| Height | 3.5" |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SU6000XFMR2UTAA |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | 208V to 120V Isolation Transformer Converts High-Voltage Input to Low-Voltage Output The 6kVA 6kW SU6000XFMR2UTAA SmartOnline® Step-Down Isolation Transformer converts your UPS utility or generator's 208V or 240V high-voltage input to 120V low-voltage output. Set the input voltage using the front-panel switch. The transformer features eight NEMA 5-15/20R and four NEMA 5-15R outlets for connecting equipment with common NEMA 5-15P and NEMA 5-20P plugs. Resettable circuit breakers protect your low-voltage equipment against overload conditions. One NEMA L6-30R outlet supports high-voltage output. Supports Plug or Hardwire Input The transformer's four-foot power cord with 208/240V 24A input connects to a NEMA L6-30R outlet. You can also use the hardwire terminals to connect the transformer module to the power module's input and output terminal blocks. Versatile Installation Options Hardware is included for mounting the 208V to 120V isolation transformer transformer in 2U of space in an EIA-standard 19-inch 4-post rack with a maximum depth requirement of 27.25 inches. Use the optional 2POSTRMKITWM for 2-post rack mounting or the optional 2-9USTAND for mounting in an upright tower position (both accessories sold separately). TAA-Compliant UPS for GSA Schedule Purchases The SU6000XFMR2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 2-Year Warranty and Environmentally Responsible Design The SU6000XFMR2UTAA comes with a 2-year warranty. It's manufactured in compliance with strict RoHS specifications reflecting Tripp Lite's commitment to environmental responsibility. |
| Maximum Line Current | 30 A |
| Output voltage | 240 V AC |
| Output voltage | 208 V AC |
| Output voltage | 120 V AC |
| Package Contents |
|
| Power Rating | 6000 VA |
| Product Line | SmartOnline |
| Product Name | SmartOnline SU6000XFMR2UTAA Isolation/Step-Down Transformer |
| Product Type | Isolation/Step-Down Transformer |
| Rack Height | 2U |
| Shipping Weight (Approximate) | 82.60 lb |
| UPC Alternates | 037332214652 |
| Weight (Approximate) | 72.60 lb |
| Width | 17.5" |
