Vertiv Geist PDU Facility Side Cable - 30A, 208V - Vertiv Geist PDU - Facility Side Cable 30A, 208V, 10ft/3m (FSC1N001)
Vertiv Geist PDU - Facility Side Cable 30A, 208V, 10ft/3m (FSC1N001)
| First End Connector Detail | 1 x 3-pin NEMA L6-30P Male |
| First End Connector Type | NEMA L6-30P |
| Second End Connector Detail | 1 x 8-pin Universal Connector Female |
| Second End Connector Type | Universal Connector |
| Additional Information | - Voltage: 200-240V
- Power Cable Wire Gauge: 10/3
- Plug Type: NEMA L6-30P Twistlock
- Max Plug kW: 4.9kW (208V)
- UPDU Voltage per Receptacle/Socket 208-240V
|
| Brand Name | Geist |
| Certifications & Standards | UL & c-UL Listed 60950 |
| Compatibility | Vertiv Geist Universal Rack PDU (UPDU) |
| Cord Length | 10 ft |
| Current rating | 30 A |
| Device Supported | PDU |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Limited Warranty | 5 Year |
| Manufacturer | Vertiv |
| Manufacturer Part Number | FSC1N001 |
| Manufacturer Website Address | http://www.vertiv.com/ |

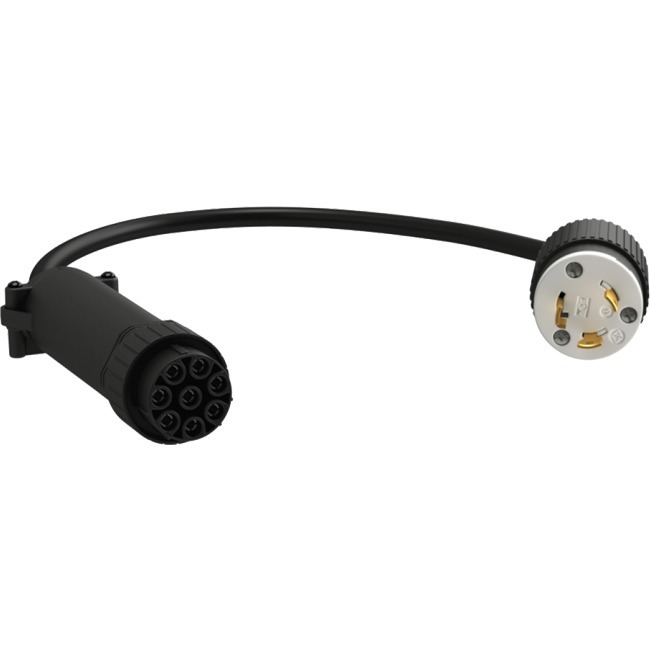

| Marketing Information | The Vertiv Geist Facility Side Cable (FSC1N001) is the detachable power cord used to define the input power configuration of the Vertiv Geist Universal Power Distribution Unit (Vertiv Geist UPDU). This 10-foot cord is equipped with a NEMA L6-30P plug. It has a max power capacity of 4.9kW and has a power rating of 30A and 208V. |
| Packaged Quantity | 1 |
| Product Model | CSN-S02A8-03000-3TL6A-S |
| Product Name | CSN-S02A8-03000-3TL6A-S Standard Power Cord |
| Product Type | Standard Power Cord |
| UPC Alternates | 767041029833 |
| Voltage Rating | 230 V AC |
