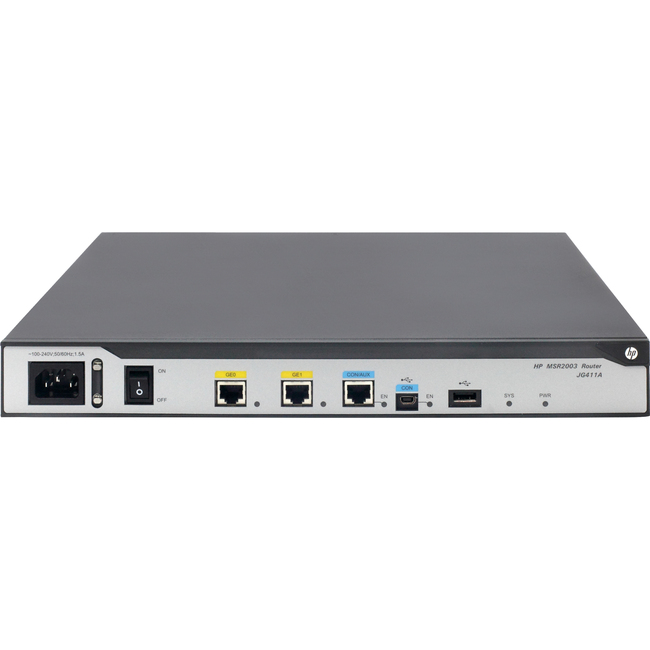

HPE MSR2003 AC Router - 2 Ports - Management Port - 3 - 1 GB - Gigabit Ethernet - 1U - Desktop, Rack-mountable - 1 Year
2 Ports - Management Port - 3 - 1 GB - Gigabit Ethernet - 1U - Desktop, Rack-mountable - 1 Year
| Compatible Rack Unit | 1U |
| Number of Total Expansion Slots | 3 |
| Brand Name | HPE |
| Certifications & Standards | Safety:
- UL 60950-1
- AS/NZS 60950
- EN 60825-1
- EN 60825-2
- IEC 60950-1
- CAN/CSA-C22.2 No. 60950-1-03
- EN 60950-1/A11
- FDA 21 CFR Subchapter J
Emissions:
- EN 55022 Class A
- ICES-003 Class A
- ANSI C63.4 2003
- ETSI EN 300 386 V1.3.3
- AS/NZS CISPR 22 Class A
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- EN 61000-4-5
- EN 61000-4-6
- EN 61000-3-2:2006
- EN 61000-3-3:1995 +A1:2001+A2:2005
- EMC Directive 2004/108/EC
- FCC (CFR 47 Part 15) Class A
- EN 55024:1998+ A1:2001 + A2:2003
- EN 61000-4-11:2004
- EN 61000-4-8:2001
Telecom:
IEEE Standards:
- 802.1P
- 802.1X
- 802.1D
- 802.1Q
- 802.3ab
- 802.3
|
| Country of origin | China |
| Depth | 11.8" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | Smart Interface Card (SIC) |
| Flash memory | 256 MB |
| Form factor | Desktop |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Input voltage | 110 V AC |
| Input voltage | 220 V AC |
| Limited Warranty | 1 Year |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JG411A#ABA |
| Manufacturer Website Address | http://www.hpe.com |
| Marketing Information | The HP MSR2000 router series is a second generation HP Multi-Service Router (MSR G2) that supports HP FlexBranch solution as part HP's overall comprehensive HP FlexNetwork architecture. The HP MSR2000 router series features a modular design that delivers unmatched application services for small to medium sized branch offices while reducing complexity simplifying configuration deployment and management. The MSR2000 router series provides a full-featured resilient routing platform including IPv6 and MPLS up to 1 Mpps forwarding capacity and 400 Mbps of IPsec VPN encrypted throughput. The MSR2000 router multi-core processors ensures high performance and reliable routing switching SIP/voice 3G/4G WAN and security services all in one device. |
| Memory Technology | DDR3 SDRAM |
| Network Technology | 10/100/1000Base-T |
| Number of Broadband (RJ-45) Ports | 2 |
| Product Model | MSR2003 |
| Product Name | MSR2003 AC Router |
| Product Series | MSR2000 |
| Product Type | Router |
| Security features | - TLS
- AES
- IEEE 802.1X
- MD5
- RADIUS
- IKE
- DVPN
- IPSec
- VPN
- TACACS+
- ACL
- URPF
- NAT
- SSHv2
|
| Standard Memory | 1 GB |
| Token Ring Port | No |
| Weight (Approximate) | 7.61 lb |
| Width | 14.2" |
