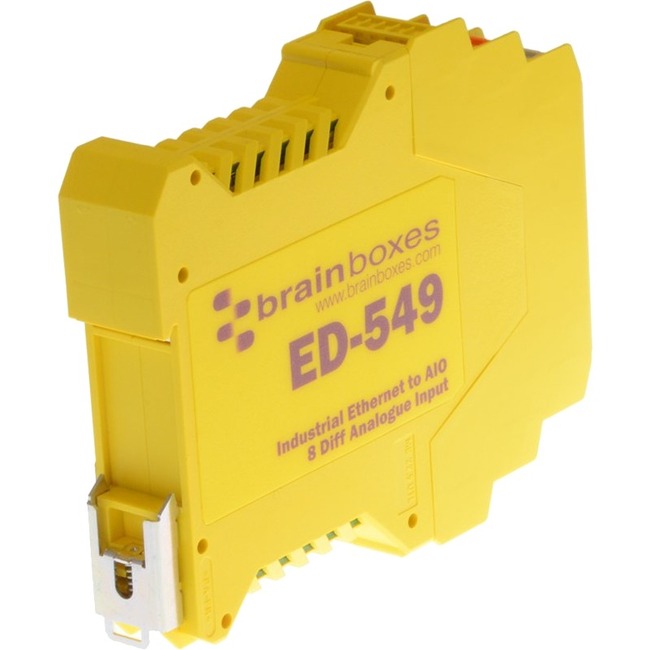

Brainboxes - Ethernet to 8 Analogue Inputs + RS485 Gateway

Name: Brainboxes - Ethernet to 8 Analogue Inputs + RS485 Gateway
Brand: Brainboxes Limited
SKU: VV4588
Price: 344.08 USD

New

Brainboxes - Ethernet to 8 Analogue Inputs + RS485 Gateway - 1 x Network (RJ-45) - 1 x Serial Port - Fast Ethernet - Rail-mountable

0 Review(s) Item: ED-549 | By: Brainboxes | 0 In Stock

Sorry This Product is Currently not Available to Buy.

8 differential channels, individually configurable
0-10V and 4-20mA inputs - connect all types of sensors
Factory floor process control and automation, Integrated DIN rail mount
Monitor instantly from any web-browser
-30°C to +80°C Temperature range
Programmable Gain Amp allows full resolution measurements down to 75mV

More Details

Subscribe & Save5%

	Buy Once $344.08
	Subscribe & Save$326.88

Delivery Ferquency

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Brainboxes - Ethernet to 8 Analogue Inputs + RS485 Gateway - 1 x Network (RJ-45) - 1 x Serial Port - Fast Ethernet - Rail-mountable
1 x Network (RJ-45) - 1 x Serial Port - Fast Ethernet - Rail-mountable

Product Specifications

Additional Information	IO Channels IO Protocols Modbus TCP or DCON ASCII (over TCP or Virtual COM port) Description 8 Analogue Inputs Digital Inputs 0 Digital Outputs 0 Analog Inputs 8 Analog Outputs 0 Analog IO Input Voltage Ranges ±10V ±5V ±2.5V ±1V ±500mV ±250mV ±150mV ±75mV Input Current Ranges ±20mA 0-20mA or 4-20mA Input Measurement Resolution 16 Bit Input Measurement Accuracy 0.1% of FSR @ 25 °C (77 °F) 0.3% of FSR over -30°C to + 80°C (-22 °F to +176 °F) Input Measurement Rate 8 measurements per second Input Impedance (Voltage Mode) > 10 MO Input Noise (CMRR) >120 dB Input Noise (NMRR) >100 dB @ 50 & 60 Hz (Rejects main hum) Serial Port Serial Gateway RS485 NuDam/ADAM compatible expansion port Network Number of Ports 1 Network Port Type RJ45 Jack 10/100 MHz Autosensing Cross Over Autosensing (MDIX) Network Protocols ICMP IP TCP DHCP HTTP Protection 1500V Magnetic Isolation between ports and network Power Power Input 5V - 30V DC Redundant DC Dual Power Inputs reverse polarity protected Power Supply 1 Description Global Power Supply - PW-600 Power Supply 2 Description Power supply PW-650 Max Input 35 Volts Power Consumption 2.5 Watt Max General Operating Temperature Range -30 °C to +80 °C / -22 °F to +176 °F Industrial Standard Yes Storage Temperature -40 °C to +85 °C / -40 °F to +185 °F Ambient Relative Humidity 5-95% (Non-condensing) Power Consumption Input +5V to +30V DC 100mA@24V 2.5W max Operating Systems Microsoft Windows 10 Suitable for any device with a Web Browser Microsoft Windows 8 32 bit & 64 bit Editions Windows Server 2012 Raspberry Pi Android Windows Server 2008 R2 Microsoft Windows 7 32 bit & 64 bit Editions iOS Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000 Linux
Brand Name	Brainboxes
Country of origin	United Kingdom
Depth	4"
Environmental Certification	RoHS
Environmental Certification	WEEE
Environmentally Friendly	Yes
Height	0.9"
Limited Warranty	Lifetime
Manufacturer	Brainboxes Limited

Manufacturer Part Number	ED-549
Manufacturer Website Address	http://www.brainboxes.com
Marketing Information	Ideal for all kinds of industry standard sensors and transducers. The ED-549 has 8 Analogue Inputs + RS485 Gateway. It is suitable for high-precision measurements of voltages and currents.Most parameters in the real world are measured using sensors with analogue outputs sensors and Brainboxes ED-549 takes these real world signals and turns them into data on your network. As well as the popular 0-10V and 4-20mA input devices there is now a Programmable Gain Amplifier (PGA) allowing full scale signals as small as ±75mV to be resolved to 12 bit accuracy across 8 analogue inputs. Each channel is individually configurable for voltage or current input with its own programmable gain. Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic C# C++ Java Javascript PHP and more. The device and be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications. The ED product range is designed for harsh environments. Typical applications are control and switching of AC and DC motors Fans relay drivers pumps Voltage Regulators and Battery Chargers LEDs and Bulbs Air Conditioning Heaters and Solenoids.. More from the Manufacturer
Marketing Information	Ideal for all kinds of industry standard sensors and transducers. The ED-549 has 8 Analogue Inputs + RS485 Gateway. It is suitable for high-precision measurements of voltages and currents.Most parameters in the real world are measured using sensors with analogue outputs sensors and Brainboxes ED-549 takes these real world signals and turns them into data on your network. As well as the popular 0-10V and 4-20mA input devices there is now a Programmable Gain Amplifier (PGA) allowing full scale signals as small as ±75mV to be resolved to 12 bit accuracy across 8 analogue inputs. Each channel is individually configurable for voltage or current input with its own programmable gain. Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic C# C++ Java Javascript PHP and more. The device and be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications. The ED product range is designed for harsh environments. Typical applications are control and switching of AC and DC motors Fans relay drivers pumps Voltage Regulators and Battery Chargers LEDs and Bulbs Air Conditioning Heaters and Solenoids.. More from the Manufacturer
Package Contents	Ethernet to 8 Analogue Inputs + RS485 Gateway Installation CD Including Manual Microsoft Signed Drivers & Utilities Quick Start Guide
Product Name	Ethernet to 8 Analogue Inputs + RS485 Gateway
Product Type	Ethernet To Digital IO Module
UPC Alternates	096070041890 837324003369
Weight (Approximate)	4.94 oz
Width	5"
