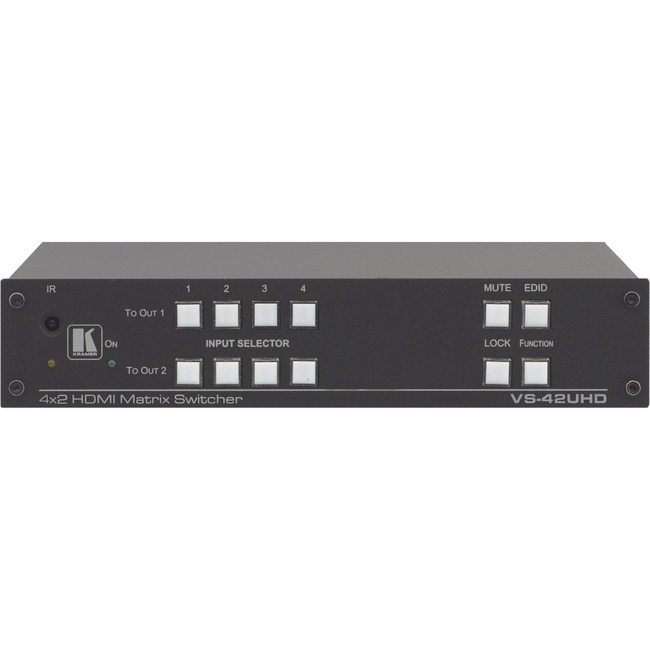

Kramer 4x2 4K60 4:2:0 HDMI Automatic Matrix Switcher - 4096 x 2160 - 4K - 4 x 2 - Display, Computer, Blu-ray Disc Player - 2 x HDMI Out
4096 x 2160 - 4K - 4 x 2 - Display, Computer, Blu-ray Disc Player - 2 x HDMI Out
| HDMI In | Yes |
| Brand Name | Kramer |
| Connectivity technology | Cable |
| Depth | 6.4" |
| Device Supported | Display |
| Device Supported | Blu-ray Disc Player |
| Device Supported | Computer |
| Form factor | Rack-mountable |
| Graphics Modes | 4K |
| Height | 1.7" |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | VS-42UHD is a high-quality 4x2 matrix switcher for 4K@60Hz (4:2:0) HDMI signals. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously. - Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
- Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
- HDCP Compliant
- True Video Clock Detection.
- Automatic Switching Modes - Last connected and priority switching.
- HDMI Support - 3D Deep Color x.v.Color™ Lip Sync Dolby® TrueHD Dolby Digital Plus DTS-HD® and 7.1 PCM.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
- Programmable Step-in Functionality - When used with compatible step-in devices such as the SID-X3N (using an HDMI cable that supports HEC the HDMI Ethernet Channel).
- Non-Volatile EDID Storage.
- Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
- Static or Dynamic DHCP IP Addressing.
- Embedded Web Pages - Provide remote configuration and operation.
- Lock Button - Prevents tampering with the front panel buttons.
- Kramer Protocol 3000.
- Versatile Control Options - RS-232 Ethernet infrared remote control optional remote IR receiver.
Applications - Conference rooms
- Education
- Hospitality
|
| Maximum Video Resolution | 4096 x 2160 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 2 |
| Number of USB Ports | 1 |
| Product Model | VS-42UHD |
| Product Name | 4x2 4K60 4:2:0 HDMI Automatic Matrix Switcher |
| Product Type | Audio/Video Switchbox |
| Weight (Approximate) | 1.98 lb |
| Width | 8.5" |
