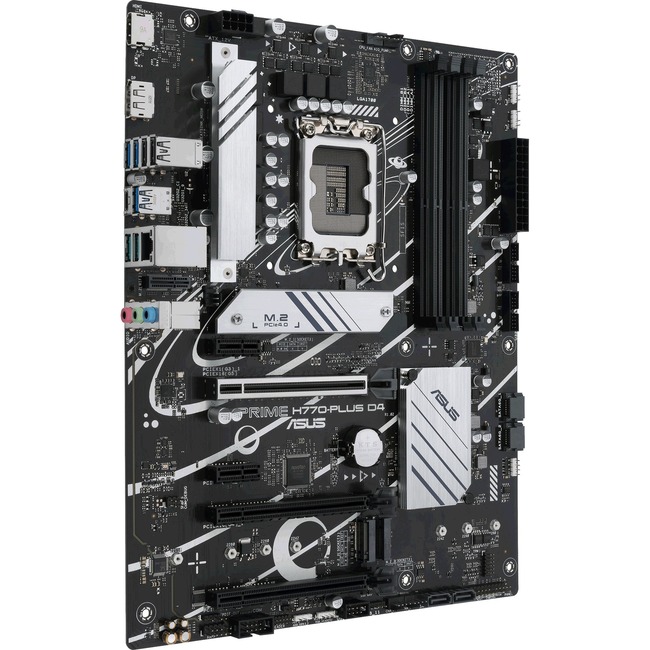

Asus Prime H770-PLUS D4 Desktop Motherboard - Intel H770 Chipset - Socket LGA-1700 - ATX
| $165.13 |
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C® and Thunderbolt™ (USB4®) header support
- Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
| Buy Once $165.13 | |||
| Subscribe & Save$156.87 | |||
| Delivery Ferquency |
Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
Product Specifications
| Chipset Manufacturer | Intel |
| Chipset Model | H770 |
| HDMI Version | 2.1 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 5000 MHz |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 3 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express Standard | PCI Express 3.0 |
| PCI Express Standard | PCI Express 4.0 |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Pentium Gold |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 7 |
| Audio Channels | 7.1 |
| Brand Name | Asus |
| Controller Type | Serial ATA/600 |
| Depth | 9.6" |
| Form factor | ATX |
| Limited Warranty | 3 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIMEH770-PLUSD4 |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design comprehensive cooling solutions and intelligent tuning options PRIME H770-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. FLEXIBILITY Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME H770-PLUS D4 motherboard packs flexible tools to tune every aspect of your system enabling performance tweaks to perfectly match the way you work to maximize productivity. Intelligent Control ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system it offers intelligently simplified options for newcomers to PC DIY as well as more comprehensive features for seasoned veterans. All-Around Energy Efficiency The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit darken Aura lighting and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. Flexible Air- and Liquid-Cooling Controls ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS. Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure tweak and tune your system. It offers intelligently simplified options for PC DIY beginners as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Quick and Simple Setup EZ mode displays vital settings and stats and also offers guided wizards drag-and-drop functionality and one-click application of important settings - all to help you get your rig up and running in no time. |
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR4 SDRAM |
| Package Contents |
|
| Product Line | Prime |
| Product Model | H770-PLUS D4 |
| Product Name | PRIME H770-PLUS D4 Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 1 |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 0 |
| Total Number of USB Ports | 8 |
| UPC Alternates | 195553963572 |
| Width | 12" |
