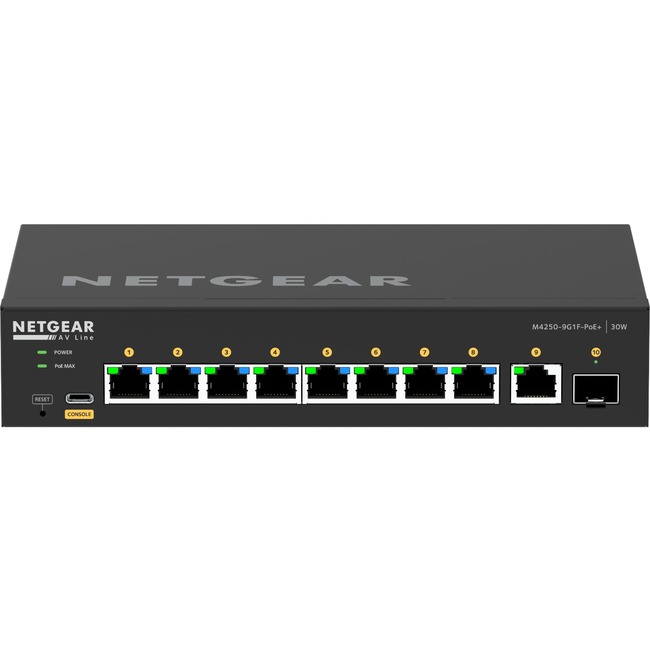

Netgear AV Line M4250 GSM4210PD Ethernet Switch - 8 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-T, 10GBase-X - 3 Layer Supported - 1 SFP Slots - 110 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Desktop - Lifetime Limited Warranty
8 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-T, 10GBase-X - 3 Layer Supported - 1 SFP Slots - 110 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Desktop - Lifetime Limited Warranty
| Number of Total Expansion Slots | 1 |
| PoE Budget | 110 W |
| Total Number of Network Ports | 8 |
| Brand Name | Netgear |
| Depth | 5.5" |
| Ethernet Technology | 10 Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Features | Fanless |
| Form factor | Desktop |
| Height | 1.6" |
| Layer Supported | 3 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Manufacturer | Netgear Inc |
| Manufacturer Part Number | GSM4210PD-100NAS |
| Manufacturer Website Address | http://www.netgear.com |
| Marketing Information | The NETGEAR AVLine M4250 series was designed with input from AV Professionals. The result is a line of switches built from the ground upto support 1Gb audio and video over IP with customized hardware and software along with dedicated service and support. NETGEAR M4250 series key features: - Ranges from 8 to 48 ports with a variety of PoE+ and Ultra90 PoE++ options for 15.4W 30W 60W 75W and 90W AVoIP endpoints
- Uplink options include1G for audio installations or standalone video installations as well as 10G uplinks for larger scale video deployments
- Also includes12-port multi-gigabit Ethernet and 16-port 1G/10G fiber models for plug and play aggregation in a star topology
- Rack moun tmodels designed for a clean integration with traditional rack-mounted AV equipment
- The M4250 switches come with a sleek black display panel with status in front and all cabling plus additional status in the back
- Reversed mounting is possible when ports are desired on the front of the rack
- A second pair of rack mount ears allows the switches to be mounted recessed by 2-inches to allow for the cabling
- Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totaly fanless operation
- Threaded holes on the bottom (4xM5 for 50x100mm VESA) and in front (1xM10 for clamps) allow for universal mounting option soutside the rack as well
- New!M4250 desktop versions for use outside of the AV racks in conference rooms mobile studios on the wall under a table or behind a screen
NETGEAR M4250 series AV software features:
- Pre-configured for audio and video over IP out of the box the M425 switches enable encoders and decoders to be connected with zero configuration
- When more configuration is required an AV web-based GUI is available
- This interface has been specially designed for AV installers with specific AV-related controls made more accessible and with port-based profiles
- For audio profiles for Dante Q-SYS and AES67 are built-in as well as an AVB profile (AVB license sold separately)
- For video the M4250 offers profiles for NVX SVSI Q-SYS NDI Kramer KDS Aurora Multimedia ZeeVee Atlona Dante and SDVoE
- Other AV CODECs and manufacturers are supported as well as audio/video/control mixed profiles
- To further simplify star deployments NETGEAR IGMP Plus™ brings multicast automation between all M4250 switchesand with M4300/M4500
- With Auto-Trunk and Auto-LAG simply connect M4250 switches together and you are done!
|
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 10GBase-X |
| Network Technology | 10GBase-T |
| Networking standards | IEEE 802.1Qat |
| Networking standards | IEEE 802.1Qav |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1ak |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.1AX |
| Networking standards | IEEE 802.1as |
| Networking standards | IEEE 802.3bt |
| Networking standards | IEEE 802.3at |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ (220W) Ports |
| Port/Expansion Slot Details | 2 x Expansion Slots |
| Power source | Power Adapter |
| Product Family | AV Line M4250 |
| Product Line | AV Line |
| Product Model | GSM4210PD |
| Product Name | AV Line M4250 GSM4210PD Ethernet Switch |
| Product Series | M4250 |
| Product Type | Ethernet Switch |
| UPC Alternates | 606449160185 |
| Width | 8.3" |
