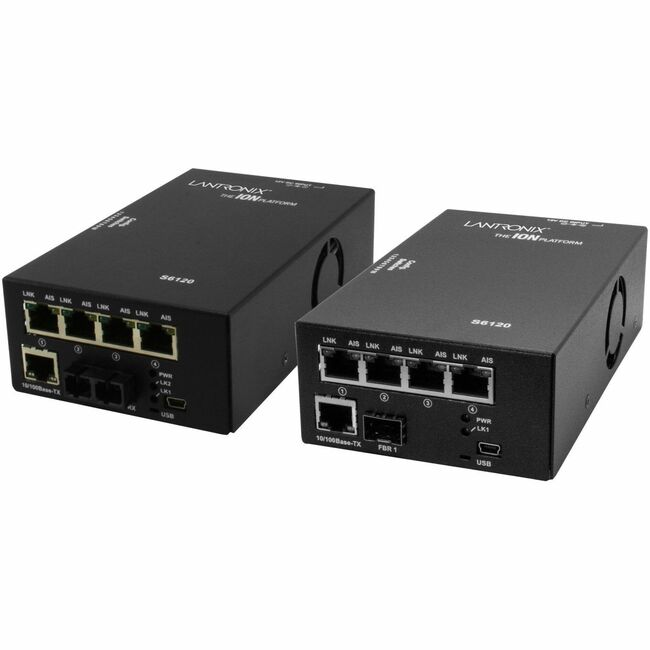

Transition Networks Stand-alone T1/E1/J1 Network Interface Device - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - Fast Ethernet - T1/E1/J1, 10/100Base-TX - Standalone, Wall Mountable
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - Fast Ethernet - T1/E1/J1, 10/100Base-TX - Standalone, Wall Mountable
| Fiber Mode Supported | Multi-mode |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Wavelength | 1300 nm |
| Fiber Optic Wavelength | 1300 nm |
| Maximum Distance Supported | 1.24 Mile |
| Maximum Distance Supported | 1.24 Mile |
| SC Port Type | Duplex |
| SC Port Type | Duplex |
| Brand Name | Transition Networks |
| Brand Name | Transition Networks |
| Country of origin | United States |
| Country of origin | United States |
| Depth | 6.5" |
| Depth | 6.5" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Fast Ethernet |
| Form factor | Wall Mountable |
| Form factor | Wall Mountable |
| Form factor | Standalone |
| Form factor | Standalone |
| Height | 1.8" |
| Height | 1.8" |
| Limited Warranty | Lifetime |
| Limited Warranty | Lifetime |
| Manufacturer | Transition Networks Inc |
| Manufacturer | Transition Networks Inc |
| Manufacturer Part Number | S6120-1013-NA |
| Manufacturer Part Number | S6120-1013-NA |
| Manufacturer Website Address | http://www.transition.com |
| Manufacturer Website Address | http://www.transition.com |
| Marketing Information | The ION S6120 is a managed stand-alone T1/E1/J1 media converter mux and provides a solution for those users that need to extend multiple T1/E1/J1 connections along with a 10/100 Ethernet connection all over fiber. The S6120 includes (4) RJ-48 ports (1) 10/100 Ethernet port and (1) fiber port. The device is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types distances and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure. The S6120 converter must be used in pairs. Management of the stand-alone converter is supported in-band over the fiber when the remote S6120 is linked to a C6120 card installed in a managed ION chassis. |
| Marketing Information | The ION S6120 is a managed stand-alone T1/E1/J1 media converter mux and provides a solution for those users that need to extend multiple T1/E1/J1 connections along with a 10/100 Ethernet connection all over fiber. The S6120 includes (4) RJ-48 ports (1) 10/100 Ethernet port and (1) fiber port. The device is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types distances and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure. The S6120 converter must be used in pairs. Management of the stand-alone converter is supported in-band over the fiber when the remote S6120 is linked to a C6120 card installed in a managed ION chassis. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100Base-TX |
| Network Technology | 10/100Base-TX |
| Network Technology | T1/E1/J1 |
| Network Technology | T1/E1/J1 |
| Number of Network (RJ-45) Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents | - Stand-alone T1/E1/J1 Network Interface Device
- Power Supply
|
| Package Contents | - Stand-alone T1/E1/J1 Network Interface Device
- Power Supply
|
| Power source | Power Supply |
| Power source | Power Supply |
| Product Name | Stand-alone T1/E1/J1 Network Interface Device |
| Product Name | Stand-alone T1/E1/J1 Network Interface Device |
| Product Series | S6210 |
| Product Series | S6210 |
| Product Type | Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 6 |
| Total Number of Ports | 6 |
| UPC Alternates | 648177034833 |
| UPC Alternates | 648177034833 |
| USB | No |
| USB | No |
| Weight (Approximate) | 2 lb |
| Weight (Approximate) | 2 lb |
| Width | 3.7" |
| Width | 3.7" |
