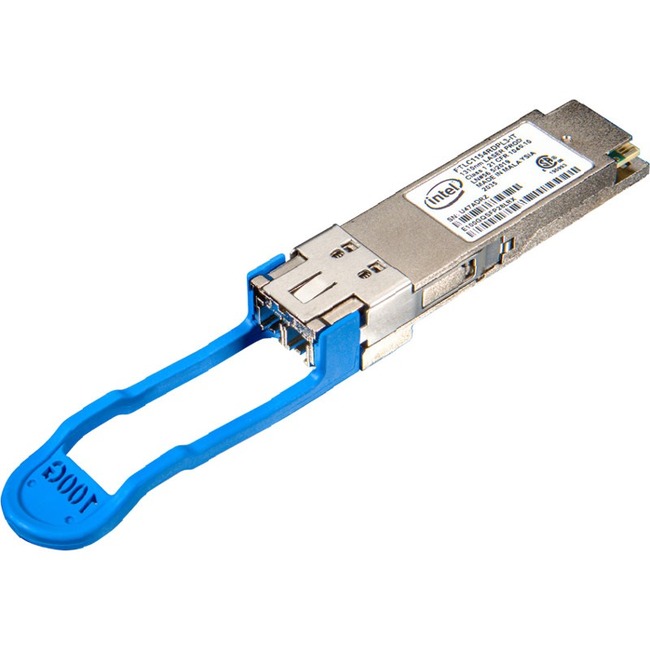

Intel Ethernet QSFP28 Optic, LR Extended Temp
| $564.65 Retail $2,145.88 |
- Hot-pluggable QSFP28 optical transceiver
- Up to 100 m link on OM4 multi-mode fiber (MMF)
- Up to 10km link on single mode fiber (SMF)
- Four independent parallel optical channels
- Max power 2.5 W (SR), 4.5W (LR)
- QSFP28 MSA compliance
- Power class 3 (SR)
- Power class 3 (LR)
- Extended case operating temperature 0 to 85 °C
- RoHS II Compliance
- Meets standard BER of 5E-5
Intel® Ethernet QSFP28 Optic delivers high-performing computing interconnect for deployments of 100GbE
Product Specifications
| Fiber Mode Supported | Single-mode |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Standard | 1305.63 nm |
| Fiber Optic Cable Standard | 1294.53 nm |
| Fiber Optic Cable Standard | 1301.09 nm |
| Fiber Optic Cable Standard | 1296.59 nm |
| Fiber Optic Cable Standard | 1299.02 nm |
| Fiber Optic Cable Standard | 1308.09 nm |
| Fiber Optic Cable Standard | 1303.54 nm |
| Fiber Optic Cable Standard | 1310.19 nm |
| Interfaces/Ports Details | 1 x 100GBase-LR4 Network |
| Maximum Distance Supported | 32808.40 ft |
| Application/Usage | Optical Network |
| Application/Usage | Data Networking |
| Brand Name | Intel |
| Compatibility | MSA Complaint |
| Environmental Certification | RoHS 2 |
| Environmentally Friendly | Yes |
| Ethernet Technology | 100 Gigabit Ethernet |
| Form factor | Hot-pluggable |
| Limited Warranty | 3 Year |
| Manufacturer | Intel Corporation |
| Manufacturer Part Number | E100GQSFP28LRX |
| Manufacturer Website Address | http://www.intel.com |
| Marketing Information | Overview Intel® Ethernet QSFP28 Optics are an excellent choice for fiber systems in high-speed communications equipment. Both short range and long-range transceiver modules are available for maximum customer flexibility. The extended case operating temperature allows customers to support a range of server requirements. These 100GbE optical transceivers come integrated with four independent transmit and receive channels each capable of 25GbE operation for an aggregate data rate of 100GbE. The QSFP28 SR4 transceiver is a high-performing module for SR optical links over OM4 MMF and is ideal for short-range multi-lane data communication and interconnects applications. The QSFP28 LR4 module is designed for extended reach and supports links up to 10km of single mode fiber. When used with Intel® Ethernet Network Adapters with QSFP28 connectivity these optics provide interoperability and secure connections for virtualized platforms high-speed networking and consistently reliable performance. |
| Media Type Supported | Optical Fiber |
| Network Technology | 100GBase-LR4 |
| Product Name | Ethernet QSFP28 Optic |
| Product Type | QSFP28 |
| Total Number of Ports | 1 |
| UPC Alternates | 675901766876 735858426497 |
| UPC Alternates | 675901766876 |
