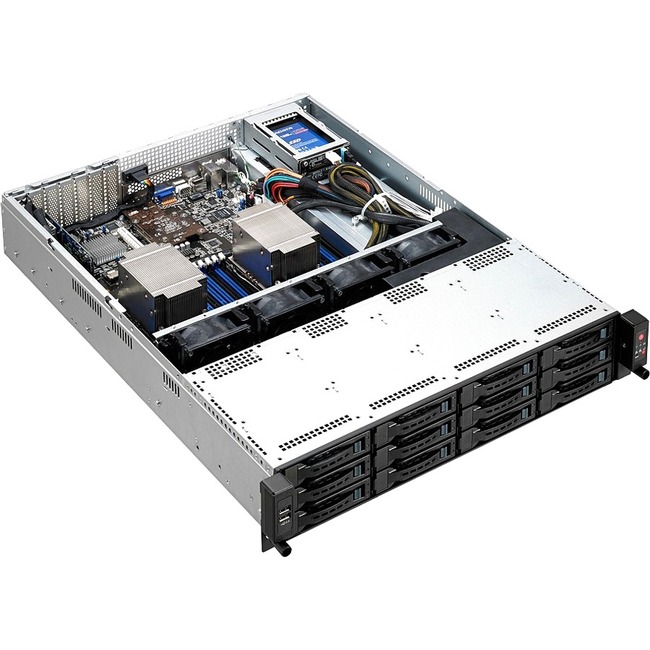

Asus RS520-E8-RS12-E V2 Barebone System - 2U Rack-mountable - Socket LGA 2011-v3 - 2 x Processor Support - Intel C612 Chip - 1 TB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support - 16 Total Memory Slots - Serial ATA/600 RAID Supported Controller - ASPEED AST2400 32 MB Graphic(s) - 12 3.5" Bay(s) - 2 2.5" Bay(s) - 9 SATA Interface(s) - Processor Support (Xeon) - Gigabit Ethernet - 2 USB 3.0 Port(s) - 2 x 770 W
Intel C612 Chip - 1 TB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support - 16 Total Memory Slots - Serial ATA/600 RAID Supported Controller - ASPEED AST2400 32 MB Graphic(s) - 12 3.5" Bay(s) - 2 2.5" Bay(s) - 9 SATA Interface(s) - Processor Support (Xeon) - Gigabit Ethernet - 2 USB 3.0 Port(s) - 2 x 770 W
| Chipset | Intel C612 |
| Chipset Manufacturer | Intel |
| Chipset Model | C612 |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2400 |
| Graphics Memory Capacity | 32 MB |
| Maximum Memory Supported | 1 TB |
| Maximum Power Supply Wattage | 770 W |
| Memory Standard | DDR4-2133/PC4-17000 |
| Number of 3.5" Bays | 12 |
| Number of PCI Express x16 Slots | 1 |
| Number of PCI Express x8 Slots | 3 |
| Number of Power Supplies Installed | 2 |
| Number of SATA Interfaces | 9 |
| Number of Total Expansion Slots | 4 |
| Processor Socket | Socket LGA 2011-v3 |
| Processor Supported | Xeon |
| Brand Name | Asus |
| Controller Type | Serial ATA/600 |
| Depth | 24.2" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Height | 3.5" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | RS520-E8-RS12-EV2 |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | Mass storage and flexibility in 2U and additional OS Kernal Disk RS520-E8-RS12-E V2 is equipped with 12 SAS/SATA 3.5-inch disk drive bays. The hot-swappable design provides non-stop high availability making short work of maintenance. RS520-E8-RS12-E V2 also offers great freedom when it comes to the choice of operating system drive type and placement with M.2 slot available and two hot-swappable 2.5-inch SSD bays. |
| Memory Technology | DDR4 SDRAM |
| Number of Total Expansion Bays | 14 |
| Number of Total Memory Slots | 16 |
| Operating System Supported | Windows Server 2012 |
| Operating System Supported | SuSE Linux Enterprise Server |
| Operating System Supported | Windows Server 2012 R2 |
| Operating System Supported | Windows Server 2008 R2 |
| Operating System Supported | CentOS |
| Operating System Supported | Ubuntu Server |
| Operating System Supported | Red Hat Enterprise Linux |
| Product Model | RS520-E8-RS12-E V2 |
| Product Name | RS520-E8-RS12-E V2 Barebone System |
| Product Type | Barebone System |
| Rack Height | 2U |
| UPC Alternates | 889349105696 889349207642 |
| Weight (Approximate) | 33.18 lb |
| Width | 17.5" |
