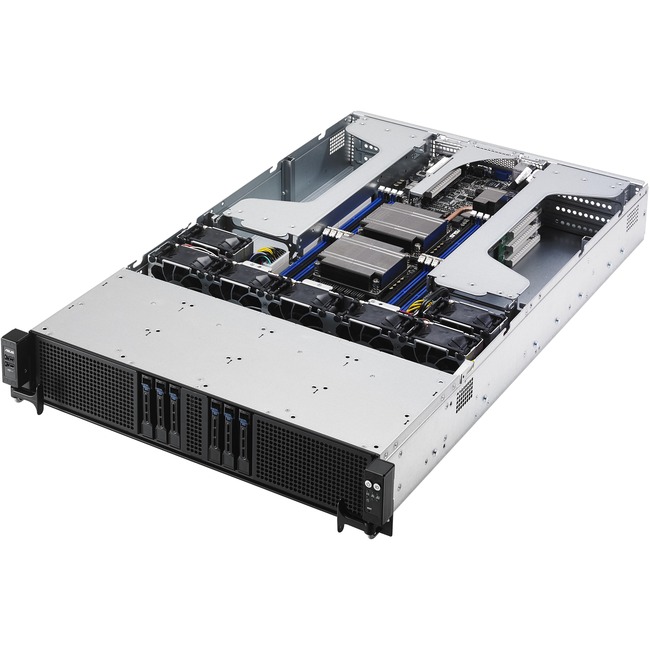

Asus Barebone System - 2U Rack-mountable - Socket LGA 2011-v3 - 2 x Processor Support - Intel C612 Chip - 1 TB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support - 16 Total Memory Slots - Serial ATA/600 RAID Supported Controller - ASPEED AST2400 32 MB Graphic(s) - 6 2.5" Bay(s) - 6 SATA Interface(s) - Processor Support (Xeon) - Ethernet - 2 USB 3.0 Port(s) - 2 x 2000 W
Intel C612 Chip - 1 TB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support - 16 Total Memory Slots - Serial ATA/600 RAID Supported Controller - ASPEED AST2400 32 MB Graphic(s) - 6 2.5" Bay(s) - 6 SATA Interface(s) - Processor Support (Xeon) - Ethernet - 2 USB 3.0 Port(s) - 2 x 2000 W
| Chipset | Intel C612 |
| Chipset | Intel C612 |
| Chipset | Intel C612 |
| Chipset Manufacturer | Intel |
| Chipset Manufacturer | Intel |
| Chipset Manufacturer | Intel |
| Chipset Model | C612 |
| Chipset Model | C612 |
| Chipset Model | C612 |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2400 |
| Graphics Controller Model | AST2400 |
| Graphics Controller Model | AST2400 |
| Graphics Memory Capacity | 32 MB |
| Graphics Memory Capacity | 32 MB |
| Graphics Memory Capacity | 32 MB |
| Maximum Memory Supported | 1 TB |
| Maximum Memory Supported | 1 TB |
| Maximum Memory Supported | 1 TB |
| Maximum Power Supply Wattage | 2000 W |
| Maximum Power Supply Wattage | 2000 W |
| Maximum Power Supply Wattage | 2000 W |
| Memory Standard | DDR4-2133/PC4-17000 |
| Memory Standard | DDR4-2133/PC4-17000 |
| Memory Standard | DDR4-2133/PC4-17000 |
| Number of PCI Express x16 Slots | 9 |
| Number of PCI Express x16 Slots | 9 |
| Number of PCI Express x16 Slots | 9 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Number of Power Supplies Installed | 2 |
| Number of Power Supplies Installed | 2 |
| Number of Power Supplies Installed | 2 |
| Number of SATA Interfaces | 6 |
| Number of SATA Interfaces | 6 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 10 |
| Number of Total Expansion Slots | 10 |
| Number of Total Expansion Slots | 10 |
| Processor Socket | Socket LGA 2011-v3 |
| Processor Socket | Socket LGA 2011-v3 |
| Processor Socket | Socket LGA 2011-v3 |
| Processor Supported | Xeon |
| Processor Supported | Xeon |
| Processor Supported | Xeon |
| Brand Name | Asus |
| Brand Name | Asus |
| Brand Name | Asus |
| Controller Type | Serial ATA/600 |
| Controller Type | Serial ATA/600 |
| Controller Type | Serial ATA/600 |
| Depth | 29.5" |
| Depth | 29.5" |
| Depth | 29.5" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Ethernet |
| Ethernet Technology | Ethernet |
| Ethernet Technology | Ethernet |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Height | 3.4" |
| Height | 3.4" |
| Height | 3.4" |
| Manufacturer | ASUS Computer International |
| Manufacturer | ASUS Computer International |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ESC4000 G3S |
| Manufacturer Part Number | ESC4000 G3S |
| Manufacturer Part Number | ESC4000 G3S |
| Manufacturer Website Address | http://usa.asus.com |
| Manufacturer Website Address | http://usa.asus.com |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | Design for the user ESC4000 G3S has a visible Q-Code/port 80 LED display LED for simple monitoring of the entire boot process from the early hardware-awakening stages to the launch of the operating system and beyond. With the features of quick initialization guidance of BIOS users can realize system initialization state in seconds; furthermore users are able to diagnose system instantly through POST code message in the POST stage. The rear power button location/HDD Active LED let the users check the server's status easily which saves time and effort. Also the exclusive tool-less rail kit design helps the user to deploy the servers in an easy and simple way. |
| Marketing Information | Design for the user ESC4000 G3S has a visible Q-Code/port 80 LED display LED for simple monitoring of the entire boot process from the early hardware-awakening stages to the launch of the operating system and beyond. With the features of quick initialization guidance of BIOS users can realize system initialization state in seconds; furthermore users are able to diagnose system instantly through POST code message in the POST stage. The rear power button location/HDD Active LED let the users check the server's status easily which saves time and effort. Also the exclusive tool-less rail kit design helps the user to deploy the servers in an easy and simple way. |
| Marketing Information | Design for the user ESC4000 G3S has a visible Q-Code/port 80 LED display LED for simple monitoring of the entire boot process from the early hardware-awakening stages to the launch of the operating system and beyond. With the features of quick initialization guidance of BIOS users can realize system initialization state in seconds; furthermore users are able to diagnose system instantly through POST code message in the POST stage. The rear power button location/HDD Active LED let the users check the server's status easily which saves time and effort. Also the exclusive tool-less rail kit design helps the user to deploy the servers in an easy and simple way. |
| Memory Technology | DDR4 SDRAM |
| Memory Technology | DDR4 SDRAM |
| Memory Technology | DDR4 SDRAM |
| Number of Total Memory Slots | 16 |
| Number of Total Memory Slots | 16 |
| Number of Total Memory Slots | 16 |
| Operating System Supported | SuSE Linux Enterprise Server |
| Operating System Supported | Red Hat Enterprise Linux |
| Operating System Supported | CentOS |
| Operating System Supported | Windows Server 2008 R2 Enterprise |
| Operating System Supported | SuSE Linux Enterprise Server |
| Operating System Supported | Red Hat Enterprise Linux |
| Operating System Supported | Windows Server 2012 |
| Operating System Supported | Windows Server 2012 R2 |
| Operating System Supported | CentOS |
