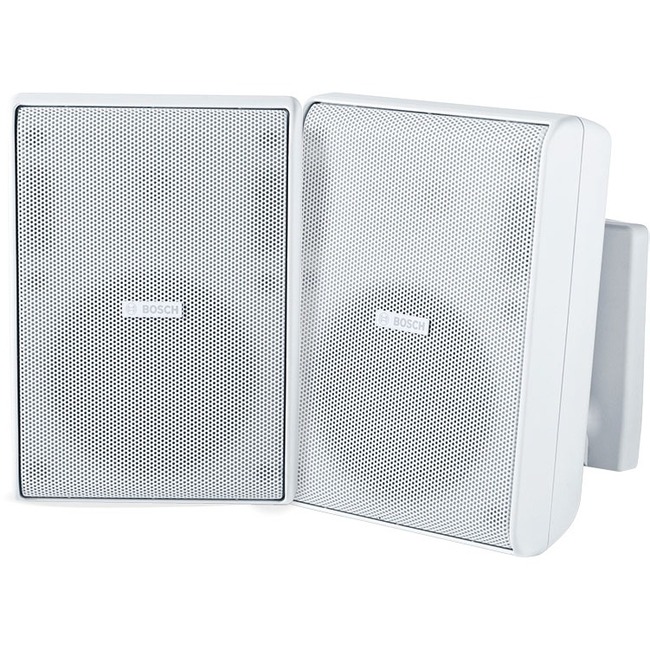

Bosch LB20-PC30-5 2-way Indoor/Outdoor Ceiling Mountable, Surface Mount, Wall Mountable Speaker - 75 W RMS - White - 300 W (PMPO) - 5.25" Polypropylene Woofer - 0.75" Ferrofluid Tweeter - 60 Hz to 20 kHz - 8 Ohm
300 W (PMPO) - 5.25" Polypropylene Woofer - 0.75" Ferrofluid Tweeter - 60 Hz to 20 kHz - 8 Ohm
| Crossover Type | 2-way |
| RMS Output Power | 75 W |
| Speaker Installation | Indoor/Outdoor |
| Tweeter Driver Material | Ferrofluid |
| Tweeter Driver Size | 0.75" |
| Woofer Diameter | 5.25" |
| Woofer Driver Material | Polypropylene |
| Brand Name | Bosch |
| Depth | 6.06" |
| Form factor | Wall Mountable |
| Form factor | Surface Mount |
| Form factor | Ceiling Mountable |
| Height | 10" |
| Impedance | 8 Ohm |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | LB20-PC30-5L |
| Manufacturer Website Address | http://www.bosch.com |
| Marketing Information | The LB20-PC30-5 from Bosch is a high-performance two-way full-range 5.25" (133 mm) surface mount speaker with excellent wide uniform coverage and outstanding performance. It is designed for background and foreground music paging and sound reinforcement and it's ideal for a wide variety of indoor and outdoor applications such as restaurants bars patios retail fitness clubs hospitality theme parks leisure venues and others. With unparalleled ease-of-installation sturdy weather resistance modern and delicate look and its flexible mounting options the LB20-PC30-5 is the perfect solution for a wide variety of surface mount applications.
The LB20-PC30-5 includes the unique and innovative mounting system from Bosch making every installation quick simple and reliable. The mounting system allows for 90 degrees of rotation horizontally and 45 degrees of rotation vertically and it can be easily installed on walls and ceilings. The mounting system comes already assembled and ready to be used ready to make any job easier.
The LB20-PC30-5 utilizes a 30 W transformer that offers a selection of 3.7 W (70 V only) 7.5 W 15 W or 30 W delivered to the speaker system using either 70 V or 100 V lines or 8 Ω bypass for low impedance lines. Selection is done with a convenient switch on the input panel located on the rear of the speaker.
The LB20-PC30-5 has been carefully engineered to resist outdoor environments without compromising on performance for indoor applications. The full-range speaker is IP54 rated and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun salt and moisture.
All LB20 models are available in black or white and can be easily painted to match the décor. Transformer versions are also available for constant voltage systems.
The wide range of LB20 surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions and to be used in combination with other LB20 ceiling and in-wall speakers. |
| Marketing Information | The LB20-PC30-5 from Bosch is a high-performance two-way full-range 5.25" (133 mm) surface mount speaker with excellent wide uniform coverage and outstanding performance. It is designed for background and foreground music paging and sound reinforcement and it's ideal for a wide variety of indoor and outdoor applications such as restaurants bars patios retail fitness clubs hospitality theme parks leisure venues and others. With unparalleled ease-of-installation sturdy weather resistance modern and delicate look and its flexible mounting options the LB20-PC30-5 is the perfect solution for a wide variety of surface mount applications.
The LB20-PC30-5 includes the unique and innovative mounting system from Bosch making every installation quick simple and reliable. The mounting system allows for 90 degrees of rotation horizontally and 45 degrees of rotation vertically and it can be easily installed on walls and ceilings. The mounting system comes already assembled and ready to be used ready to make any job easier.
The LB20-PC30-5 utilizes a 30 W transformer that offers a selection of 3.7 W (70 V only) 7.5 W 15 W or 30 W delivered to the speaker system using either 70 V or 100 V lines or 8 ? bypass for low impedance lines. Selection is done with a convenient switch on the input panel located on the rear of the speaker.
The LB20-PC30-5 has been carefully engineered to resist outdoor environments without compromising on performance for indoor applications. The full-range speaker is IP54 rated and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun salt and moisture.
All LB20 models are available in black or white and can be easily painted to match the décor. Transformer versions are also available for constant voltage systems.
The wide range of LB20 surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions and to be used in combination with other LB20 ceiling and in-wall speakers. |
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 60 Hz |
| Package Contents | - LB20-PC30-5 Speaker 5" Cabinet 70/100V Pair
- Mounting Bracket
- 5-mm Allen Wrench
|
| Packaged Quantity | 2 |
| PMPO Output Power | 300 W |
| Product color | White |
| Product Model | LB20-PC30-5 |
| Product Name | LB20-PC30-5 Speaker 5" Cabinet 70/100V Pair |
| Product Type | Speaker |
| Sensitivity | 115 dB |
| Weight (Approximate) | 7.05 lb |
| Width | 7.1" |
