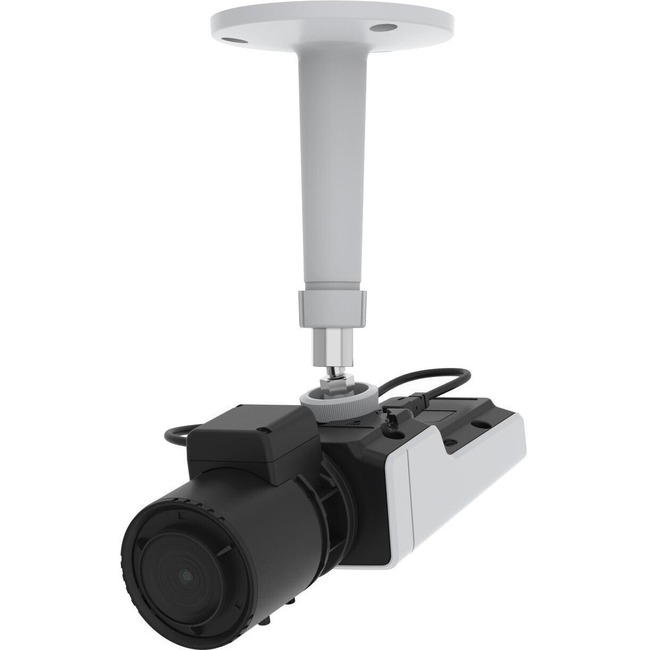

AXIS M1137 MK II 5 Megapixel Network Camera - Color - Box - H.265, H.264, Motion JPEG, Zipstream, H.264B (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) - 2592 x 1944 - 3.50 mm- 10 mm Varifocal Lens - 2.9x Optical - RGB CMOS - Fast Ethernet - Tripod Mount
H.265, H.264, Motion JPEG, Zipstream, H.264B (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) - 2592 x 1944 - 3.50 mm- 10 mm Varifocal Lens - 2.9x Optical - RGB CMOS - Fast Ethernet - Tripod Mount
| Field of View | 99°-31° / 71°-24° |
| Lens Mount Type | CS-Mount |
| Maximum Aperture | f/1.8 |
| Minimum Focal Length | 3.50 mm |
| Minimum Operating Temperature | -4°F (-20°C) |
| Network (RJ-45) | Yes |
| Operating Humidity | 85% |
| Brand Name | AXIS |
| Color Supported | Color |
| Connectivity technology | Wired |
| Effective Camera Resolution | 5 Megapixel |
| Ethernet Technology | Fast Ethernet |
| Features | Tampering Alarm |
| Features | Wide Dynamic Range |
| Features | Privacy Masking |
| Features | Mirror |
| Features | Password Protection |
| Features | Audio Detection |
| Features | Vehicle Detection |
| Features | SD Card Local Storage |
| Features | Built-in Microphone |
| Features | Day/Night |
| Form factor | Box |
| Image Sensor Size | 1/2.7" |
| Image Sensor Type | RGB CMOS |
| Input voltage | 10 V DC |
| Input voltage | 28 V DC |
| Lens Type | Varifocal |
| Limited Warranty | 5 Year |
| Longest Shutter Speed | 1/5 Second |
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02581-001 |
| Manufacturer Website Address | http://www.axis.com |
| Marketing Information | This affordable and compact box camera delivers 5 MP resolution with superb image quality even in low light conditions. Designed as a visible deterrent it helps discourage trespassing and other unwanted activities. More bang for your buck This affordable Axis M-line camera includes a built-in microphone and audio recording letting you hear and register sound in a fixed area. Thanks to support for PoE and redundant DC power you get flexible installation and your data is safeguarded in the event of a power outage. It includes signed firmware and secure boot to ensure only authorized firmware is installed and that the firmware hasn't been compromised. And Axis Zipstream with support for H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore it comes with AXIS Object Analytics preinstalled so you can detect and classify humans and vehicles. Great image quality even in low light With 5 MP resolution at up to 30 fps AXIS M1137 Mk II delivers superb video quality even in low light conditions. Featuring Axis Lightfinder it offers images in true colors even in low light. And with Axis Forensic WDR you get clarity even when there's both dark and light areas in the scene. Ideal for various surveillance situations it includes a CS-mount with support for motorized i-CS lenses enabling remote zoom. Use our lens calculator to select a lens that meets your specific requirements. Designed for deterrence Designed to act as a deterrent AXIS M1137 Mk II lets potential offenders know you're watching and helps prevent unwanted activities. This compact box camera provides a clearly visible fixed angle of view making it easy to see exactly where the camera's pointing and allowing you to record both audio and video in a precisely defined area. And thanks to edge-to-edge technology it can be connected to Axis speakers such as an Axis ceiling speaker. |
| Maximum Focal Length | 10 mm |
| Maximum frame rate | 30 fps |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Video Resolution | 2592 x 1944 |
| Mount Type | Tripod Mount |
| Optical zoom | 2.9x |
| Package Contents | - M1137 Mk II Box Camera
- AXIS T91A11 Stand White
- installation guide
- Windows decoder 1-user license
|
| Power source type | PoE |
| Power source type | DC |
| Product Model | M1137 MK II |
| Product Name | M1137 Mk II Box Camera |
| Product Series | M11 |
| Product Type | Network Camera |
| Shortest Shutter Speed | 1/33500 Second |
| Storage Type | Memory Card |
| Video Formats | H.264B (MPEG-4 Part 10/AVC) |
| Video Formats | Zipstream |
| Video Formats | H.264 |
| Video Formats | H.264M (MPEG-4 Part 10/AVC) |
| Video Formats | Motion JPEG |
| Video Formats | H.265 |
| Video Formats | H.265 (MPEG-H Part 2/HEVC) |
| Video Formats | H.264H (MPEG-4 Part 10/AVC) |
| Weight (Approximate) | 5.82 oz |
