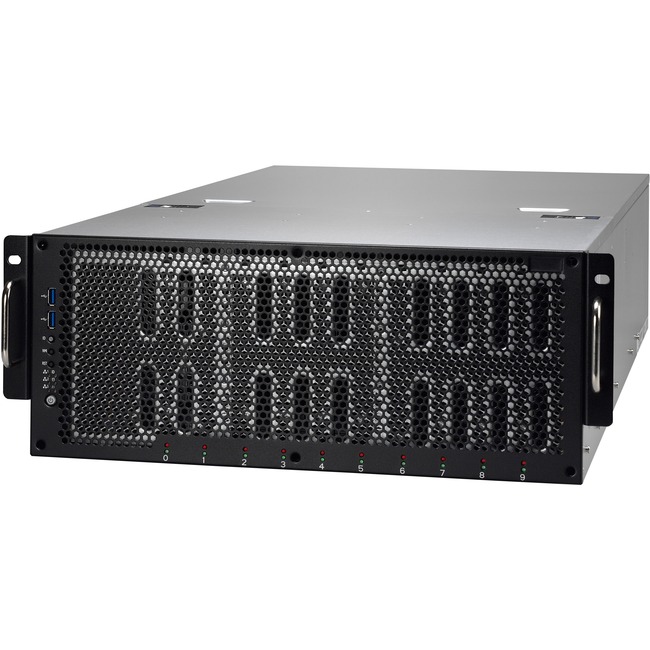

Tyan FT77CB7079 Barebone System - 4U Rack-mountable - Socket R LGA-2011 - 2 x Processor Support

Tyan FT77CB7079 Barebone System - 4U Rack-mountable - Socket R LGA-2011 - 2 x Processor Support

New
Tyan FT77CB7079 Barebone System - 4U Rack-mountable - Socket R LGA-2011 - 2 x Processor Support - Intel C612 Chip - 3 TB DDR4 SDRAM DDR4-2400/PC4-19200 Maximum RAM Support - 24 Total Memory Slots - Serial ATA/600 RAID Supported Controller - ASPEED AST2400 16 MB Graphic(s) - 10 3.5" Bay(s) - 10 SATA Interface(s) - Processor Support (Xeon) - 10 Gigabit Ethernet - 2 USB 3.0 Port(s) - 3 x 3200 W - 3 Year
0 Review(s) Item: B7079F77CV10HR-2T-N | By: Tyan |  0 In Stock

Sorry This Product is Currently not Available to Buy.

  • Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
  • DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
  • Optimize business network's performance with 10 Gigabit Ethernet connectivity
  • Provides 2 USB ports for responsive and expanded device connections
  • Serial ATA/600 interface provides quick data transfer and greater throughput
More Details
Sorry This Product is Currently not Available to Buy.

You may be also interested
r1
-52% Quick View
Cisco C220 M5 1U Rack Server - 2 x Intel Xeon Bronze 3106 1.70 GHz - 64 GB RAM - 12Gb/s SAS Controller
$6,501.60 $13,500.00 0 Review(s)
r1
-17% Quick View
HPE ProLiant DL380 G10 2U Rack Server - 1 x Intel Xeon Bronze 3204 1.90 GHz - 16 GB RAM - Serial ATA/600 Controller
$4,160.56 $5,007.00 0 Review(s)
r1
-29% Quick View
Dell Precision 3000 3660 Workstation - Intel Core i7 Dodeca-core (12 Core) i7-12700 12th Gen 2.10 GHz - 32 GB DDR5 SDRAM RAM - 512 GB SSD - Tower
$2,282.51 $3,232.72 0 Review(s)
r1
Quick View
Lenovo ThinkSystem SR650 7X06A0FENA 2U Rack Server - 1 x Intel Xeon Silver 4214 2.20 GHz - 16 GB RAM - Serial ATA/600 Controller
$3,362.51 $3,099.00 0 Review(s)
r1
-37% Quick View
Dell Precision 3000 3460 Workstation - Intel Core i7 Hexadeca-core (16 Core) i7-13700 13th Gen 2.10 GHz - 16 GB DDR SDRAM RAM - 512 GB SSD - Small Form Factor
$1,402.24 $2,238.25 0 Review(s)
r1
-52% Quick View
Cisco C240 M4 2U Rack Server - 2 x Intel Xeon E5-2650 v3 2.30 GHz - 16 GB RAM - 12Gb/s SAS, Serial Attached SCSI (SAS), Serial ATA Controller
$5,191.65 $10,780.00 0 Review(s)
r1
Quick View
Lenovo ThinkStation P620 30E00106US Workstation - 1 x AMD Ryzen Threadripper PRO Dodeca-core (12 Core) 5945WX 4.10 GHz - 64 GB DDR4 SDRAM RAM - 2 TB SSD - Tower
$4,546.27 $4,369.00 0 Review(s)
r1
-52% Quick View
Cisco B200 M5 Blade Server - 2 x Intel Xeon Gold 5122 Quad-core (4 Core) 3.60 GHz - 192 GB Installed DDR4 SDRAM - Serial ATA, 12Gb/s SAS Controller - 2 Processor Support - 3 TB RAM Support - 10 Gigabit Ethernet - Matrox G200e 8 MB Graphic Card 6X32GB VIC1340
$9,913.22 $20,583.91 0 Review(s)
r1
-69% Quick View
HPE ProLiant DL380 G10 Plus 2U Rack Server - 1 x Intel Xeon Silver 4310 2.10 GHz - 32 GB RAM - 12Gb/s SAS Controller
$3,485.10 $11,242.00 0 Review(s)
r1
-52% Quick View
Cisco B200 M5 Blade Server - 2 x Intel Xeon Gold 5118 Dodeca-core (12 Core) 2.30 GHz - 96 GB Installed DDR4 SDRAM - Serial ATA, 12Gb/s SAS Controller - 2 Processor Support - 3 TB RAM Support - 10 Gigabit Ethernet - Matrox G200e 8 MB Graphic Card 6X16GB VIC1340
$8,542.28 $17,737.33 0 Review(s)
r1
Quick View
Dell Precision 3000 3660 Workstation - Intel Core i7 Dodeca-core (12 Core) i7-12700 12th Gen 2.10 GHz - 16 GB DDR5 SDRAM RAM - 512 GB SSD - Tower - Black
$1,661.04 0 Review(s)
r1
-65% Quick View
HPE ProLiant DL160 G10 1U Rack Server - 1 x Intel Xeon Silver 4208 2.10 GHz - 16 GB RAM - Serial ATA/600 Controller
$1,336.10 $3,781.00 0 Review(s)
r1
-52% Quick View
Cisco B200 M4 Blade Server - 2 x Intel Xeon E5-2660 v3 2.60 GHz - 256 GB RAM
$10,820.59 $22,468.00 0 Review(s)
r1
Quick View
Lenovo ThinkSystem ST650 V2 7Z74A02MNA 4U Tower Server - 1 x Intel Xeon Silver 4310 2.10 GHz - 32 GB RAM - Serial ATA/600 Controller
$6,185.18 $5,909.00 0 Review(s)
r1
Quick View
Lenovo ThinkStation P360 30FA0018US Workstation - 1 x Intel Core i5 Hexa-core (6 Core) i5-12500T 12th Gen 2 GHz - 16 GB DDR5 SDRAM RAM - 512 GB SSD - Tiny - Black
$1,313.23 $1,299.00 0 Review(s)
r1
Quick View
Lenovo ThinkStation P620 30E000NCUS Workstation - 1 x AMD Ryzen Threadripper PRO Hexadeca-core (16 Core) 5955WX 4 GHz - 64 GB DDR4 SDRAM RAM - 2 TB SSD - Tower
$7,630.45 $7,339.00 0 Review(s)
r1
Quick View
Lenovo ThinkStation P620 30E000NBUS Workstation - 1 x AMD Ryzen Threadripper PRO Dodeca-core (12 Core) 5945WX 4.10 GHz - 64 GB DDR4 SDRAM RAM - 2 TB SSD - Tower
$7,283.09 $6,609.00 0 Review(s)
r1
Quick View
Lenovo ThinkSystem SE350 7D1XA02CNA 1U Rack Server - 1 x Intel Xeon D-2163IT 2.10 GHz - 32 GB RAM - Serial ATA/600 Controller
$4,597.42 $4,399.00 0 Review(s)
r1
-51% Quick View
HPE ProLiant MicroServer Gen10 Plus v2 Ultra Micro Tower Server - 1 x Intel Xeon E-2314 2.80 GHz - 16 GB RAM - 1 TB HDD - (1 x 1TB) HDD Configuration - Serial ATA Controller
$1,128.77 $2,299.00 0 Review(s)
r1
-52% Quick View
Cisco C220 M5 1U Rack Server - 2 x Intel Xeon Silver 4116 2.10 GHz - 64 GB RAM - 12Gb/s SAS Controller
$6,488.89 $13,473.60 0 Review(s)
Tyan FT77CB7079 Barebone System - 4U Rack-mountable - Socket R LGA-2011 - 2 x Processor Support - Intel C612 Chip - 3 TB DDR4 SDRAM DDR4-2400/PC4-19200 Maximum RAM Support - 24 Total Memory Slots - Serial ATA/600 RAID Supported Controller - ASPEED AST2400 16 MB Graphic(s) - 10 3.5" Bay(s) - 10 SATA Interface(s) - Processor Support (Xeon) - 10 Gigabit Ethernet - 2 USB 3.0 Port(s) - 3 x 3200 W - 3 Year
Intel C612 Chip - 3 TB DDR4 SDRAM DDR4-2400/PC4-19200 Maximum RAM Support - 24 Total Memory Slots - Serial ATA/600 RAID Supported Controller - ASPEED AST2400 16 MB Graphic(s) - 10 3.5" Bay(s) - 10 SATA Interface(s) - Processor Support (Xeon) - 10 Gigabit Ethernet - 2 USB 3.0 Port(s) - 3 x 3200 W - 3 Year

Product Specifications

ChipsetIntel C612
Chipset ManufacturerIntel
Chipset ModelC612
Graphics Controller ManufacturerASPEED
Graphics Controller ModelAST2400
Graphics Memory Capacity16 MB
Maximum Memory Supported3 TB
Maximum Power Supply Wattage3200 W
Memory StandardDDR4-2400/PC4-19200
Number of PCI Express x16 Slots8
Number of Power Supplies Installed3
Number of Processors Supported2
Number of SATA Interfaces10
Number of Total Expansion Slots12
Processor SocketSocket R LGA-2011
Processor SupportedXeon
Brand NameTyan
Controller TypeSerial ATA/600
Depth30.3"
Environmental CertificationRoHS-6
Environmentally FriendlyYes
Ethernet Technology10 Gigabit Ethernet
Form factorRack-mountable
Height6.9"
Input voltage120 V AC
Input voltage230 V AC
Limited Warranty3 Year
ManufacturerTyan Computer Corp
Manufacturer Part NumberB7079F77CV10HR-2T-N
Manufacturer Website Addresshttp://www.tyan.com
Marketing Information

The FT77C-B7079 is TYAN's third generation of the 8 GPU server platform that helped pioneer the GPGPU industry. Featuring two Xeon E5-2600 v3/v4 processors and a quartet of Avago/PLX PEX8747 PCIe chips the FT77C-B7079 supports 8 GPUs with a 2:1 oversubscription of each x16 root port. This architecture lends itself to high amounts of CPU to GPU bandwidth across pairs of GPU cards and is ideal for embarrassingly parallel workloads such as BLAST searches brute force cryptography parallel rendering large scale facial recognition numerical weather prediction workloads and many others. The platform also enables outstanding performance in artificial intelligence machine learning and deep neural network applications.

TYAN maintains a list of GPU and Xeon Phi coprocessor cards that have passed rigorous validation testing ensuring reliability during the most intensive of workloads. GPU cards with a TDP of up to 300W have passed validation testing including Nvidia's Tesla K80 and P100. An array of hot swappable and redundant fans deliver enormous amounts of airflow allowing the platform to cool even the hottest of accelerator cards.

TYAN's FT77C-B7079 has seen adoption and been proven within some of the world's largest datacenters. The same technology relied upon by the top tiers of the world's leading internet service providers is available for production within your enterprise corporate data center or research university.

Expansion and I/O

To drive a total of 8 GPUs from a Dual Socket Intel Xeon E5-2600 platform 128 PCIe lanes must be delivered across a total of eight PCIe Gen 3.0 x16 slots. Four Avago/PLX PEX8747 switch chips are deployed to group GPUs into pairs that each share a single x16 uplink. This architecture allows for minor oversubscription of PCIe root ports and provides maximum CPU to GPU bandwidth for such a large number of accelerator cards.

Many GPU servers are chained together to form clusters of varying sizes. To support high speed interconnects such as FDR or QDR Infiniband a PCIe x8 mezzanine card slot is available beneath the system's power supplies. This allows the deployment of a high speed networking card alongside a full compliment of 8 accelerator cards.

Processor and Memory Options

To provide maximum performance in HPC applications the FT77C-B7079 supports Xeon E5-2600 v3 and v4 processors with a TDP of up to 160W.

Maximum memory is also supported on this platform with a total of 24 DIMM slots. Supporting RDIMM LRDIMM and 3DS-LRDIMM the FT77C-B7079 can support up to 3TB of RAM when fully populated.

Networking

The B7079F77CV10HR-N/X SKUs provides a pair of 1000Base-T networking ports standard powered by a dual-port Intel i350-BT2 network controller. For applications that require faster base Ethernet the B7079F77CV10HR-2T-N/X SKUs upgrade the ethernet controller to Intel's 10GBase-T X540-AT2. Both Ethernet controllers feature outstanding driver support in both Windows and Linux operating systems.

For clustering applications that require an even faster and lower latency interconnect than 1000Base-T or 10GBase-T a LAN mezzanine card slot sits beneath the server's power supplies. With a PCIe x8 link it is capable of link speeds up to 56Gb/s and supports FDR Infiniband.

Memory TechnologyDDR4 SDRAM
Number of Total Memory Slots24
Operating System SupportedRed Hat Enterprise Linux 7.0 x64
Operating System SupportedRed Hat Enterprise Linux 6.2
Operating System SupportedRed Hat Enterprise Linux 6.3
Operating System SupportedWindows Server 2008 R2 Enterprise
Operating System SupportedWindows 8.1 Enterprise x64
Operating System SupportedWindows 7 Enterprise x64
Operating System SupportedRed Hat Enterprise Linux 6.2 x64
Operating System SupportedSuSE Linux Enterprise Server 11 x64
Operating System SupportedWindows Server 2012
Operating System SupportedSuSE Linux Enterprise Server 10 x64
Operating System SupportedRed Hat Enterprise Linux 5.8 x64
Operating System SupportedWindows Server 2008 R2 Enterprise x64
Operating System SupportedRed Hat Enterprise Linux 6.3 x64
Operating System SupportedWindows Server 2012 x64
Operating System SupportedWindows 7 Enterprise
Operating System SupportedSuSE Linux Enterprise Server 11
Operating System SupportedWindows 8 Enterprise
Operating System SupportedRed Hat Enterprise Linux 6.4 x64
Operating System SupportedRed Hat Enterprise Linux 7.2 x64
Operating System SupportedRed Hat Enterprise Linux 6.4
Operating System SupportedRed Hat Enterprise Linux 5.8
Operating System SupportedRed Hat Enterprise Linux 6.0
Operating System SupportedRed Hat Enterprise Linux 6.1
Operating System SupportedRed Hat Enterprise Linux 6.1 x64
Operating System SupportedRed Hat Enterprise Linux 6.5 x64
Operating System SupportedWindows Server 2012 R2 x64
Operating System SupportedWindows 8 Enterprise x64
Operating System SupportedRed Hat Enterprise Linux 6.0 x64
Package Contents
  • FT77CB7079 Barebone System
  • 1 x Quick Installation Guide
  • 1 x TYAN Device Driver CD
  • 1 x Display/USB2.0 Port via a Dongle Cable
  • 1 x CPU Air Duct
  • 8 x For NV-Tesla GPU Card brackets
  • 8 x GPU Power Cables
Packaged Quantity1
Product ModelFT77CB7079
Product NameFT77CB7079 Barebone System
Product TypeBarebone System
Rack Height4U
UPC Alternates635872036927
Width17.2"

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
