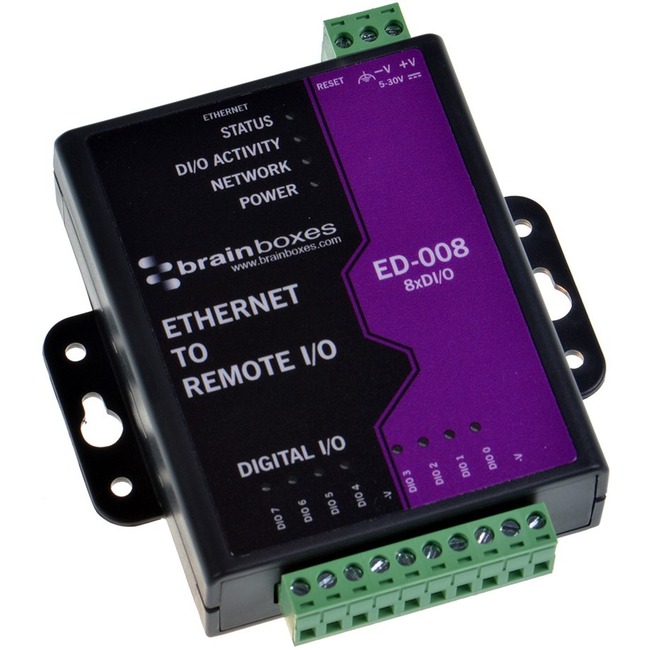

Brainboxes - Ethernet to 8 Digital IO Lines

Name: Brainboxes - Ethernet to 8 Digital IO Lines
Brand: Brainboxes Limited
SKU: UK1961
Price: 137.96 USD

New

Brainboxes - Ethernet to 8 Digital IO Lines - Twisted Pair - 1 x Network (RJ-45) - 10/100Base-TX - Fast Ethernet - Rail-mountable

0 Review(s) Item: ED-008 | By: Brainboxes | 0 In Stock

Sorry This Product is Currently not Available to Buy.

8 Digital Inputs/Outputs
Factory floor process control and automation
User friendly software interface, Legacy compatible
0°C to +60°C Temperature range, Wall mountable
Software APIs for Visual Basic, C# and more

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Brainboxes - Ethernet to 8 Digital IO Lines - Twisted Pair - 1 x Network (RJ-45) - 10/100Base-TX - Fast Ethernet - Rail-mountable
Twisted Pair - 1 x Network (RJ-45) - 10/100Base-TX - Fast Ethernet - Rail-mountable

Product Specifications

Additional Information	IO Channels IO Protocols Modbus TCP or DCON ASCII (over TCP or Virtual COM port) Description 8 Digital Inputs/Outputs Digital Inputs 8 Digital Outputs 8 Analog Inputs 0 Analog Outputs 0 Watchdog When device comms is lost outputs can be set to predetermined state Power On Values Outputs can be set to predetermined values on power on Safe Values When Input triggered outputs can be automatically set to predetermined value Digital IO Input Logic Level 0 -30.0V to +1.0V Input Logic Level 1 +2.0V to +30V Input Latches Triggered by user programmable positive or negative edges stays true until acknowledged Input Counter User progammable- counts positive or negative transitions up to 200Hz Digital Output Type Open drain transistor protected MosFET. Short circuit protection up to 36V. Over temperature shutdown -175°C typical 150°C min Maximum Output Load Voltage 30 VDC Maximum Output Current Sink 0.85A per channel Serial Port Serial Gateway No Protocol RS232 Network Number of Ports 1 Network Port Type RJ45 Jack 10/100 MHz Autosensing Cross Over Autosensing (MDIX) Network Protocols ICMP IP TCP DHCP HTTP Protection 1500V Magnetic Isolation between ports and network Power Power Input 5V - 30V DC input reverse polarity protected Power Supply 1 Description Global Power Supply - PW-600 Power Supply 2 Description Power supply PW-650 Max Input 35 Volts General Operating Temperature Range 0 °C to +60 °C / 32 °F to +140 °F Industrial Standard No Storage Temperature 0 °C to +70 °C / +32 °F to +158 °F Galvanic Isolation No Operating Systems Microsoft Windows 10 Suitable for any device with a Web Browser Microsoft Windows 8 32 bit & 64 bit Editions Raspberry Pi Android Microsoft Windows 7 32 bit & 64 bit Editions iOS Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux
Brand Name	Brainboxes
Country of origin	United Kingdom
Depth	3.9"
Environmental Certification	WEEE
Environmental Certification	RoHS
Environmentally Friendly	Yes
Height	1"
Limited Warranty	Lifetime

Manufacturer	Brainboxes Limited
Manufacturer Part Number	ED-008
Manufacturer Website Address	http://www.brainboxes.com
Marketing Information	Ethernet to DIO device: 8 digital input/output channels. Powerful ARM 80 MHz 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications. Typical applications are control and switching of AC and DC motors Fans relay drivers pumps Voltage Regulators and Battery Chargers LEDs and Bulbs Air Conditioning Heaters and Solenoids.. More from the Manufacturer
Package Contents	Ethernet to 8 Digital IO Lines Installation CD Including Manual Microsoft Signed Drivers & Utilities Quick Start Guide
Product Name	Ethernet to 8 Digital IO Lines
Product Type	Ethernet To Digital IO Module
UPC Alternates	837324009811
Weight (Approximate)	4.48 oz
Width	4.6"
