Socket Mobile DuraSled DS820 - 1D/2D Linear Barcode Plus QR Code Scanner - Wireless Connectivity - 14.96" Scan Distance - 1D, 2D - LED - Linear - Omni-directional - Bluetooth - USB - IP40 - Retail, Hospitality, Logistics, Healthcare, Inventory, Transportation, Warehouse, Field Sales/Service
Wireless Connectivity - 14.96" Scan Distance - 1D, 2D - LED - Linear - Omni-directional - Bluetooth - USB - IP40 - Retail, Hospitality, Logistics, Healthcare, Inventory, Transportation, Warehouse, Field Sales/Service
| Battery Weight | 0.44 oz |
| Drop Specification | Multiple drops to vinyl covered concrete at about 3 ft or 1 m |
| Field of View (Horizontal) | 45° |
| Field of View (Vertical) | 34° |
| Ingress Protection (IP) Rating | IP40 |
| Ingress Protection (IP) Rating | IP40 |
| Maximum Ambient Light | 100000 lux |
| Maximum Element Resolution (Code 39) | 5 mil |
| Maximum Element Resolution (DataMatrix) | 10 mil |
| Minimum Print Contrast | 25% |
| Scan Pattern | Omni-directional |
| Scanning Capability | 2D |
| Scanning Capability | 1D |
| Scanning Distance | 14.96" |
| Application/Usage | Warehouse |
| Application/Usage | Inventory |
| Application/Usage | Field Sales/Service |
| Application/Usage | Hospitality |
| Application/Usage | Retail |
| Application/Usage | Transportation |
| Application/Usage | Healthcare |
| Application/Usage | Logistics |
| Barcode Symbology Supported | 1D: - Codabar
- Code 39
- Code 93
- Code 128
- EAN-13
- EAN-8
- Interleaved 2 of 5
- ISBT 128
- UPC A
- UPC E1
- Chinese 2 of 5
- Codabar
- Code 11
- Code 16KCode 39
- Code 93
- Code 128
- Discrete 2 of 5
- EAN-13
- EAN-8
- GS1 Databar
- Industrial 2 of 5
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI Plessey
- UPC A
- UPC E1
- Standard 2 of 5
- UK Plessey
2D:
- Data Matrix
- Micro QR Code
- PDF417
- QR Code
- Aztec
- Data Matrix
- Han Xin
- Micro PDF417
- Micro QR Code
- PDF417
- QR Code
|
| Brand Name | Socket Mobile |
| Compatibility | Apple - iPhone 11 iPhone XR |
| Connectivity technology | Wireless |
| Country of origin | United States |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Height | 1.1" |
| Host interface | USB |
| Image Sensor Type | Linear |
| Length | 6.8" |
| Light source | LED |
| Limited Warranty | 1 Year |
| Manufacturer | Socket Mobile Inc |
| Manufacturer Part Number | CX4008-3071 |
| Manufacturer Website Address | http://www.socketmobile.com |
| Marketing Information | Linear Barcode Plus QR Code Scanner

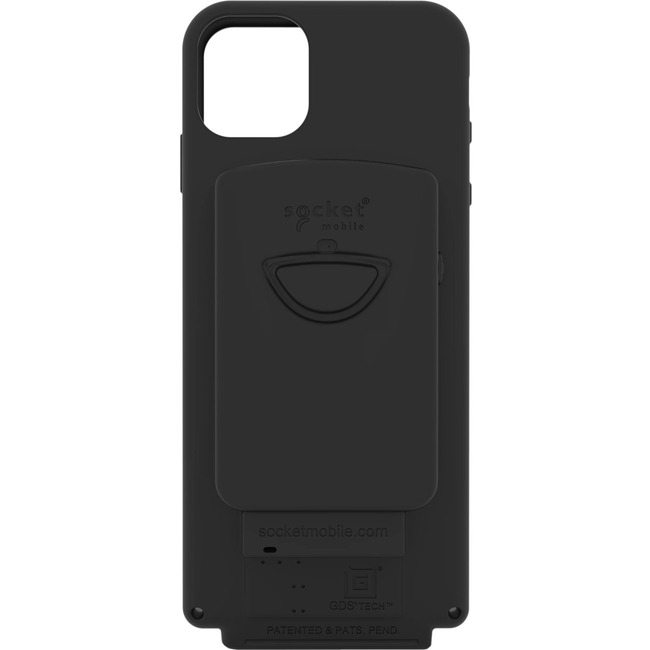

The DuraSled™ DS820 is a linear barcode & QR Code scanner sled for 1D/2D barcodes with Bluetooth wireless technology for Apple iPhones and iPods. The DuraSled reads printed or on-screen barcodes. It is easy-to-use and ideal for delivery services asset tracking ticketing and other application-driven mobile solutions. Its case protects phones from drop damage and provides simultaneous charging of the scanner and the phone.
The Capture SDK enables easy integration into native and/or web-based applications that use scanning to enhance the productivity of workers using iPhones.
|
| Package Contents | - DS820 barcode sled scanner
- 1 year limited Warranty on DuraSled barcode scanner
|
| Platform Supported | iOS |
| Product Line | DuraSled |
| Product Model | DS820 |
| Product Name | DuraSled DS820 - 1D/2D Linear Barcode Plus QR Code Scanner |
| Product Type | Barcode Scanner |
| UPC Alternates | 758497121851 |
| Weight (Approximate) | 4 oz |
| Width | 3" |
