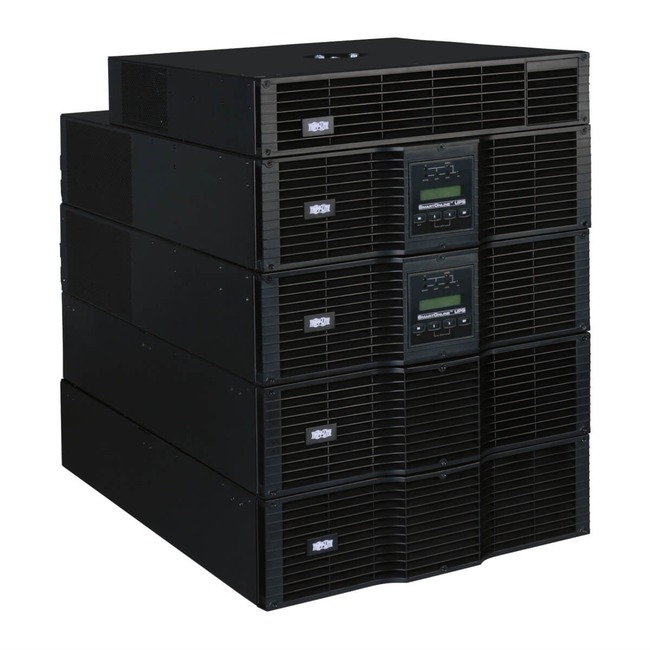

Tripp Lite UPS Smart Online 20000VA 18000W Rackmount 20kVA 120-240V USB DB9 Manual Bypass Switch Hot Swap 14U - 14U Rack/Tower - 8 Hour Recharge - 4.30 Minute Stand-by - 208 V AC, 240 V AC Input - 120 V AC, 208 V AC, 240 V AC Output - 2 x NEMA L6-30R, 4 x NEMA 5-15R, 8 x NEMA 5-15/20R, 8 x IEC 60320 C19
14U Rack/Tower - 8 Hour Recharge - 4.30 Minute Stand-by - 208 V AC, 240 V AC Input - 120 V AC, 208 V AC, 240 V AC Output - 2 x NEMA L6-30R, 4 x NEMA 5-15R, 8 x NEMA 5-15/20R, 8 x IEC 60320 C19
| Bypass Switch | Manual |
| Bypass Switch | Automatic |
| Modular Slots | Communications Slot |
| Output Frequency | 60 Hz |
| Receptacle Detail | 8 x IEC 60320 C19 |
| Receptacle Detail | 4 x NEMA 5-15R |
| Receptacle Detail | 2 x NEMA L6-30R |
| Receptacle Detail | 8 x NEMA 5-15/20R |
| Additional Information | Output Receptacles: 8 x C19 |
| Backup/Run Time (Full Load) | 4.30 Minute |
| Backup/Run Time (Half Load) | 12.50 Minute |
| Brand Name | Tripp Lite |
| Country of origin | China |
| Depth | 26" |
| Emergency Power OFF | Yes |
| Environmental Certification | RoHS |
| Form factor | Rack/Tower |
| Height | 5.1" |
| Input current | 108 A |
| Input voltage | 240 V AC |
| Input voltage | 208 V AC |
| Limited Warranty | 2 Year |
| Load Capacity | 20 kVA |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SU20KRT-1TF |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite SU20KRT-1TF 20000VA / 20kVA / 18000 watt online double-conversion UPS system offers complete power protection for critical server network and telecommunications equipment in a 14U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 10kVA and non-redundant operation at loads between 10 and 20kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers computer rooms network closets and rugged industrial locations. |
| Network Management | SNMP Manageable |
| Output voltage | 120 V AC |
| Package Contents | - SmartOnline EZ SU20KRT-1TF 20kVA Tower/Rack Mountable UPS
- 2 x Power Modules
- 2 x Battery Packs
- 1 x Transformer
- L6-30R / C19 Parallel PDU with Bypass Switch
- 5 x Set of 4 post Rackmount Installation Rails
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
|
| Plug/Connector Type | Hardwired |
| Product Family | SmartOnline EZ |
| Product Line | SmartOnline |
| Product Name | SmartOnline EZ SU20KRT-1TF 20kVA Tower/Rack Mountable UPS |
| Product Series | EZ |
| Product Type | Dual Conversion Online UPS |
| Rack Height | 14U |
| Receptacle Type | NEMA L6-30R |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Type | NEMA 5-15R |
| Receptacle Type | IEC 60320 C19 |
| Software Included | PowerAlert Software |
| Transfer Time | 0 ns |
| Typical Battery Recharge Time | 8 Hour |
| UPC Alternates | 037332158260 |
| Weight (Approximate) | 44.10 lb |
| Width | 17.5" |
