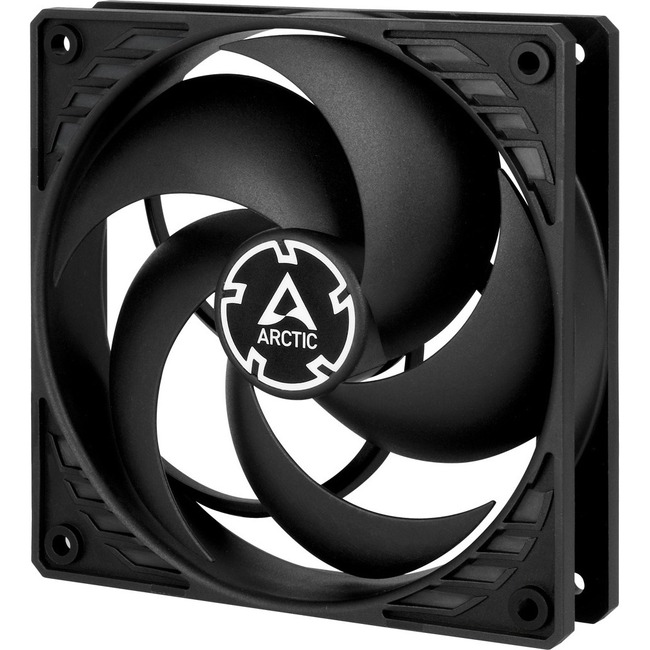

Arctic Cooling P12 PWM PST Cooling Fan - 4.72" Maximum Fan Diameter - 421.2 gal/min Maximum Airflow - 1800 rpm - Fluid Dynamic Bearing - 4-pin PWM - Case, Motherboard, Heatsink, Radiator
4.72" Maximum Fan Diameter - 421.2 gal/min Maximum Airflow - 1800 rpm - Fluid Dynamic Bearing - 4-pin PWM - Case, Motherboard, Heatsink, Radiator
| Airflow Details | 1 x 56.3CFM |
| Connectors | 4-pin PWM |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Depth | 0.98" |
| Fan Diameter Details | 1 x 120mm |
| Fan Height | 4.72" |
| Fan Speed (Max) | 1800 rpm |
| Maximum Airflow | 421.2 gal/min |
| Application/Usage | Radiator |
| Application/Usage | Motherboard |
| Application/Usage | Heatsink |
| Application/Usage | Case |
| Manufacturer | Arctic Cooling |
| Manufacturer Part Number | ACFAN00120A |
| Manufacturer Website Address | http://www.arctic-cooling.com |
| Marketing Information | Optimised for Static Pressure During the development of the new P12 PWM PST special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling even with increased air resistance. Therefore the P12 PWM PST is particularly suitable for use on heatsinks and radiators. More Efficient Technology The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation which allows the new P12 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. Maximum Quietness Minimum Vibration
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently there is no need for rubber spacers due to the steady and smooth torque of the new motor. Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Consequently we have extended the warranty to 10 years. 200 to 1800 RPM regulated via PWM PST
Thanks to the 4-pin connector the RPM can be regulated in a broad spectrum via PWM.
In this way noise is kept at a minimum while maximum cooling performance is guaranteed when needed. 0 dB Mode The P12 PWM PST is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise. High Quality Bearing Thanks to an alloy/lubricant combination developed in Germany friction within the bearing is reduced and greater efficiency is achieved. As a result there is less heat development as well as less bearing noise which means you can enjoy a longer service life from your fan. |
| Number of Fans | 1 |
| Product Model | P12 PWM PST |
| Product Name | P12 PWM PST Cooling Fan |
| Product Series | P |
| Product Type | Cooling Fan |
| UPC Alternates | 818239289604 818239675803 818241441991 872767009271 |
| Weight (Approximate) | 5.11 oz |
