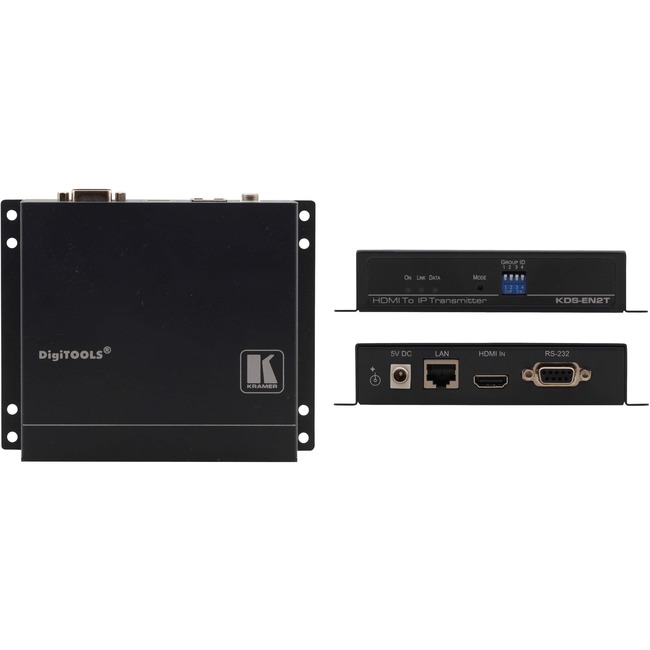

Kramer HDMI over IP Transmitter - 1 Input Device - 1 x Network (RJ-45) - 1 x HDMI In - Full HD - 1920 x 1080 - Twisted Pair - Category 7 - Rack-mountable
1 Input Device - 1 x Network (RJ-45) - 1 x HDMI In - Full HD - 1920 x 1080 - Twisted Pair - Category 7 - Rack-mountable
| Network (RJ-45) | Yes |
| Receiver Depth | 4.49" |
| Receiver Height | 1.14" |
| Receiver Weight (Approximate) | 1.10 lb |
| Receiver Width | 5.51" |
| Brand Name | Kramer |
| Connectivity technology | Wired |
| Form factor | Rack-mountable |
| Graphics Modes | Full HD |
| Limited Warranty | 7 Year |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | KDS-EN2T |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | The KDS-EN2T is an IP-based transmitter for HDMI signals. Using JPEG2000 compression technology the KDS-EN2T sends a visually lossless HD image with digital stereo over a 1000BaseT LAN to a KDS-EN2R receiver for multicasting video wall and digital signage applications. - High Flexibility - Flexible and scalable HDMI 1080p for video broadcasting with Gigabit Ethernet LAN.
- High Scalability - Up to 9 transmitters and more than 81 receivers possible in a video wall system as well as over 200 receivers from each transmitter in multicasting mode.
- Multicasting and Broadcasting Architecture - Each channel requires about 55Mbps.
- Cost Efficient Infrastructure - Transmits an HDMI signal over one CAT5e/6/7 cable.
- HDTV Compatible.
- Controls - Group ID can be defined either via the built-in DIP-switches or by using the remote utility.
- RS-232 Pass-Thru - Controls the HDMI display from the transmitter side.
- Compact DigiTOOLS® - With a built-in mounting plate for versatile installation.
|
| Maximum Video Resolution | 1920 x 1080 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents | - HDMI over IP Transmitter
- 1 x Power Supply
|
| Product Line | DigiTOOLS |
| Product Name | HDMI over IP Transmitter |
| Product Type | Video Extender Receiver |
| Twisted Pair Cable Standard | Category 7 |
