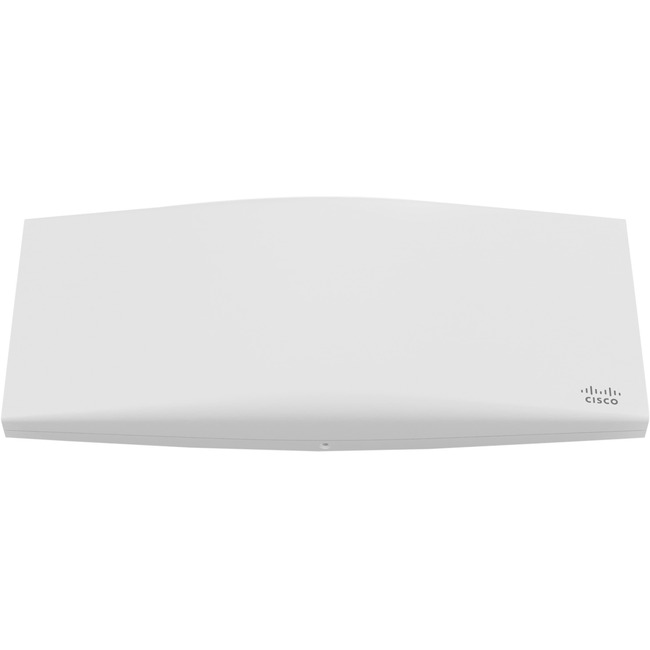

Meraki MR36 802.11ax 1.70 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - MIMO Technology - 1 x Network (RJ-45) - Gigabit Ethernet - Desktop, Ceiling Mountable, Wall Mountable, Rail-mountable
2.40 GHz, 5 GHz - MIMO Technology - 1 x Network (RJ-45) - Gigabit Ethernet - Desktop, Ceiling Mountable, Wall Mountable, Rail-mountable
| Wireless LAN Standard | 802.11ax |
| Brand Name | Meraki |
| Country of origin | Taiwan |
| Depth | 4.7" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Desktop |
| Form factor | Ceiling Mountable |
| Form factor | Rail-mountable |
| Form factor | Wall Mountable |
| Frequency band | 2.40 GHz |
| Frequency band | 5 GHz |
| Height | 1.4" |
| Limited Warranty | Lifetime |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | MR36-HW |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | High Performance 802.11ax Wireless
The Cisco Meraki MR36 is a cloud-managed 2x2:2 802.11ax access point that raises the bar for wireless performance and efficiency. Designed for nextgeneration deployments in offices schools hospitals shops and hotels the MR36 offers high throughput enterprise-grade security and simple management.
The MR36 provides a maximum of 1.7 Gbps aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/ WIPS with automated RF optimization and a fourth integrated radio delivers Bluetooth scanning and beaconing.
With the combination of cloud management high performance hardware multiple radios and advanced software features the MR36 makes an outstanding platform for the most demanding of uses-including high-density deployments and bandwidth or performance-intensive applications like voice and high-definition video
MR36 and Meraki Cloud Management
Management of the MR36 is performed through the Meraki cloud with an intuitive browser-based interface that enables rapid deployment without timeconsuming training or costly certifications. Because the MR36 is self-configuring and managed over the web it can be deployed at a remote location in a matter of minutes even without on-site IT staff.
24x7 monitoring via the Meraki cloud delivers real-time alerts if a network encounters problems. Remote diagnostic tools enable immediate troubleshooting over the web so that distributed networks can be managed with a minimum of hassle.
The MR36's firmware is automatically kept up to date via the cloud. New features bug fixes and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.
Product Highlights
- 2x2:2 MU-MIMO 802.11ax
- 1.7 Gbps dual-radio aggregate frame rate
- 24x7 real-time WIDS/WIPS and spectrum analytics via dedicated third radio
- Integrated Bluetooth Low Energy Beacon
- Integrated scanning radio
- Enhanced transmit power and receive sensitivity
- Integrated enterprise security and guest access
- Application-aware traffic shaping
- Optimized for voice and video
- Self-configuring plug-and-play deployment
- Sleek design blends into office environments
- Full-time Wi-Fi location tracking via dedicated 3rd radio
Features
Dual-radio aggregate frame rate of up to 1.7 Gbps
5 GHz 2x2:2 radio and 2.4 GHz 2x2:2 radio offer a combined dual-radio aggregate frame rate of 1.7 Gbps with up to 1201 Mbps in the 5 GHz band and 573 Mbps in the 2.4 GHz band. Technologies like transmit beamforming and enhanced receive sensitivity allow the MR36 to support a higher client density than typical enterprise-class access points resulting in better performance for more clients from each AP.
Multi User Multiple Input Multiple Output (MU-MIMO)
With support for features of 802.11ax the MR36 offers MU-MIMO and OFDMA for more efficient transmission to multiple clients. Especially suited to environments with numerous mobile devices MU-MIMO enables multiple clients to receive data simultaneously. This increases the total network performance and improves the end user experience. |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents | - MR36 Wireless Access Point
- 2 x Security Screw Options
- All Standard Mounting Hardware
|
| Product Model | MR36 |
| Product Name | MR36 Wireless Access Point |
| Product Type | Wireless Access Point |
| UPC Alternates | 810979017042 |
| Weight (Approximate) | 1.08 lb |
| Width | 9.8" |
| Wireless Transmission Speed | 1.70 Gbit/s |
