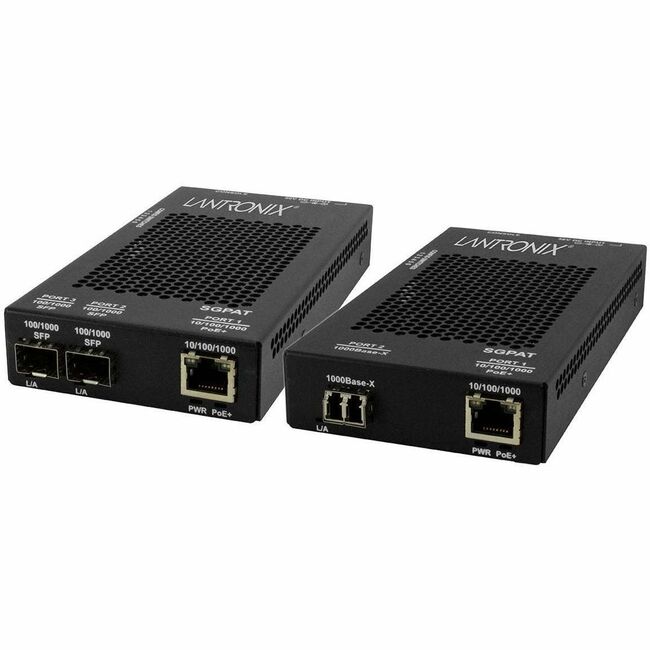

Transition Networks SGPAT1039-105 Transceiver/Media Converter - 1 x Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x LC Ports - Multi-mode - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - AC/DC - Wall Mountable, DIN Rail Mountable, Tabletop, Standalone, Shelf Mount
1 x Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x LC Ports - Multi-mode - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - AC/DC - Wall Mountable, DIN Rail Mountable, Tabletop, Standalone, Shelf Mount
| Fiber Mode Supported | Multi-mode |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Standard | 62.5/125 µm |
| Fiber Optic Cable Standard | 50/125 µm |
| Fiber Optic Cable Standard | 50/125 µm |
| Fiber Optic Cable Standard | 62.5/125 µm |
| Fiber Optic Wavelength | 850 nm |
| Fiber Optic Wavelength | 850 nm |
| PoE Port Type | PSE |
| PoE Port Type | PSE |
| Brand Name | Transition Networks |
| Brand Name | Transition Networks |
| Depth | 4.8" |
| Depth | 4.8" |
| Environmental Certification | WEEE |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | DIN Rail Mountable |
| Form factor | Wall Mountable |
| Form factor | DIN Rail Mountable |
| Form factor | Shelf Mount |
| Form factor | Tabletop |
| Form factor | Standalone |
| Form factor | Shelf Mount |
| Form factor | Tabletop |
| Form factor | Standalone |
| Form factor | Wall Mountable |
| Height | 1" |
| Height | 1" |
| Limited Warranty | Lifetime |
| Limited Warranty | Lifetime |
| Manufacturer | Transition Networks Inc |
| Manufacturer | Transition Networks Inc |
| Manufacturer Part Number | SGPAT1039-105-OZ |
| Manufacturer Part Number | SGPAT1039-105-OZ |
| Manufacturer Website Address | http://www.transition.com |
| Manufacturer Website Address | http://www.transition.com |
| Marketing Information | The SGPAT10xx-105 is a 10/100/1000Base-T to 1000Base-SX/LX Gigabit Ethernet Media Converter which easily and affordably facilitates the connection between different types of network cabling while also injecting PoE+ power through the copper RJ-45 port. Being a Power Sourcing Equipment (PSE) device the SGPAT media converter combines data received over a fiber optic link with 56VDC input power to provide power and data to a Powered Device (PD) over twisted pair cabling while complying with the IEEE 802.3at PoE+ standard which is also backwards compatible with the IEEE 802.3af PoE standard. The converter is available in 2-port 3-port and 4-port versions and includes PD signature sensing and power monitoring features. Other features include over-current protection under-current protection and fault protection input. Active Link Pass Through (ALPT) is supported which is an automatically activated version of Link Pass Through (LPT) that allows the converter to detect the loss of Receive (Rx) signals on either fiber or copper port and propagate the failure to the end devices preventing the media converter from isolating those link failures. During a Link Pass Through event the Auto Power Reset feature will re-set the power to the end PD device ensuring it is ready to go when the LPT event is corrected. |
| Marketing Information | The SGPAT10xx-105 is a 10/100/1000Base-T to 1000Base-SX/LX Gigabit Ethernet Media Converter which easily and affordably facilitates the connection between different types of network cabling while also injecting PoE+ power through the copper RJ-45 port. Being a Power Sourcing Equipment (PSE) device the SGPAT media converter combines data received over a fiber optic link with 56VDC input power to provide power and data to a Powered Device (PD) over twisted pair cabling while complying with the IEEE 802.3at PoE+ standard which is also backwards compatible with the IEEE 802.3af PoE standard. The converter is available in 2-port 3-port and 4-port versions and includes PD signature sensing and power monitoring features. Other features include over-current protection under-current protection and fault protection input. Active Link Pass Through (ALPT) is supported which is an automatically activated version of Link Pass Through (LPT) that allows the converter to detect the loss of Receive (Rx) signals on either fiber or copper port and propagate the failure to the end devices preventing the media converter from isolating those link failures. During a Link Pass Through event the Auto Power Reset feature will re-set the power to the end PD device ensuring it is ready to go when the LPT event is corrected. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Network Technology | 1000Base-SX |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10/100/1000Base-T |
| Number of Network (RJ-45) Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents | - SGPAT1039-105 Transceiver/Media Converter
- Power Supply (Australia)
|
| Package Contents | - SGPAT1039-105 Transceiver/Media Converter
- Power Supply (Australia)
|
| Power consumption | 65.50 W |
| Power consumption | 65.50 W |
| Power source | AC/DC |
| Power source | AC/DC |
| Product Model | SGPAT1039-105 |
| Product Model | SGPAT1039-105 |
| Product Name | SGPAT1039-105 Transceiver/Media Converter |
| Product Name | SGPAT1039-105 Transceiver/Media Converter |
| Product Series | SGPAT |
| Product Series | SGPAT |
| Product Type | Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| Total Number of Ports | 2 |
| UPC Alternates | 648177043989 |
| UPC Alternates | 648177043989 |
| Weight (Approximate) | 2 lb |
| Weight (Approximate) | 2 lb |
| Width | 3.3" |
| Width | 3.3" |
