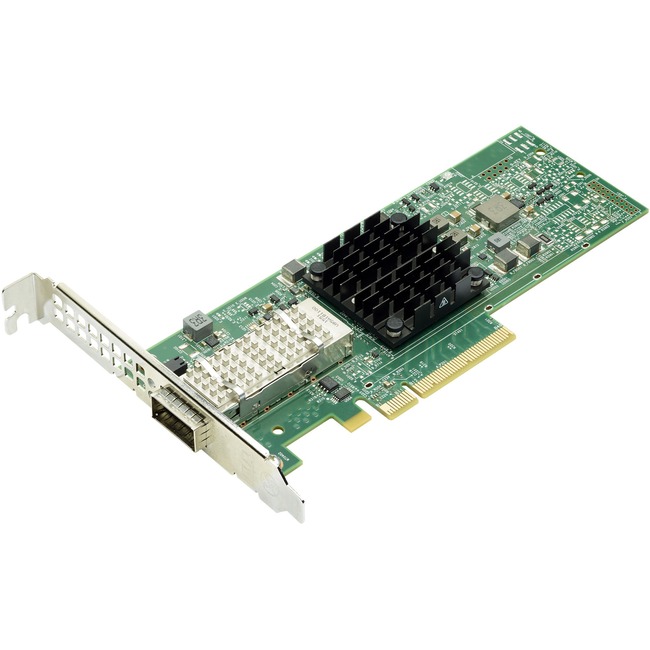

Broadcom P150P - 1 x 50GbE PCIe NIC - PCI Express 3.0 x8 - 1 Port(s) - Optical Fiber - 50GBase-X, 40GBase-X - Plug-in Card
PCI Express 3.0 x8 - 1 Port(s) - Optical Fiber - 50GBase-X, 40GBase-X - Plug-in Card
| Brand Name | Broadcom |
| Device Supported | Server/Switch |
| Expansion Slot Type | QSFP28 |
| Expansion Slot Type | QSFP+ |
| Form factor | Plug-in Card |
| Host interface | PCI Express 3.0 x8 |
| Manufacturer | Broadcom Corporation |
| Manufacturer Part Number | BCM957414A4140C |
| Manufacturer Website Address | http://www.broadcom.com |
| Marketing Information | Based on Broadcom's scalable 10/25/50/100/200G Ethernet controller architecture the NetXtreme®-E Series P150P 1x50G PCIe NIC is designed to build highly scalable feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications including high-performance computing telco machine learning storage disaggregation and data analytics.
The P150P 1x50G PCIe NIC builds upon the success of the widely deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly optimized hardware acceleration engines to enhance network performance and improve server efficiency.
Driven by the growing need for higher server bandwidth and storage capacity to support new and emerging applications enterprises telcos and cloud providers are modernizing their data centers by adopting latest networking technologies such as server virtualization and NVMe-oF™. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks.
With its market-leading hardware acceleration technologies the NetXtreme-E Series P150P 1x50G PCIe NIC addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow™ increase VM density up to 50 percent freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve VXLAN and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE SDN and NFV to facilitate the management of data networks and to enable service provider solutions. |
| Media Type Supported | Optical Fiber |
| Network Technology | 50GBase-X |
| Network Technology | 40GBase-X |
| Product Family | NetXtreme E |
| Product Line | NetXtreme |
| Product Model | P150P |
| Product Name | P150P - 1 x 50GbE PCIe NIC |
| Product Series | E |
| Product Type | 50Gigabit Ethernet Card |
| Total Number of Ports | 1 |
| UPC Alternates | 650861000116 |
