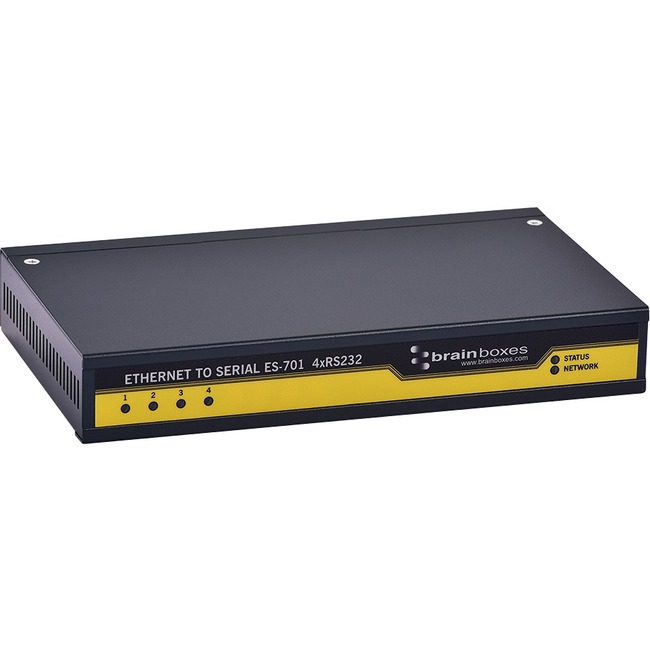

Brainboxes 4 Port RS232 Ethernet to Serial Adapter - Wall-mountable, DIN Rail Mountable - TAA Compliant
Wall-mountable, DIN Rail Mountable - TAA Compliant
| Number of Serial Ports | 4 |
| Brand Name | Brainboxes |
| Country of origin | United Kingdom |
| Form factor | DIN Rail Mountable |
| Form factor | Wall-mountable |
| Height | 1.3" |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | ES-701 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Marketing Information | Ethernet to Serial device server providing access to four RS232 serial port. Data transfer rates up to 1000000 baud rates (1 MegaBaud) coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9600 115200 230000 921600 or user definable non standard values. Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API this will differ on other OSs. |
| Platform Supported | PC |
| Product Name | 4 Port RS232 Ethernet to Serial Adapter |
| Product Type | Multiport Serial Adapter |
| TAA Compliant | Yes |
| Thickness | 5.2" |
| UPC Alternates | 837324009965 991433895878 |
| Weight (Approximate) | 1.49 lb |
| Width | 8.5" |
