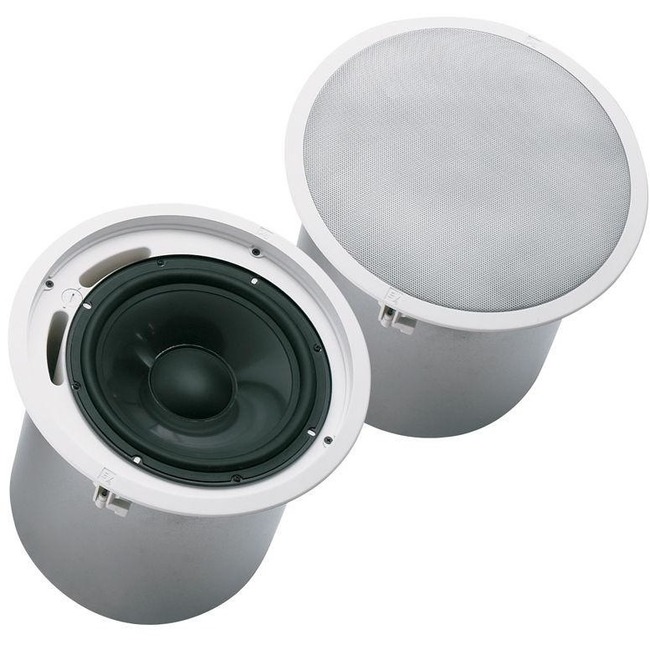

Electro-Voice EVID C10.1 Indoor Ceiling Mountable Woofer - 100 W RMS

New

Electro-Voice EVID C10.1 Indoor Ceiling Mountable Woofer - 100 W RMS - 400 W (PMPO) - 10" - 45 Hz to 150 Hz - 8 Ohm

0 Review(s) Item: EVIDC101 | By: Electro-Voice | 0 In Stock

Sorry This Product is Currently not Available to Buy.

10" High-Excursion Transducer for extended LF
Low Pass Network with Overload Protection
Integrated low loss matching transformer allows for either 70v/100v or 8-ohm operation
Integrated ported enclosure for extended bass response
UL and CE listed

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Electro-Voice EVID C10.1 Indoor Ceiling Mountable Woofer - 100 W RMS - 400 W (PMPO) - 10" - 45 Hz to 150 Hz - 8 Ohm
400 W (PMPO) - 10" - 45 Hz to 150 Hz - 8 Ohm

Product Specifications

RMS Output Power	100 W
Speaker Installation	Indoor
Woofer Driver Size	10"
Brand Name	Electro-Voice
Country of origin	China
Diameter	12.6"
Form factor	Ceiling Mountable
Height	11.9"
Impedance	8 Ohm
Manufacturer	The Bosch Group
Manufacturer Part Number	EVIDC101
Manufacturer Website Address	http://www.bosch.com

Marketing Information	The Electro-Voice EVID C10.1 loudspeaker system is a complete low frequency ceiling subwoofer package. The EVID C10.1 is designed to augment the low frequency response of any EVID ceiling speaker. The package consists of a bezel assembly grille rear enclosure 10-inch loudspeaker and internal linematching transformer. The EVID C10.1 loudspeaker utilizes a 2nd order crossover network to provide the correct band-pass frequency response for use with any EVID Ceiling loud speaker. The C10.1 utilizes a transformer that offers a selection of 7.5 (70-V only) 15 30 or 60 watts delivered to the loudspeaker system using either 70-V or 100-V lines or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semigloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from zinc-plated heavy gauge steel. The rear enclosure with fiberglass damping material provides an optimum internal volume for extended low-frequency performance. A rear cover with provisions for a junction box fitting provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides full-range pass through to additional speakers. A tile bridge is included for safe suspension of the C10.1 ceiling systems in a drop ceiling that uses mineral wool or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion high-efficiency high-maximum output ease of installation and wide-range reproduction of music. Architects' & Engineers' Specifications: The EVID C10.1 loudspeaker system shall be comprised of a UL 94V-0 fire rated ABS baffle/bezel assembly zinc plated steel rear enclosure powder coated grille with safety tether transformer with 8 ohm bypass and 10-inch polypropylene low frequency transducer. The loudspeaker shall meet the following criteria: power rating shall be 100 watts of EIA RS-426A continuous pink noise (6 dB crest factor). Frequency response 45 Hz to 180 Hz. Pressure sensitivity 94 dB SPL at 1meter (3.3 feet) on axis with one watt of pink noise (ref. 20µPa). Minimum impedance 6.0 ohms. The loudspeaker shall be 320 mm (12.6 in.) in diameter and 303 mm (11.9 in.) deep. Weight shall be 7.0 kg. (15.5 lb). The subwoofer ceiling loudspeaker shall be the Electro-Voice ® model EVID C10.1.
Maximum Frequency Response	150 Hz
Minimum Frequency Response	45 Hz
Package Contents	EVID C10.1 Ceiling Subwoofer Sys Pair 4 xTile Rails 2 x C-ring Supports 2 x Grilles 1 x Owner's Manual 4 x Support Ring Screws 2 x Terminal Connectors 1 x Service Center Card 1 x Cutout Template 2 x Paint Shields
Packaged Quantity	2
PMPO Output Power	400 W
Product color	White
Product Line	EVID
Product Model	C10.1
Product Name	EVID C10.1 Ceiling Subwoofer Sys Pair
Product Type	Woofer
UPC Alternates	800549416177
Weight (Approximate)	15.50 lb

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.

Sorry this product does not have any reviews at this time.
