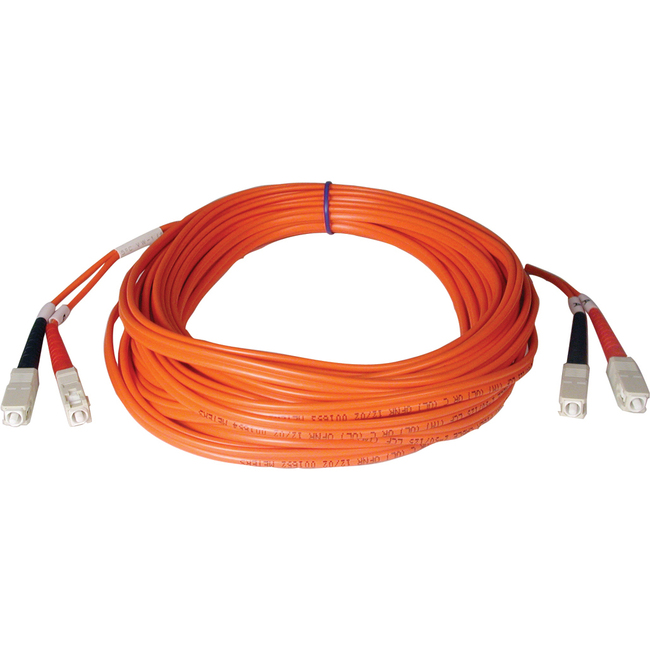

Tripp Lite 5M Duplex Multimode 50/125 Fiber Optic Patch Cable SC/SC 16' 16ft 5 Meter

Name: Tripp Lite 5M Duplex Multimode 50/125 Fiber Optic Patch Cable SC/SC 16' 16ft 5 Meter
Brand: Tripp Lite by Eaton
SKU: C18288
Price: 18.28 USD

New

Tripp Lite 5M Duplex Multimode 50/125 Fiber Optic Patch Cable SC/SC 16' 16ft 5 Meter - SC Male - SC Male - 16.4ft - Yellow

0 Review(s) Item: N506-05M | By: Tripp Lite | 0 In Stock

Sorry This Product is Currently not Available to Buy.

Premium PVC 50/125 multimode patch cables
Attenuation loss meets or exceeds the latest industry standards
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Tripp Lite 5M Duplex Multimode 50/125 Fiber Optic Patch Cable SC/SC 16' 16ft 5 Meter - SC Male - SC Male - 16.4ft - Yellow
SC Male - SC Male - 16.4ft - Yellow

Product Specifications

Connector on First End Details	2 x SC Network - Male
Connector on First End Details	2 x SC Network - Male
Connector Type on First End	SC Network - Male
Connector Type on First End	SC Network - Male
Additional Information	Number of fibers: 2 Fiber type: all glass graded index Core diameter: two 50+/-3 microns CLAD diameter: 125+/-2 microns Primary coating diameter: 245+/-15 microns Secondary coating diameter: 900+/-50 microns Attenuation @850NM: 3.5DB/KM maximum @1300NM: 1.0DB/KM maximum Bandwidth @850NM: 220 MHz-KM minimum @1300NM: 600 MHz-KM minimum Numeric apeture: .275 nominal Proof test level: 100000 PSI Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze
Additional Information	Number of fibers: 2 Fiber type: all glass graded index Core diameter: two 50+/-3 microns CLAD diameter: 125+/-2 microns Primary coating diameter: 245+/-15 microns Secondary coating diameter: 900+/-50 microns Attenuation @850NM: 3.5DB/KM maximum @1300NM: 1.0DB/KM maximum Bandwidth @850NM: 220 MHz-KM minimum @1300NM: 600 MHz-KM minimum Numeric apeture: .275 nominal Proof test level: 100000 PSI Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze
Additional Information	Number of fibers: 2 Fiber type: all glass graded index Core diameter: two 50+/-3 microns CLAD diameter: 125+/-2 microns Primary coating diameter: 245+/-15 microns Secondary coating diameter: 900+/-50 microns Attenuation @850NM: 3.5DB/KM maximum @1300NM: 1.0DB/KM maximum Bandwidth @850NM: 220 MHz-KM minimum @1300NM: 600 MHz-KM minimum Numeric apeture: .275 nominal Proof test level: 100000 PSI Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze
Brand Name	Tripp Lite
Brand Name	Tripp Lite
Brand Name	Tripp Lite
Cable Characteristic	Patch Cable
Cable Characteristic	Patch Cable
Cable Characteristic	Patch Cable
Cable length	16.40 ft
Cable length	16.40 ft
Cable length	16.40 ft
Cable type	Fiber Optic
Cable type	Fiber Optic
Cable type	Fiber Optic
Certifications & Standards	FDDI OFNR
Certifications & Standards	FDDI OFNR
Certifications & Standards	FDDI OFNR
Color	Yellow
Color	Yellow
Color	Yellow
Connector on First End	2 x SC Male
Connector on First End	SC Male
Connector on First End	2 x SC Male
Connector on First End	2 x SC Male
Connector on First End	SC Male
Connector on First End	SC Male
Core/Cladding Diameter	50/125 µm
Core/Cladding Diameter	50/125 µm
Core/Cladding Diameter	50/125 µm
Country of origin	China

Country of origin	China
Country of origin	China
Jacket Type	Plenum
Jacket Type	Plenum
Jacket Type	Plenum
Limited Warranty	Lifetime
Limited Warranty	Lifetime
Limited Warranty	Lifetime
Manufacturer	Tripp Lite by Eaton
Manufacturer	Tripp Lite by Eaton
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	N506-05M
Manufacturer Part Number	N50605M
Manufacturer Part Number	N50605M
Manufacturer Part Number	N506-05M
Manufacturer Part Number	N506-05M
Manufacturer Website Address	http://www.tripplite.com
Manufacturer Website Address	http://www.tripplite.com
Manufacturer Website Address	http://www.tripplite.com
Marketing Information	Tripp Lite's 5-meter multimode duplex Fibre Channel SC/SC patch cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on each end a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1 2 3 10 15 30 and 50 meter lengths. Search "N506-" to bring up all lengths. Also search "N516-" for SC-LC cables and "N520-" for LC-LC cables. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
Marketing Information	Tripp Lite's 5-meter multimode duplex Fibre Channel SC/SC patch cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on each end a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1 2 3 10 15 30 and 50 meter lengths. Search "N506-" to bring up all lengths. Also search "N516-" for SC-LC cables and "N520-" for LC-LC cables. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
Marketing Information	Tripp Lite's 5-meter multimode duplex Fibre Channel SC/SC patch cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on each end a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1 2 3 10 15 30 and 50 meter lengths. Search "N506-" to bring up all lengths. Also search "N516-" for SC-LC cables and "N520-" for LC-LC cables. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
Package Contents	Fibre Channel Patch Cable 5M duplex MMF cable SC/SC 50/125 fiber
Package Contents	Fibre Channel Patch Cable 5M duplex MMF cable SC/SC 50/125 fiber
Package Contents	Fibre Channel Patch Cable 5M duplex MMF cable SC/SC 50/125 fiber
Product color	Yellow
Product color	Yellow
Product Name	Fibre Channel Patch Cable
Product Name	Fibre Channel Patch Cable
Product Name	Fibre Channel Patch Cable
Product Type	Network Cable
Product Type	Network Cable
Product Type	Network Cable
UPC Alternates	037332118936
UPC Alternates	037332118936
UPC Alternates	037332118936
