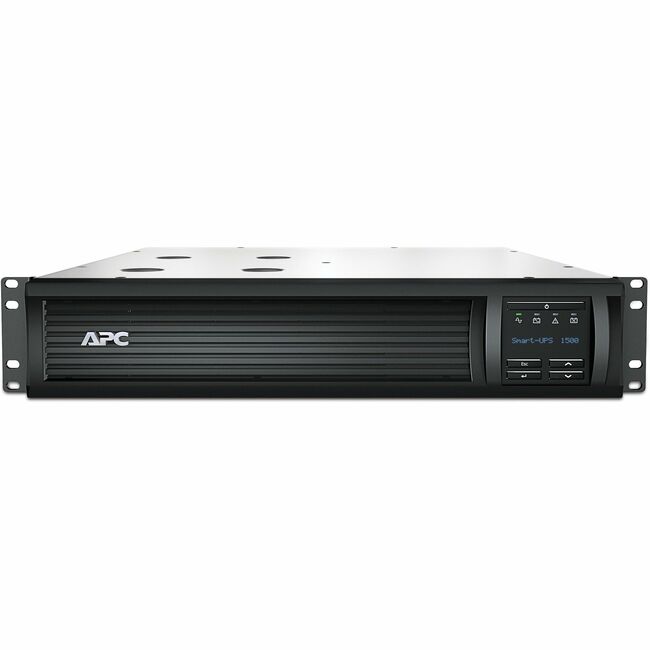

APC by Schneider Electric Smart-UPS 1.5kVA 120V RM SHIPBOARD - AVR - 3 Hour Recharge - 7 Minute Stand-by - 120 V Input - 120 V AC Output - Serial Port - 6 x NEMA 5-15R - TAA Compliant
AVR - 3 Hour Recharge - 7 Minute Stand-by - 120 V Input - 120 V AC Output - Serial Port - 6 x NEMA 5-15R - TAA Compliant
| Battery Energy | 1555.2 kJ |
| Load Capacity (VA) | 1440 VA |
| Load Capacity (W) | 1000 W |
| Number of Battery & Surge Outlets | 6 |
| Output Frequency | 60 Hz |
| Receptacle Detail | 6 x NEMA 5-15R |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | -4°F (-20°C) - 131°F (55°C) |
| Waveform Type | Sine Wave |
| Alarm | Changing Utility Power |
| Backup/Run Time (Full Load) | 7 Minute |
| Backup/Run Time (Half Load) | 26 Minute |
| Battery Chemistry | Lead Acid |
| Battery life | 5 Year |
| Brand Name | APC by Schneider Electric |
| Depth | 18.8" |
| Form factor | Rack-mountable |
| Height | 3.4" |
| Input voltage | 120 V |
| Input Voltage Range | 82 V AC - 144 V AC |
| Load Capacity | 1440 VA/1000 W |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT1500RMX93 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Marketing Information | Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level standard and extended run) there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers security and communication systems through outages that could last hours. Adaptability | Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation. Availability | Power conditioning - Protects connected loads from surges spikes lightning and other power disturbances. Intelligent battery management - Maximizes battery performance life and reliability through intelligent precision charging.
Boost and Trim Automatic Voltage Regulation (AVR) - Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Disconnected battery notification - Warns when a battery is not available to provide backup power.
Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature. Manageability | Serial connectivity - Provides management of the UPS via a serial port. LED status indicators - Quickly understand unit and power status with visual indicators.
Audible alarms - Provides notification of changing utility power and UPS conditions.
Network manageable - Provides remote power management of the UPS over the network.
USB connectivity - Provides management of the UPS via a USB port (not available on all models). Safety | Safety-agency approved - Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. |
| Maximum Operating Temperature | 104°F (40°C) |
| Output voltage | 120 V AC |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 1.5kVA 120V RM SHIPBOARD |
| Product Type | Line-interactive UPS |
| Receptacle Type | NEMA 5-15R |
| Serial Port | Yes |
| Status Indicators | LED Display: - Load bar-graphs
- Battery bar-graphs
- On line
- On battery
- Replace battery
- Overload indicators
|
| Thermal Dissipation | 74.73 W |
| Transfer Time | 10 ms |
| Typical Battery Recharge Time | 3 Hour |
| UPC Alternates | 731304433651 |
| Weight (Approximate) | 58.42 lb |
| Width | 17" |
