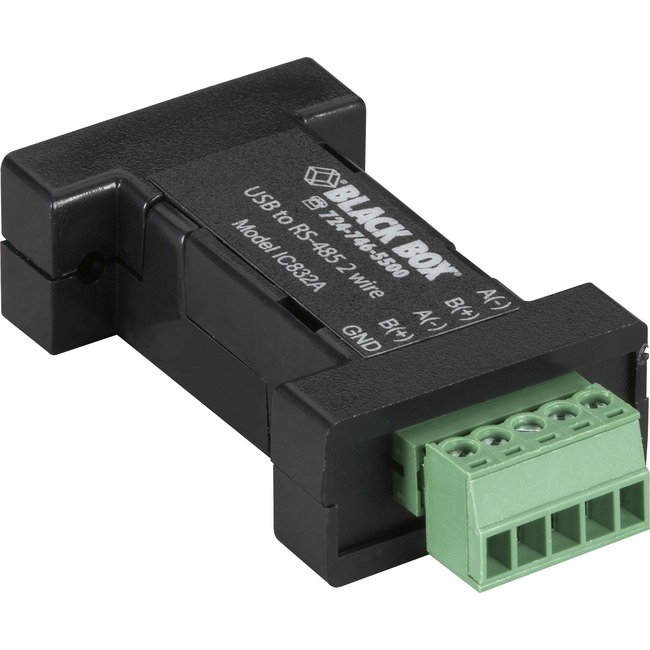

Black Box DB9 Mini Converter (USB to Serial), USB/RS-485 (2-wire, Terminal Block) - 1 x Type B USB 2.0 USB Female - 1 x Terminal Block - TAA Compliant
1 x Type B USB 2.0 USB Female - 1 x Terminal Block - TAA Compliant
| Connector on First End Details | 1 x Type B USB 2.0 USB Female |
| Connector on Second End Details | 1 x Terminal Block |
| Connector Type on First End | USB 2.0 Type B - Female |
| Connector Type on Second End | Terminal Block |
| Adapter Type | Terminal Block/USB |
| Brand Name | Black Box |
| Certifications & Standards | CE |
| Country of origin | United States |
| Depth | 1.3" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 0.6" |
| Limited Warranty | 5 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | IC832A |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | - Powered from the USB interface.
- Includes 3-ft. (0.9-m) USB cable.
USB is the connectivity standard for today's PCs replacing familiar serial ports. However many commercial and industrial devices still use RS-232 RS-422 or RS-485 interfaces. To connect these devices to modern PCs you need simple and reliable converters.
The Black Box Mini USB-to-Serial Converter offers USB-to-serial conversion in a space saving package. Simply plug the converter into an available USB port on your computer or USB hub and install the drivers supplied on CD ROM. The serial device will show up as an additional COM port in the Windows Device Manager.
RS-485 (two- and four-wire)
- Support TDA TDB RDA RDB and GND.
- Baud rates up to 921 Kbps.
- Use on RS-485 2-wire or RS-422/485 4-wire networks.
- Support Send Data Control (SDC).
RS-232
- Full handshake support (TD RD RTS CTS DTR DSR DCD RI GND).
- Baud rates up to 460 Kbps.
|
| Package Contents | - DB9 Mini Converter (USB to Serial) USB/RS-485 (2-wire Terminal Block)
- 1m USB Cable
|
| Product Name | DB9 Mini Converter (USB to Serial) USB/RS-485 (2-wire Terminal Block) |
| Product Type | Data Transfer Adapter |
| UPC Alternates | 007540365682 700604198287 818289542582 818290007636 822088067085 993245706373 997248975606 |
| Width | 2.3" |
