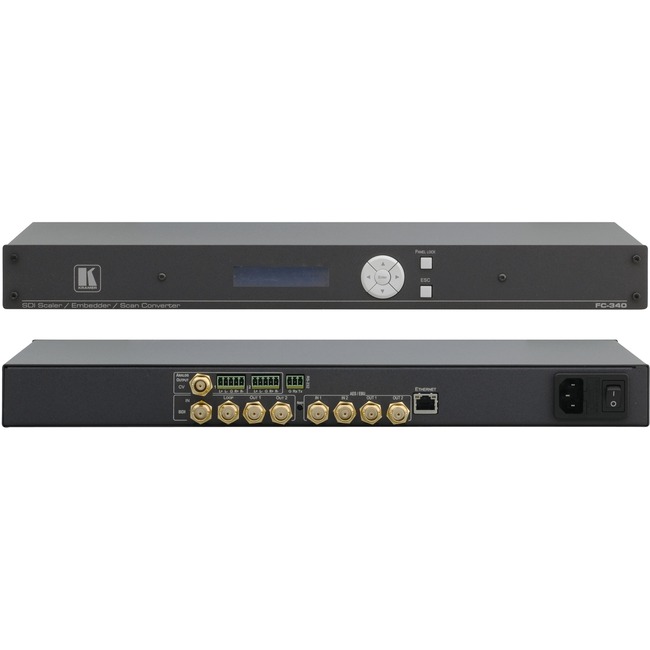

Kramer FC-340 3G HD-SDI Scaler/Embedder/Scan Converter - Functions: Video Scaling, Audio Embedding, Audio De-embedding, Video Conversion - 1920 x 1080 - NTSC, PAL - SDI - Network (RJ-45) - Audio Line In - Audio Line Out - Rack-mountable
Functions: Video Scaling, Audio Embedding, Audio De-embedding, Video Conversion - 1920 x 1080 - NTSC, PAL - SDI - Network (RJ-45) - Audio Line In - Audio Line Out - Rack-mountable
| Analog Signal | Yes |
| Composite Video Connector Type | BNC |
| Number of Composite Video Outputs | 1 |
| Number of SDI Outputs | 3 |
| Brand Name | Kramer |
| Depth | 7.2" |
| Form factor | Rack-mountable |
| Functions | Audio De-embedding |
| Functions | Video Scaling |
| Functions | Video Conversion |
| Functions | Audio Embedding |
| Height | 1.8" |
| Limited Warranty | 7 Year |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | FC-340 |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | The FC-340 is a broadcast-quality video scaler audio embedder/de-embedder and scan converter for digital video signals up to 3G HD-SDI. The unit inputs an SDI signal and simultaneously outputs SDI and composite video signals while the audio embedded in the SDI input signal is output to both AES/3id and balanced audio outputs. |
| Maximum Data Transfer Rate | 3 Gbit/s |
| Maximum resolution | 1920 x 1080 |
| Package Contents | - FC-340 3G HD-SDI Scaler/Embedder/Scan Converter
- Rack Mounting Ears
|
| Product Name | FC-340 3G HD?SDI Scaler/Embedder/Scan Converter |
| Product Type | Video Scaler |
| UPC Alternates | 779184281092 |
| Video Signal Format | PAL |
| Video Signal Format | NTSC |
| Weight (Approximate) | 3.53 lb |
| Width | 19" |
