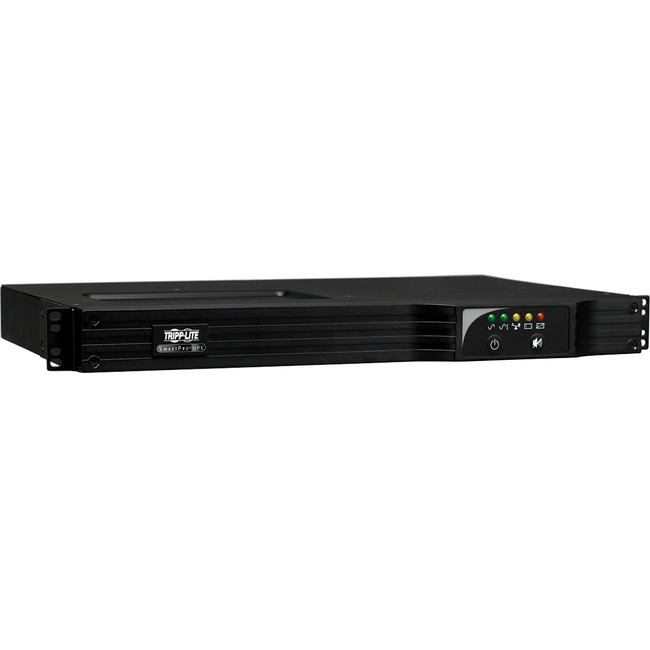

Tripp Lite UPS Smart 500VA 300W Rackmount AVR 120V USB DB9 SNMP 1URM TAA - 1U Rack/Tower - 3.20 Minute Stand-by - 120 V AC Input - 7 x NEMA 5-15R - TAA Compliant
1U Rack/Tower - 3.20 Minute Stand-by - 120 V AC Input - 7 x NEMA 5-15R - TAA Compliant
| Load Capacity (VA) | 500 VA |
| Load Capacity (W) | 300 W |
| Receptacle Detail | 7 x NEMA 5-15R |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Waveform Type | Sine Wave |
| Alarm | Low Battery |
| Alarm | Power Failure |
| Alarm | Overload |
| Backup/Run Time (Full Load) | 3.20 Minute |
| Backup/Run Time (Half Load) | 14.60 Minute |
| Battery Management | Field-replaceable |
| Brand Name | Tripp Lite |
| Certifications & Standards | - TAA
- GSA
- UL1778 (USA)
- CSA (Canada)
- NOM (Mexico)
- FCC Part 15 Category B (EMI)
|
| Cord Length | 10 ft |
| Country of origin | Taiwan |
| Dataline Protection | RJ-45 |
| Dataline Protection | RJ-11 |
| Depth | 11.8" |
| Environmental Certification | RoHS |
| Form factor | Rack/Tower |
| Height | 1.7" |
| Hot Swappable | Yes |
| Input current | 5.60 A |
| Input voltage | 120 V AC |
| Limited Warranty | 2 Year |
| Load Capacity | 500 VA/300 W |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SMART500RT1UTAA |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite's SMART500RT1UTAA intelligent line-interactive rack/tower uninterruptible power supply prevents data loss downtime and equipment damage due to power outages voltage fluctuations and transient surges. Requires only one rack space (1U) in a 2 or 4 post rack with included accessories for upright tower placement. Large internal batteries offer 14.6 minutes half load runtime and 3.2 minutes at full load. Maintains regulated 120V nominal output without using battery power during brownouts as low as 90V. 500VA/300 watt power handling capability is compatible with networking telecom and other sensitive electronic applications. Includes 6 UPS supported outlets with a single outlet load bank that can be individually controlled via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Includes 1 surge-only outlet for peripherals not requiring battery backup.
Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency situation. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive all-black color scheme. |
| Maximum Operating Temperature | 104°F (40°C) |
| Package Contents | - SmartPro SMART500RT1UTAA 500VA Tower/Rack Mountable UPS
- Mounting Hardware
- Cabling for USB & DB9 Monitoring and EPO Switching
- Instruction Manual
|
| Plug/Connector Type | NEMA 5-15P |
| Product Line | SmartPro |
| Product Name | SmartPro SMART500RT1UTAA 500VA Tower/Rack Mountable UPS |
| Product Type | Line-interactive UPS |
| Protection Type | Line Noise |
| Protection Type | EMI / RFI |
| Protection Type | Transient |
| Protection Type | Surge |
| Protection Type | Brownout |
| Rack Height | 1U |
| Receptacle Type | NEMA 5-15R |
| Software Included | PowerAlert unattended shutdown and UPS/Power monitoring |
| Status Indicators | LED |
| Surge energy rating | 567 J |
| UPC Alternates | 037332183453 037332204134 |
| Weight (Approximate) | 17.60 lb |
| Width | 17.5" |
