Panorama Antennas MAKO LGM Antenna - 617 MHz to 960 MHz, 1710 MHz to 3800 MHz, 4900 MHz to 960 MHz, 4.9 GHz to 7.2 GHz, 1562 MHz to 1612 MHz - 26 dB - Wireless Data Network, Cellular Network, GPS - Black - Panel Mount - SMA, FME Connector
617 MHz to 960 MHz, 1710 MHz to 3800 MHz, 4900 MHz to 960 MHz, 4.9 GHz to 7.2 GHz, 1562 MHz to 1612 MHz - 26 dB - Wireless Data Network, Cellular Network, GPS - Black - Panel Mount - SMA, FME Connector
| Antenna Gain | 26 dB |
| Operating Frequency Range | 4900 MHz to 960 MHz |
| Operating Frequency Range | 4.9 GHz to 7.2 GHz |
| Operating Frequency Range | 617 MHz to 960 MHz |
| Operating Frequency Range | 1710 MHz to 3800 MHz |
| Operating Frequency Range | 1562 MHz to 1612 MHz |
| Antenna Type | Dome |
| Application/Usage | GPS |
| Application/Usage | Cellular Network |
| Application/Usage | Wireless Data Network |
| Brand Name | Panorama Antennas |
| Connector Type | FME |
| Connector Type | SMA |
| Diameter | 7.09" |
| Form factor | Panel Mount |
| Height | 3.15" |
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | LGMDM4B6602458 |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Marketing Information | - Low Profile 4x4 4G/5G MiMo
- Up to 6x6 MiMo Dual Band WiFi
- Optional GPS/GNSS Active Antenna 26dB LNA
The L[G]M[X]M4[X]-6-60[-24-58] range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6x6 MiMo WiFi 2.4/5.0GHz or 4x4 WiFi 6E 2.4/4.9-7.2GHz.
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.
The LGM variants have an integrated GPS/GNSS module supporting GPS Glonass Galileo QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.

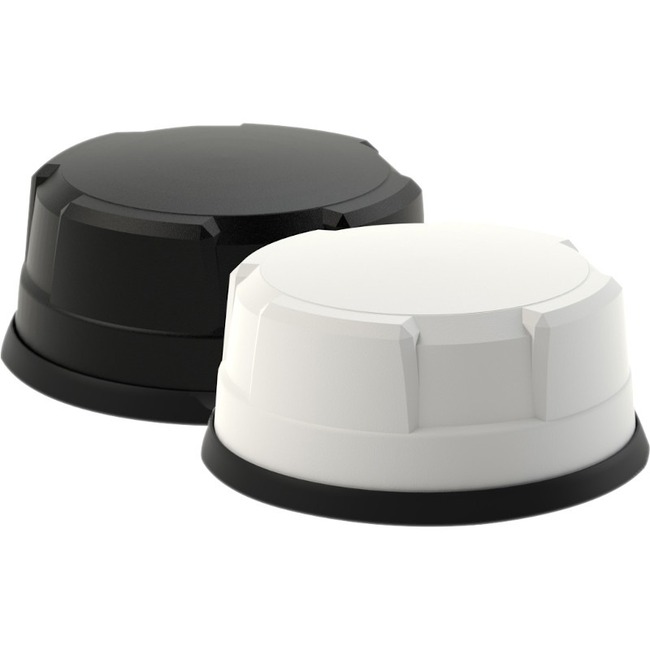

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection. |
| Power source | DC Power |
| Product color | Black |
| Product Family | MAKO LGM |
| Product Line | MAKO |
| Product Name | MAKO LGM Antenna |
| Product Series | LGM |
| Product Type | Antenna |
