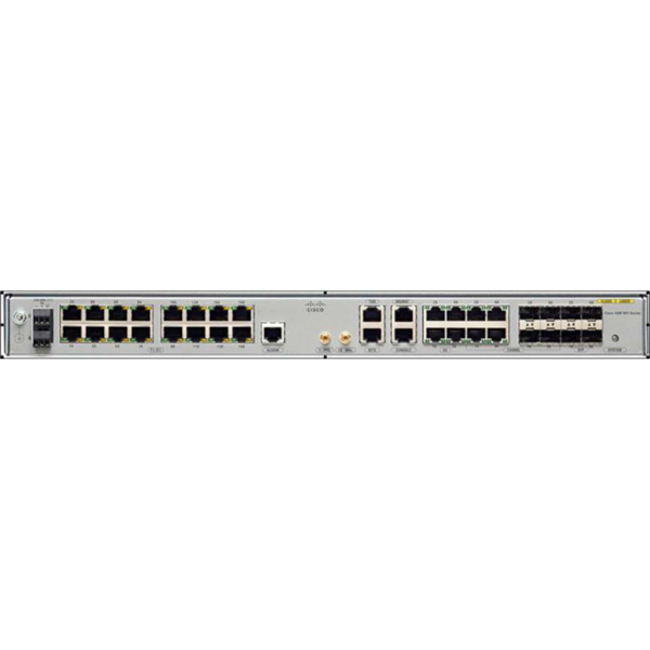

Cisco ASR 901 10G Router - 8 Ports - 8 RJ-45 Port(s) - Management Port - 10 - 512 MB - Gigabit Ethernet - 1U - Rack-mountable - 90 Day
8 Ports - 8 RJ-45 Port(s) - Management Port - 10 - 512 MB - Gigabit Ethernet - 1U - Rack-mountable - 90 Day
| Compatible Rack Unit | 1U |
| Number of Total Expansion Slots | 10 |
| Brand Name | Cisco |
| Certifications & Standards | Compliant Standards:
- IEEE 802.1D
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.3ad (LACP)
- IEEE 802.1s
- IEEE 802.1ad
- IEEE 802.3ah
- IEEE 802.1ag
Safety:
- UL/CSA 60950-1
- IEC/EN 60950-1
- AS/NZS 60950.1
EMC Emissions:
- FCC 47CFR15 Class A
- EN55022 Class A
- CISPR 22 Class A
- AS/NZS CISPR 22 Class A
- ICES 003 Class A
- VCCI Class A
- KN 22 Class A
EMC Immunity:
- EN/IEC61000-4-2 Electrostatic Discharge Immunity - Enclosure
- EN/IEC61000-4-3 Radiated Immunity - Enclosure
- EN/IEC61000-4-4 Electrical Fast Transient Immunity
- EN/IEC61000-4-5 Surge
- EN/IEC61000-4-6 Immunity to Conducted Disturbances
Network Equipment Building Standards (NEBS): ETSI/EN:
- EN 300 386 Telecommunications Network Equipment (EMC)
- EN55022 Information Technology Equipment (Emissions)
- EN55024 Information Technology Equipment (Immunity)
- EN61000-6-1 Generic Immunity Standard
Network Synchronization:
- GR-1244-CORE
- ITU-T G.813
- ITU-T G.703 clause 5
- ITU-T G.703 clause 9
- ITU-T G.8261/Y.1361
- ITU-T G.781
- ITU-T G.8264
- IEEE1588-2008
|
| Depth | 8.3" |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP (mini-GBIC) |
| Expansion Slot Type | SFP+ |
| Flash memory | 128 MB |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Input voltage | 24 V DC |
| Limited Warranty | 90 Day |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | A901-6CZ-F-D |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | The Cisco® ASR 901 Series Aggregation Services Routers are environmentally hardened high-speed low-power-consumption routers optimized for any-generation cell-site Radio Access Network (RAN) backhaul and Ethernet access. By using Cisco ASR 901 routers operators can reduce backhaul operating costs simplify and converge their RAN and Ethernet access networks and enhance their profit opportunities with mobile and premium Ethernet services. RAN cell sites are places of transformation between mobile radio and mobile transport networks. Cost-effective RAN backhaul requires the ability to simultaneously aggregate the transport of traffic from both traditional and new-generation radios across multiple transport options available at the cell site. The Cisco ASR 901 routers are designed to minimize operating costs and optimize this radio-to-transport transformation through scalable time-division multiplexing (TDM) and IP/Ethernet interfaces for any combination of multivendor multigeneration radios and transport networks. |
| Memory Technology | DDR3 SDRAM |
| Network Technology | 10/100/1000Base-T |
| Number of Network (RJ-45) Ports | 8 |
| Product Model | ASR 901-4C-F-D |
| Product Name | ASR 901 10G Router |
| Product Series | ASR 901 |
| Product Type | Router |
| Security features | - RADIUS
- TACACS+
- Secure Shell v.2 (SSH2)
- Layer 3 ACLs
|
| Standard Memory | 512 MB |
| Token Ring Port | No |
| UPC Alternates | 041114839339 882658526978 |
| USB | Yes |
| Weight (Approximate) | 6.80 lb |
| Width | 17.5" |
