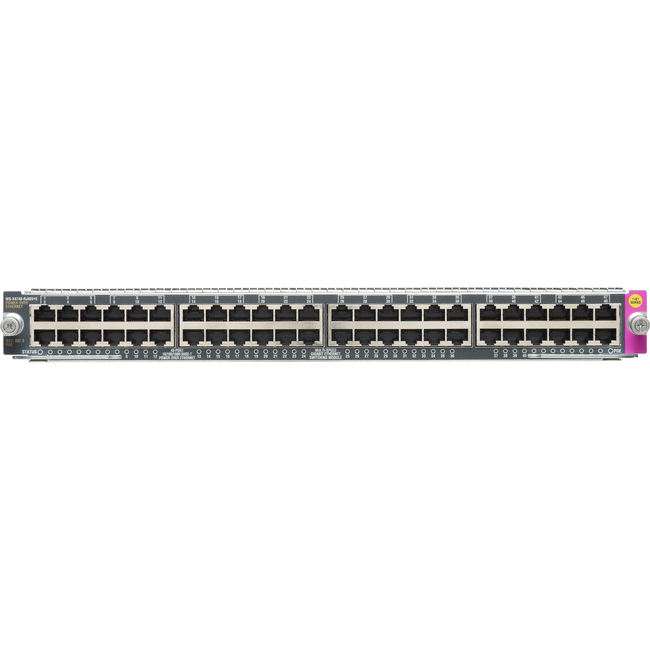

Cisco Service Module - For Data Networking, Optical Network - 48 x RJ-45 10/100/1000Base-T LAN100
For Data Networking, Optical Network - 48 x RJ-45 10/100/1000Base-T LAN100
| Interfaces/Ports Details | 48 x RJ-45 10/100/1000Base-T LAN |
| Application/Usage | Optical Network |
| Application/Usage | Data Networking |
| Brand Name | Cisco |
| Compatibility | - Cisco Catalyst 4507R-E Switch
- Cisco Catalyst 4510R-E Switch
- Supervisor Engine 7-E
|
| Connector Type | RJ-45 |
| Depth | 10.8" |
| Environmental Certification | RoHS-5 |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Height | 1.2" |
| Limited Warranty | Lifetime |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | WS-X4748-RJ45-E |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | The Cisco Catalyst 4500E Series 48-port Gigabit Ethernet line cards provide high-performance 10/100/1000 switching. Two types of E-Series line cards are available based on the per-slot bandwidth: 47xx line cards that drive 48 Gbps per slot and 46xx line cards that drive 24 Gbps per slot. The Cisco Catalyst 4500 48-port 10/100/1000 PoEP E-Series 47xx line card provides standard IEEE 802.3at PoEP support on all 48 ports simultaneously. All series 47xx line cards support standard IEEE 802.1AE encryption and Cisco TrustSec in hardware. The Cisco Catalyst 4500 48-port 10/100/1000 line cards are available in four versions: Data Only PoE PoEP and UPOE. |
| Maximum Data Transfer Rate | 100 |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Product Type | Service Module |
| Total Number of Ports | 48 |
| UPC Alternates | 012303498231 |
| Width | 14.3" |
