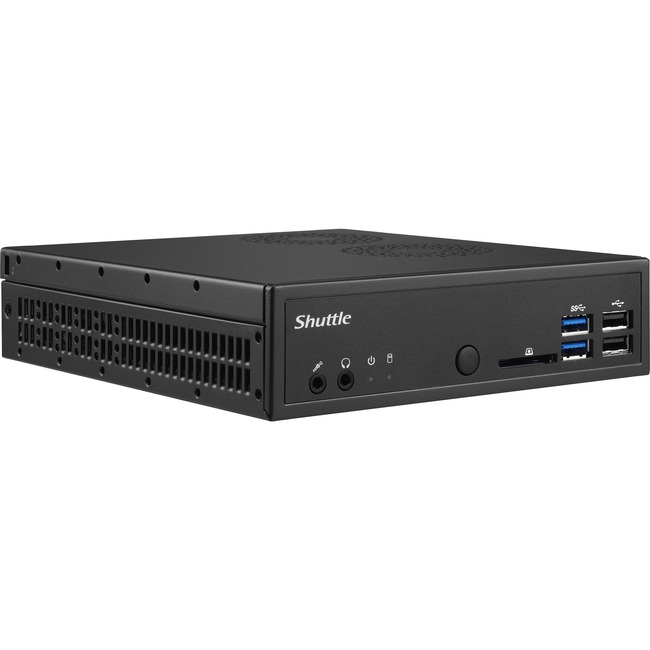

Shuttle XPC DH110 Barebone System - Slim PC - Socket H4 LGA-1151 - Intel H110 Express Chip - 16 GB DDR3L SDRAM DDR3L-1600/PC3-12800 Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600 Controller - Intel HD graphics Graphic(s) - 1 2.5" Bay(s) - 1 SATA Interface(s) - Processor Support (Core i7, Core i3, Core i5, Celeron, Pentium) - Gigabit Ethernet - 4 USB 3.0 Port(s) - 90 W - 3 Year
Intel H110 Express Chip - 16 GB DDR3L SDRAM DDR3L-1600/PC3-12800 Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600 Controller - Intel HD graphics Graphic(s) - 1 2.5" Bay(s) - 1 SATA Interface(s) - Processor Support (Core i7, Core i3, Core i5, Celeron, Pentium) - Gigabit Ethernet - 4 USB 3.0 Port(s) - 90 W - 3 Year
| 64-bit Processing | Yes |
| Chipset | Intel H110 Express |
| Chipset Manufacturer | Intel |
| Chipset Model | H110 Express |
| Graphics Controller Model | HD graphics |
| Maximum Memory Supported | 16 GB |
| Maximum Power Supply Wattage | 90 W |
| Memory Standard | DDR3L-1600/PC3-12800 |
| Number of SATA Interfaces | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i7 |
| Processor Supported | Core i3 |
| Processor Supported | Core i5 |
| Processor Supported | Celeron |
| Processor Supported | Pentium |
| Brand Name | Shuttle |
| Controller Type | Serial ATA/600 |
| Country of origin | China |
| Depth | 7.5" |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Slim PC |
| Height | 1.7" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | Shuttle Inc |
| Manufacturer Part Number | DH110 |
| Manufacturer Website Address | http://www.us.shuttle.com |
| Marketing Information | Drive 4K and Rich Interactive Content with Intel® skylake platform
Focused on 4K vertical markets Shuttle launches a new generation slim PC DH110 equipped with Intel® H110 chipsets support the latest Intel® 6th generation Skylake LGA1151 65W processors. With Intel® built-in HD graphics engine DH110 can support 4K/Ultra HD video playback. With a body thickness of only 43mm and VESA mountable design the DH110 make it easy to fit commercial applications with limited space. Thanks to its robust metal chassis and a wide ambient temperature range from 0 to 50 degree the DH110 runs reliably cool and stable for a long time operation. With built-in USB 2.0 RS232/422/485 and PS/2 I/O ports the DH110 has strong connectivity for peripherals to meet the demands of vertical applications.
Support Intel® 6th Generation Core™ processor
Equipped with new LGA1151 socket the DH110 supports for Intel® sixth-generation (Skylake) Core™ i3/i5/i7 Pentium® and Celeron® 65W processors. The integrated new generation Intel® HD Graphics is significantly increased CPU or GPU performance. Compared to the previous Haswell/Haswell Refresh processor the new processor is saved more power.
Equipped with Intel® 100 series Chipset
The DH110 is equipped with Intel® H110 chipset and supports dual-channel DDR3L 1600 with the maximum memory capacity of up to 32GB (16GBx2). Able to support two Intel® Gigabit LAN interfaces native SATA 6Gbps and USB3.0 high-speed storage interfaces providing superb data transfer speed
Slim design and Easy assembly
The DH110 features a 1.3-liter slim design and body thickness of only 43mm with significantly less cables and no daughter board. This makes for easy assembly enhanced thermal efficiency and system stability due to increased airflow.
Heat pipe cooling technology
The DH110 features Shuttle's exclusive heat pipe cooling module with smart fan design. Smart ventilation keeps the system running quiet and cool for long term operation.
Industrial Solid Capacitors = High Stability
The DH110 uses industrial capacitors in order to meet the environmental operation demands of commercial applications. Its rugged design allows for 24/7 stable operation over long periods of time - even in 50°C environments.
Support 4K Ultra HD
The DH110 provides HDMI and DisplayPort video outputs support 4K high resolution (3840x2160) four times the resolution of Full HD.
Support dual independent displays
The DH110 provides one DisplayPort and one HDMI video outputs to support dual independent screens. Use an adaptor to convert HDMI into DVI interface and DisplayPort into HDMI or DVI interface for diversified signal selection.
Support two M.2 expansion slots
The DH110 is built-in one M.2 2260/2242 with type M and one M.2 2230 type A/E slots to install M.2 SSD and a WiFi card or other compatible devices proving a strong expansion capacity.
Support dual independent displays
The DH110 provides one DisplayPort and one HDMI video outputs to support dual independent screens. Use an adaptor to convert HDMI into DVI interface and DisplayPort into HDMI or DVI interface for diversified signal selection. |
| Memory Technology | DDR3L SDRAM |
| Number of Total Memory Slots | 2 |
| Number of USB 3.0 Ports | 4 |
| Operating System Supported | Windows 8.1 |
| Operating System Supported | Windows 10 |
| Operating System Supported | Linux |
| Operating System Supported | Windows 7 |
| Product Line | XPC |
| Product Name | XPC DH110 Barebone System |
| Product Type | Barebone System |
| Total Number of USB Ports | 6 |
| UPC Alternates | 817215410056 887993000640 887993002118 |
| Width | 6.5" |
