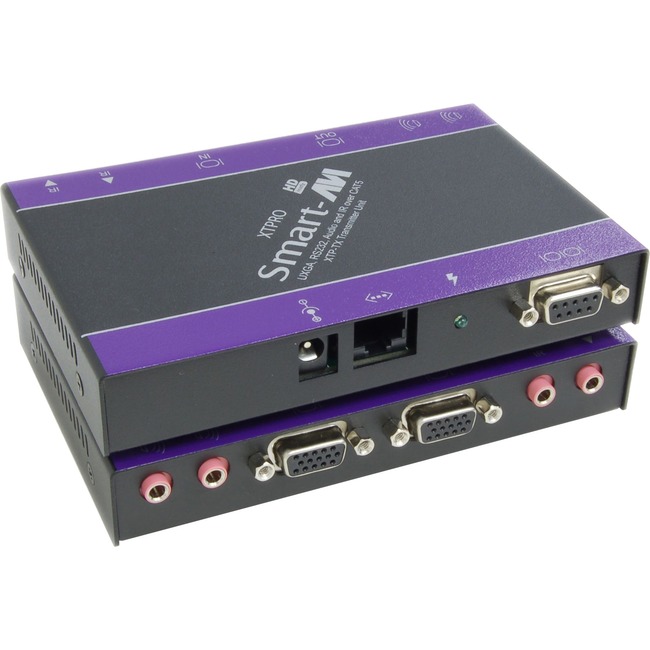

SmartAVI UXGA/Audio/RS-232/IR Point-to-Point CAT5 Extender - 2 Input Device - 2 Output Device - 984.25 ft Range - 2 x Network (RJ-45) - 2 x VGA In - 2 x VGA Out - 1920 x 1200 - Twisted Pair - Category 8 - Wall Mountable
2 Input Device - 2 Output Device - 984.25 ft Range - 2 x Network (RJ-45) - 2 x VGA In - 2 x VGA Out - 1920 x 1200 - Twisted Pair - Category 8 - Wall Mountable
| Network (RJ-45) | Yes |
| Transmitter Weight (Approximate) | 4.23 oz |
| Brand Name | SmartAVI |
| Connectivity technology | Wired |
| Country of origin | United States |
| Form factor | Wall Mountable |
| Limited Warranty | 1 Year |
| Manufacturer | Smart Audio Video Innovation |
| Manufacturer Part Number | XTPROS |
| Manufacturer Website Address | http://www.smartavi.com |
| Marketing Information | SmartAVI's XTPro is a high resolution UXGA and stereo audio extender system (transmitter and receiver) designed to broadcast desktop video stereo audio signals IR and RS-232 up to 1000 feet over unshielded twisted pair (UTP) cabling. Powerful Cost-Effective Extension Solution The XTPro excels at delivering 1080p (1920x1080) full HD video and stereo audio signals to output devices up to 1000 feet away from a signal source. Better yet the XTPro is optimized for IR and RS-232 signal extension as well so command of distant devices is never out of reach. Cost-conscious users can breathe easy: XTPro is a great value with economical CAT5 cabling perfect for taking stress off AV signals and wallets alike! A Perfect Fit in Any AV Environment The XTPro excels in a variety of AV environments like airports retail stores schools hospitals office buildings entertainment venues and more!
Features - Dual-screen support
- Uses easy to install inexpensive CAT-5/5e/6/7/8
- Each Output reaches up to 1000 feet (300 m)
- Supports high resolutions up to 1920x1200
- HDTV compatible (720p 1080i 1080p)
- 300 MHz Bandwidth.
- Sends high-resolution VGA stereo audio signals RS232 or IR from one source to 2 locations
- Compatible with VGA XGA Sun MAC and SGI
- Sync Format / Polarity Preservation.
- Compatible with Line Level Stereo Audio Signals
- High ground loop immunity
- Built-in power surge and transient protection
- Designated trimmer in the remote unit to compensate for cable length./li>
- Compact Metal Case Enclosure
- External power supply
- RS-232 communication support to single or multiple displays
- IR command to single or multiple displays
|
| Maximum Operating Distance | 984.25 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents | - 1 x Transmitter
- 1 x Receiver
- CCVGAMM06 Cable
- 2 x PS5VD2A Power Supply
- 1 x Quick Start and Installation Guide
|
| Product Name | UXGA/Audio/RS-232/IR Point-to-Point CAT5 Extender |
| Product Type | Video Extender Transmitter/Receiver |
| Twisted Pair Cable Standard | Category 8 |
| UPC Alternates | 813280011266 813280024068 |
