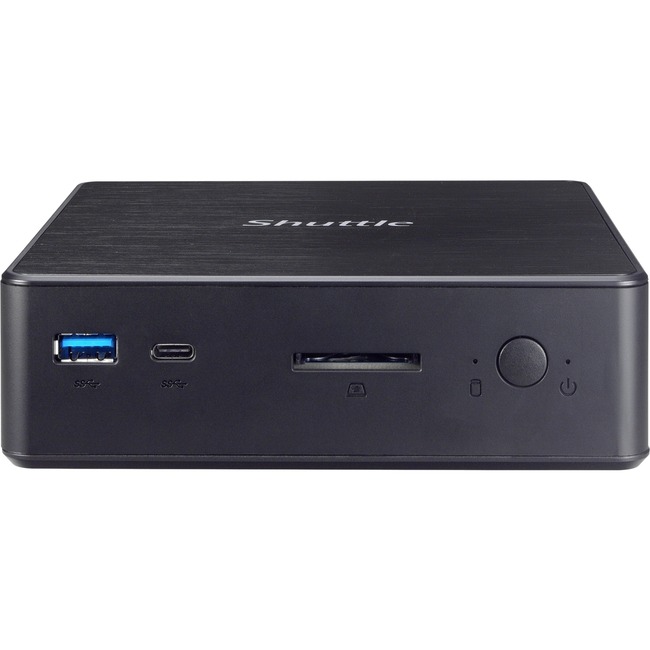

Shuttle XPC nano NC02U7 Barebone System - Mini PC - Intel Core i7 6th Gen i7-6500U - DDR3L SDRAM Maximum RAM Support - Intel HD Graphics 520 Graphic(s) - HDMI - DisplayPort - 3 Year
DDR3L SDRAM Maximum RAM Support - Intel HD Graphics 520 Graphic(s) - HDMI - DisplayPort - 3 Year
| Graphics Controller Model | HD Graphics 520 |
| Graphics Memory Accessibility | Shared |
| Number of USB 3.1 Ports | 1 |
| Processor Generation | 6th Gen |
| Brand Name | Shuttle |
| Country of origin | China |
| Features | Security Slot |
| Form factor | Mini PC |
| Height | 1.7" |
| Limited Warranty | 3 Year |
| Manufacturer | Shuttle Inc |
| Manufacturer Part Number | NC02U7 |
| Manufacturer Website Address | http://www.us.shuttle.com |
| Marketing Information | A palm-sized 4K portable PC-NC02U series
The XPC nano is Shuttle's smallest product lines with only palm size. Shuttle's new NC02U series is next generation of NC01U series with support Intel® Skylake-U platform technology. This series comes with a selection of processors ranging from Celeron to the Core i7 and supports up to 32 GB of DDR3L 1600 low-voltage memory. With integrated HD graphics the series is capable of playing 4K/Ultra HD content. Compared to NC01U series NC02U series uses new mechanism design for easy installation of memory module and storage. This case can accommodate one 2.5" HDD (up to 15mm) to provide its more flexible storage capacity without volume limited. This series offers plenty of I/O ports in spite of its small size: HDMI DisplayPort USB3.0 (Type A Type C) USB2.0 RS232 M.2 slot and Intel® Gigabit Ethernet as well as built-in 802.11 b/g/n wireless network. The NC02U series is VESA mount ready to make it easy to blend in anywhere: home office storefront and more. |
| Memory Technology | DDR3L SDRAM |
| Number of USB 2.0 Ports | 2 |
| Processor Manufacturer | Intel |
| Processor model | i7-6500U |
| Processor Type | Core i7 |
| Product Line | XPC nano |
| Product Name | XPC nano NC02U7 Barebone System |
| Product Type | Barebone System |
| Total Number of USB Ports | 3 |
| UPC Alternates | 887993000831 887993000992 |
| Weight (Approximate) | 14.11 oz |
| Width | 5.6" |
| Wireless LAN | Yes |
