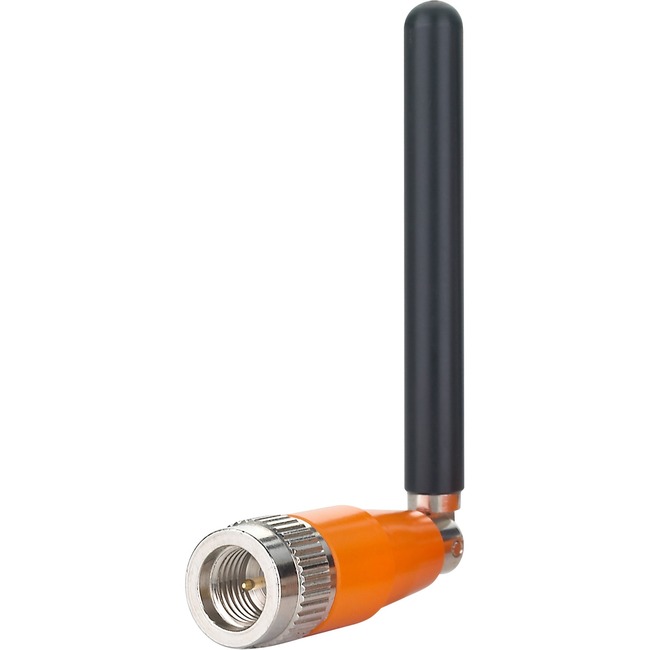

Taoglas TG.08 Cellular/ GPS/ GLONASS/ GALILEO/ BeiDou Monopole Antenna - 698 MHz to 960 MHz, 1710 MHz to 2700 MHz, 1561 MHz, 1575.42 MHz, 1602 MHz - 4 dBi - Cellular Network, GPS, GLONASS, Indoor - Black/Orange - Whip - Omni-directional - SMA Connector
698 MHz to 960 MHz, 1710 MHz to 2700 MHz, 1561 MHz, 1575.42 MHz, 1602 MHz - 4 dBi - Cellular Network, GPS, GLONASS, Indoor - Black/Orange - Whip - Omni-directional - SMA Connector
| Antenna Gain | 4 dBi |
| Directivity | Omni-directional |
| Operating Frequency Range | 1602 MHz |
| Operating Frequency Range | 698 MHz to 960 MHz |
| Operating Frequency Range | 1575.42 MHz |
| Operating Frequency Range | 1561 MHz |
| Operating Frequency Range | 1710 MHz to 2700 MHz |
| Application/Usage | Cellular Network |
| Application/Usage | Indoor |
| Application/Usage | GPS |
| Application/Usage | GLONASS |
| Connector Type | SMA |
| Country of origin | Taiwan |
| Diameter | 0.39" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Whip |
| Height | 2.83" |
| Manufacturer | Taoglas |
| Manufacturer Part Number | TG.08.0113 |
| Manufacturer Website Address | http://www.taoglas.com |
| Marketing Information | The compact TG.08 with hinged rotatable SMA connector is an impressively high efficiency monopole antenna which provides wide coverage among cellular and GNSS frequencies.
With its cellular and GNSS function plus compact design TG.08 can fit and function perfectly with routers vehicle tracking devices telematics devices and remote monitoring systems. It is also ideal for use with cellular modules with Assisted GPS functionality that can be implemented in various devices.
This 72mm long monopole antenna works efficiently from 700MHz to 2700MHz widely covering 4G/3G/2G bands as well as GPS/GLONASS/Galileo /BeiDou. At its maximum efficiency when connected to ground plane it can achieve 73% and 67% at GPS and LTE bands respectively.
As all monopole antennas TG.08 works best while connecting directly to the ground-plane of the device main-board or with the device's metal enclosure.
The robust brass hinge enables TG.08 to be oriented in all directions providing users to maximize performance with minimum effort.
TG.08 the small antenna with surprisingly large efficiency is surely the best candidate in the market for Cellular/GNSS combination terminal antennas. |
| Package type | Bulk |
| Packaged Quantity | 1 |
| Product color | Black/Orange |
| Product Name | TG.08 Cellular/ GPS/ GLONASS/ GALILEO/ BeiDou Monopole Antenna |
| Product Type | Antenna |
| Weight (Approximate) | 2.08 oz |
